6.MEMORY OPERATION BY Series 15 FORMAT PROGRAMMING B-63944EN-1/02

- 304 -

∆

(R)

(F)

∆

(F)

(R)

(F)

(R)

(F)

(R)

U/2

(R) ... Rapid traverse

(F) ... Cutting feed

(R)

∆

i’

e : Return amount (parameter No.5139)

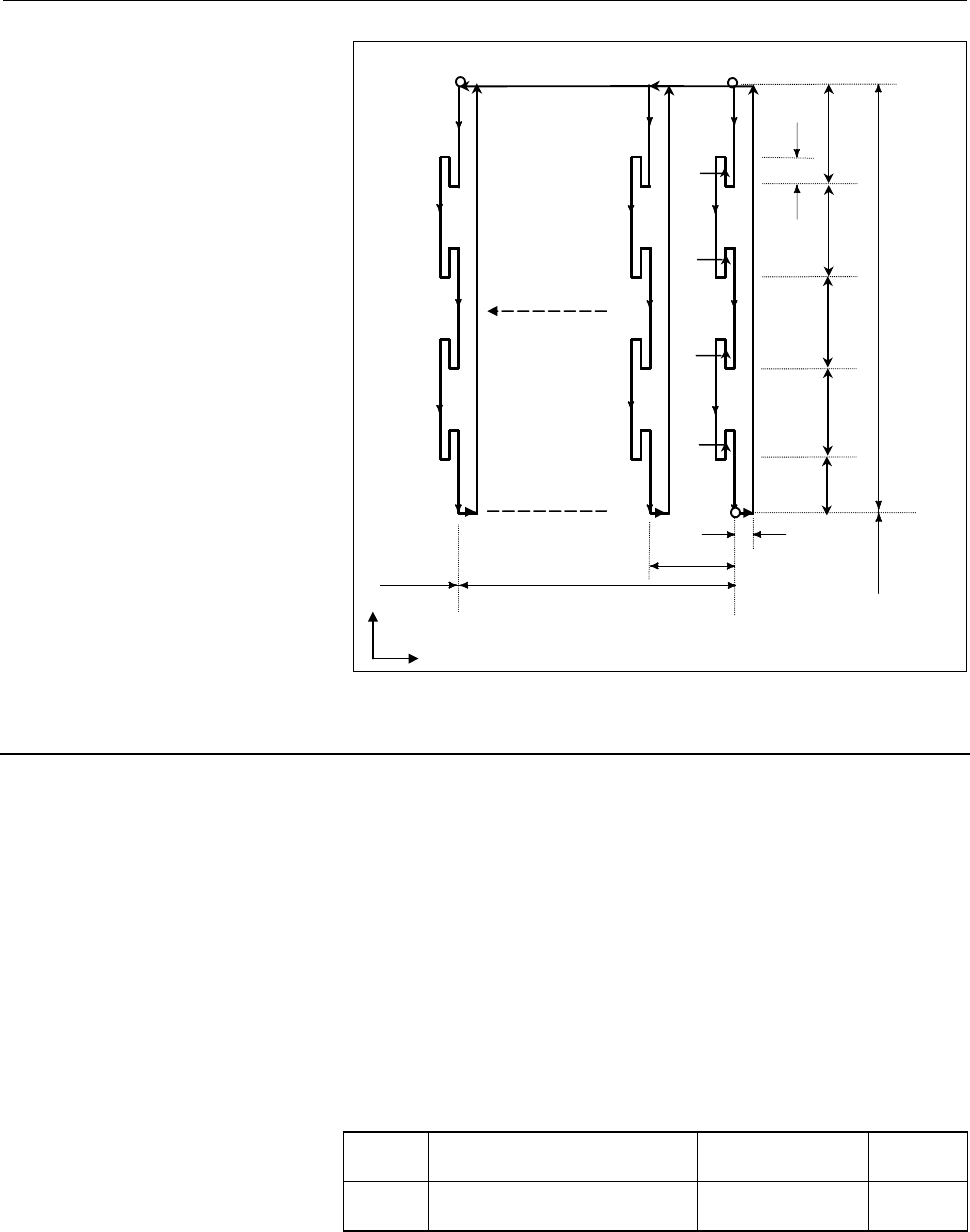

Fig. 6.4.6 (b) Outer diameter/internal diameter drilling cycle

Explanation

- Operations

A cycle operation of cutting by ∆i and return by e is repeated.

When cutting reaches point B, the tool escapes by ∆d. Then, the tool

returns in rapid traverse, moves to the direction of point C by ∆k, and

performs cutting again.

Both G74 and G75 are used for grooving and drilling, and permit the

tool to relief automatically. Four symmetrical patterns are

considered, respectively.

- Return amount (e)

The escaping amount (e) is set in parameter No. 5133.

No. Unit

Diameter/radius

programming

Sign

5139

Depends on the increment

system for the reference axis.

Radius

programming

Not

required

- Tool nose radius compensation

Tool nose radius compensation cannot be applied.
