B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 277 -

- Target figure

Patterns

The following four cutting patterns are considered. All of these

cutting cycles cut the workpiece with moving the tool in parallel to the

first axis on the plane (Z-axis for the ZX plane). The signs of ∆u and

∆w are as follows:

Both linear and

circular interpolation

are possible

U(+)…W(+)

U(+)…W(-)

U(-)…W(+)

U(-)…W(-)

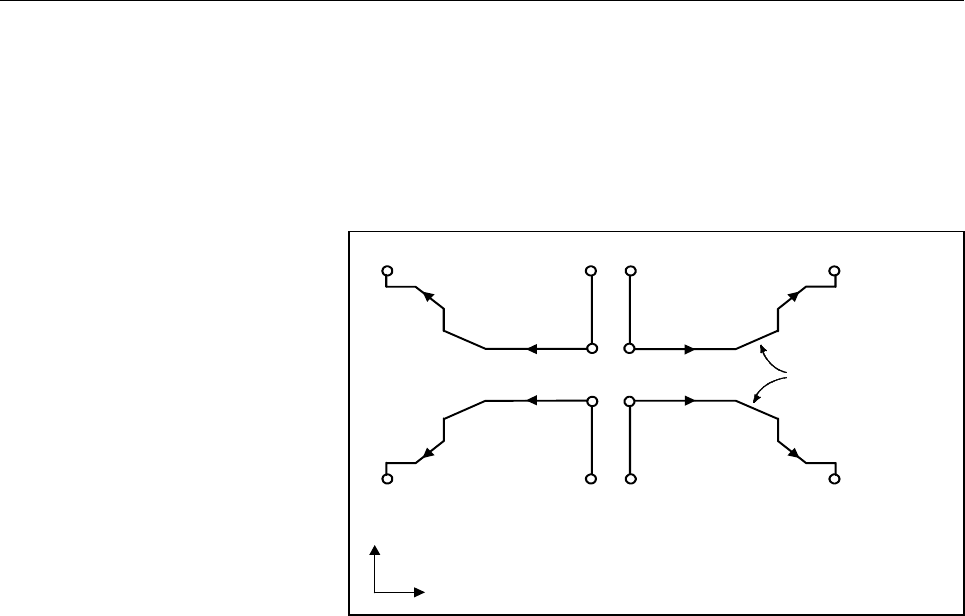

Fig. 6.4.1 (c) Four target figure patterns

Limitation

(1) For U(+), a figure for which a position higher than the cycle start

point is specified cannot be machined.

For U(-), a figure for which a position lower than the cycle start

point is specified cannot be machined.

(2) For type I, the figure must show monotone increase or decrease

along the first and second axes on the plane.

(3) For type II, the figure must show monotone increase or decrease

along the first axis on the plane.

Start block

In the start block in the program for a target figure (block with

sequence number ns in which the path between A and A' is specified),

G00 or G01 must be specified. If it is not specified, alarm PS0065 is

issued.

When G00 is specified, cutting along path A-A' is performed in the

positioning mode. When G01 is specified, cutting along path A-A' is

performed in the linear interpolation mode.

In this start block, also select type I or II.
