4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 54 -

NOTE

1 While both ∆d and ∆u are specified by the same

address, the meanings of them are determined by

the presence of addresses P and Q.

2 The cycle machining is performed by G71

command with P and Q specification.

3 F, S, and T functions which are specified in the

move command between points A and B are

ineffective and those specified in G71 block or the

previous block are effective. M and second

auxiliary functions are treated in the same way as

F, S, and T functions.

4 When an option of constant surface speed control

is selected, G96 or G97 command specified in the

move command between points A and B are

ineffective, and that specified in G71 block or the

previous block is effective.

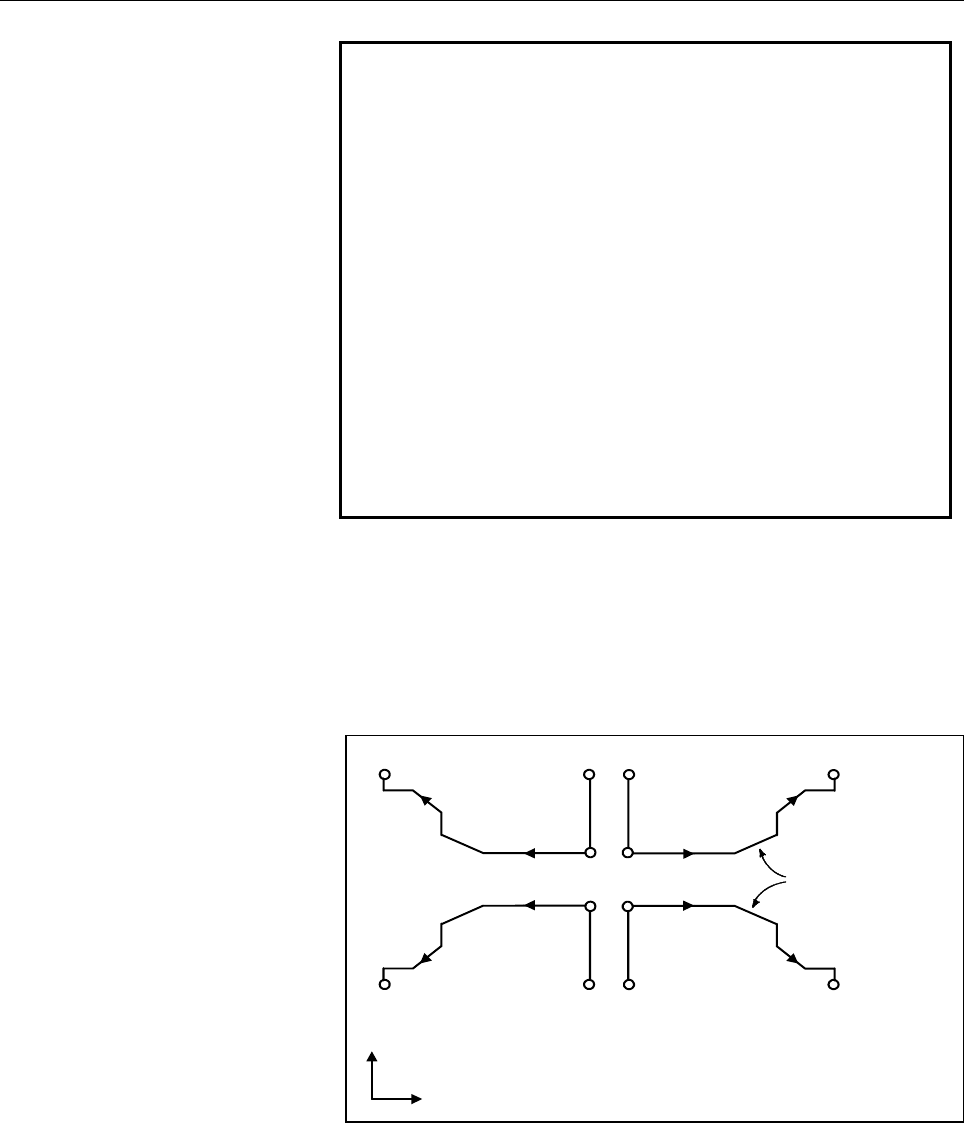

- Target figure

Patterns

The following four cutting patterns are considered. All of these

cutting cycles cut the workpiece with moving the tool in parallel to the

first axis on the plane (Z-axis for the ZX plane). The signs of ∆u and

∆w are as follows:

Both linear and

circular interpolation

are possible

U(+)…W(+)

U(+)…W(-)

U(-)…W(+)

U(-)…W(-)

Fig. 4.2.1 (b) Four target figure patterns
