B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 295 -

Unit

Diameter/radius

programming

Sign

∆i

Depends on the increment

system for the reference

axis.

Radius programming Required

∆k

Depends on the increment

system for the reference

axis.

Radius programming Required

∆u

Depends on the increment

system for the reference

axis.

Depends on

diameter/radius

programming for the

second axis on the plane.

Required

∆w

Depends on the increment

system for the reference

axis.

Depends on

diameter/radius

programming for the first

axis on the plane.

Required

∆

u/2

∆i+∆u/2

∆

∆u/2

Target figure

(F): Cutting feed

(R): Rapid traverse

(R)

(F)

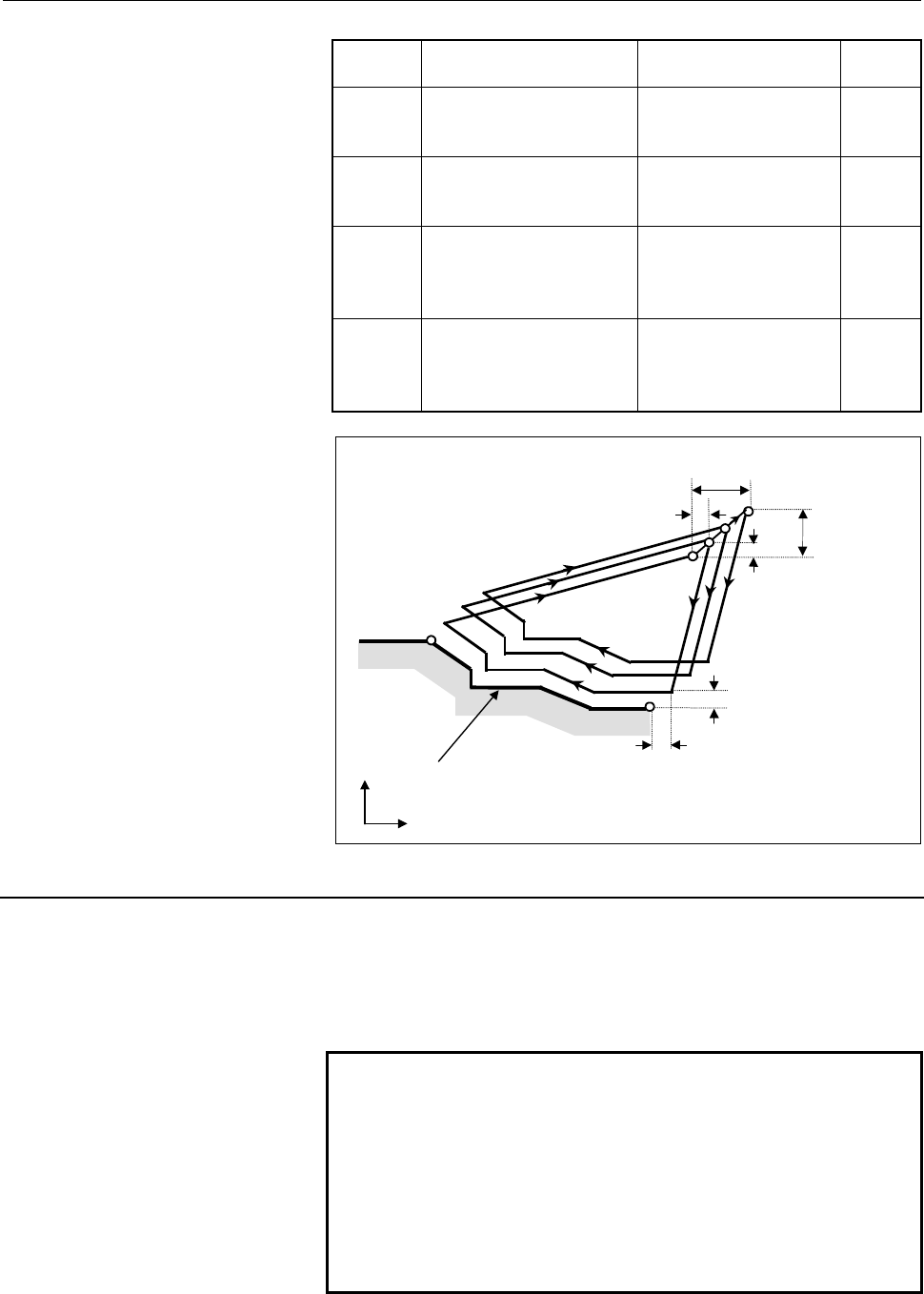

Fig. 6.4.3 (t) Cutting path in pattern repeating

Explanation

- Operations

When a target figure passing through A, A', and B in this order is

given by a program, rough cutting is performed the specified number

of times, with the finishing allowance specified by ∆u/2 and ∆w left.

NOTE

1 After cycle operation terminates, the tool returns to

point A.

2 F, S, and T functions which are specified in the

move command between points A and B are

ineffective and those specified in G73 block or the

previous block are effective. M and second

auxiliary functions are treated in the same way as

F, S, and T functions.
