B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 103 -

4.4.1 FRONT FACE RIGID TAPPING CYCLE (G84) / SIDE FACE

RIGID TAPPING CYCLE (G88)

Controlling the spindle motor in the same way as a servo motor in

rigid mode enables high-speed tapping.

Format

G84 X (U)_ C (H)_ Z (W)_ R_ P_ F_ K_ M_ ;

G88 Z (W)_ C (H)_ X (U)_ R_ P_ F_ K_ M_ ;

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

K_ : Number of repeats (When it is needed.)

M_ : M code for C-axis clamp (when it is needed.)

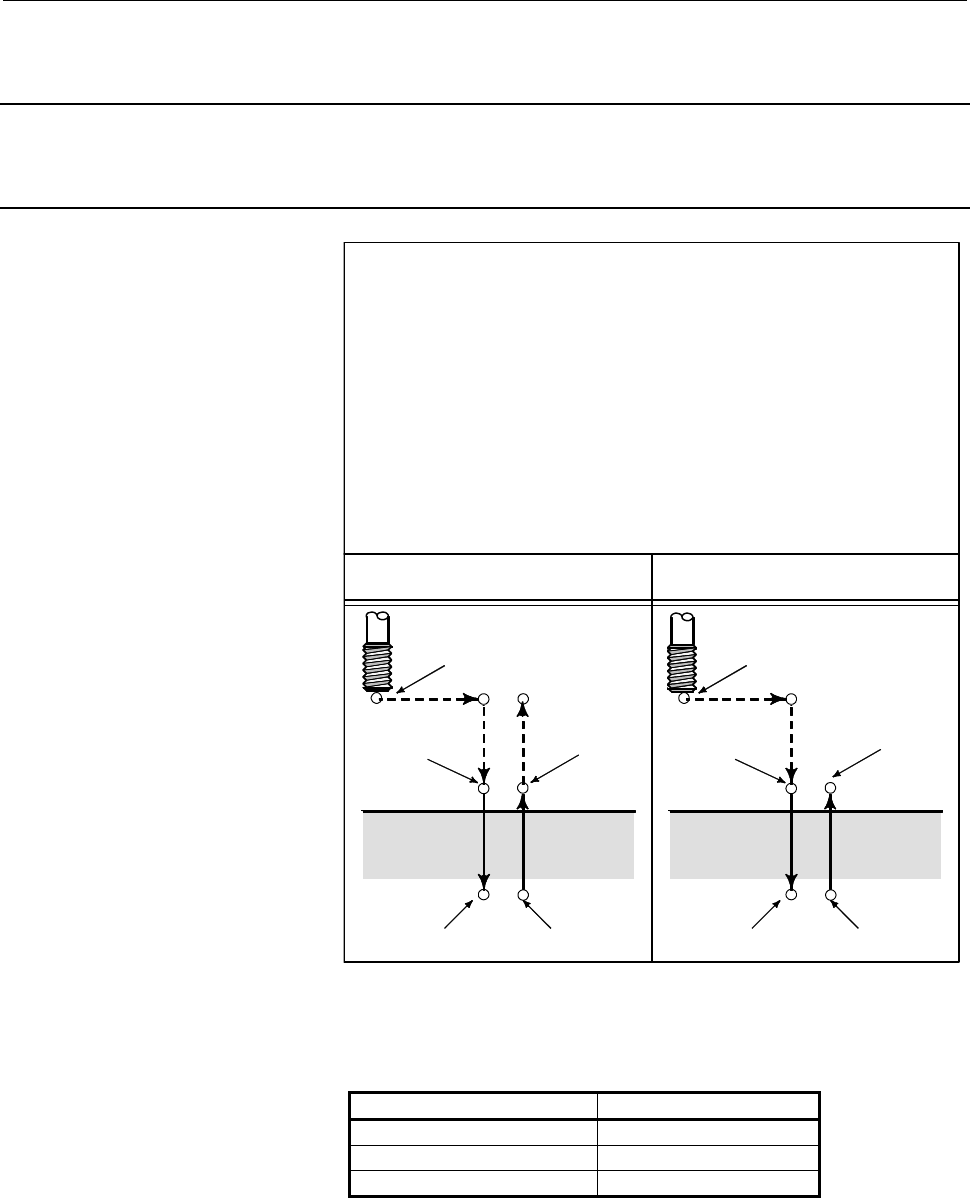

G84 or G88

(

G98

)

G84 or G88

(

G99

)

Initial level

Point R

Spindle stop

Spindle CW

Point Z

Point R level

Operation 2

Operation 1

Operation 6

Operation 3

Operation 4

Operation 5

Spindle stop Spindle CCW

Point R

Spindle CW

Point Z

Point R level

Spindle stop Spindle CCW

Spindle stop

P2 performs dwelling of C-axis unclamp. (The dwell time is set in

parameter No. 5111.)

In front face rigid tapping (G84), the plane first axis is used as the

drilling axis and the other axes are used as positioning axes.

Plane selection Drilling axis

G17 Xp-Yp plane Xp

G18 Zp-Xp plane Zp

G19 Yp-Zp plane Yp

Xp: X axis or its parallel axis

Yp: Y axis or its parallel axis

Zp: Z axis or its parallel axis
