5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 166 -

1. G40 has been commanded.

2. 0 has been commanded as the offset number for cutter

compensation (T code).

When performing offset cancel, circular arc commands (G02 and G03)

and involute commands (G02.2 and G03.2) are not available. If

these commands are specified, an alarm PS0034) is generated and the

tool stops. In the offset cancel, the control executes the instructions

in that block and the block in the cutter compensation buffer.

In the meantime, in the case of a single block mode, after reading one

block, the control executes it and stops. By pushing the cycle start

button once more, one block is executed without reading the next

block.

Then the control is in the cancel mode, and normally, the block to be

executed next will be stored in the buffer register and the next block is

not read into the buffer for cutter compensation.

Offset cancel mode

Offset mode

Start up

Offset mode cancel

(G41/G42)

(G40/T0)

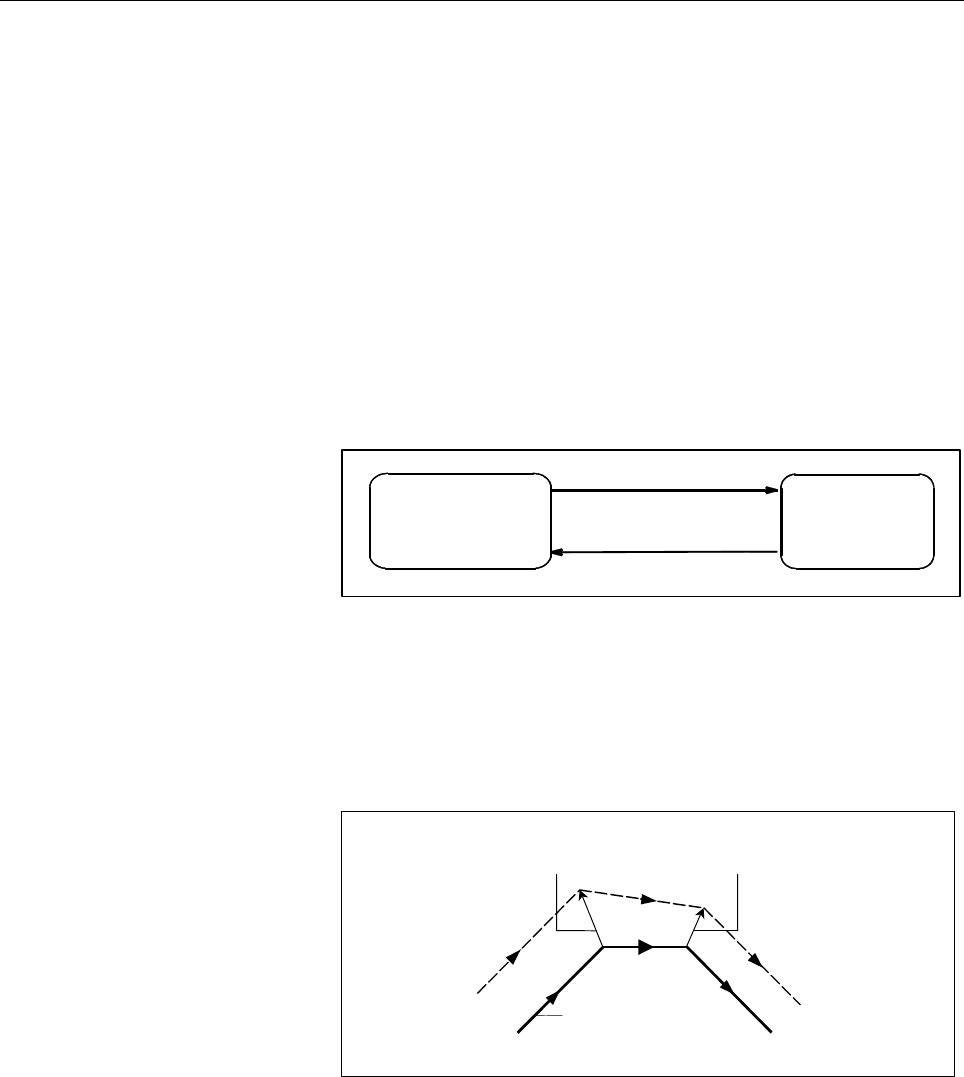

Fig. 5.3 (b) Changing the offset mode

- Change of the cutter compensation value

In general, the cutter compensation value shall be changed in the

cancel mode, when changing tools. If the cutter compensation value

is changed in offset mode, the vector at the end point of the block is

calculated for the new cutter compensation value.

Calculated from the cutter

compensation value in the block

Calculated from the cutter

compensation value in the block N7

Programmed path

Fig. 5.3 (c) Changing the cutter compensation value
