5.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-2/02

- 94 -

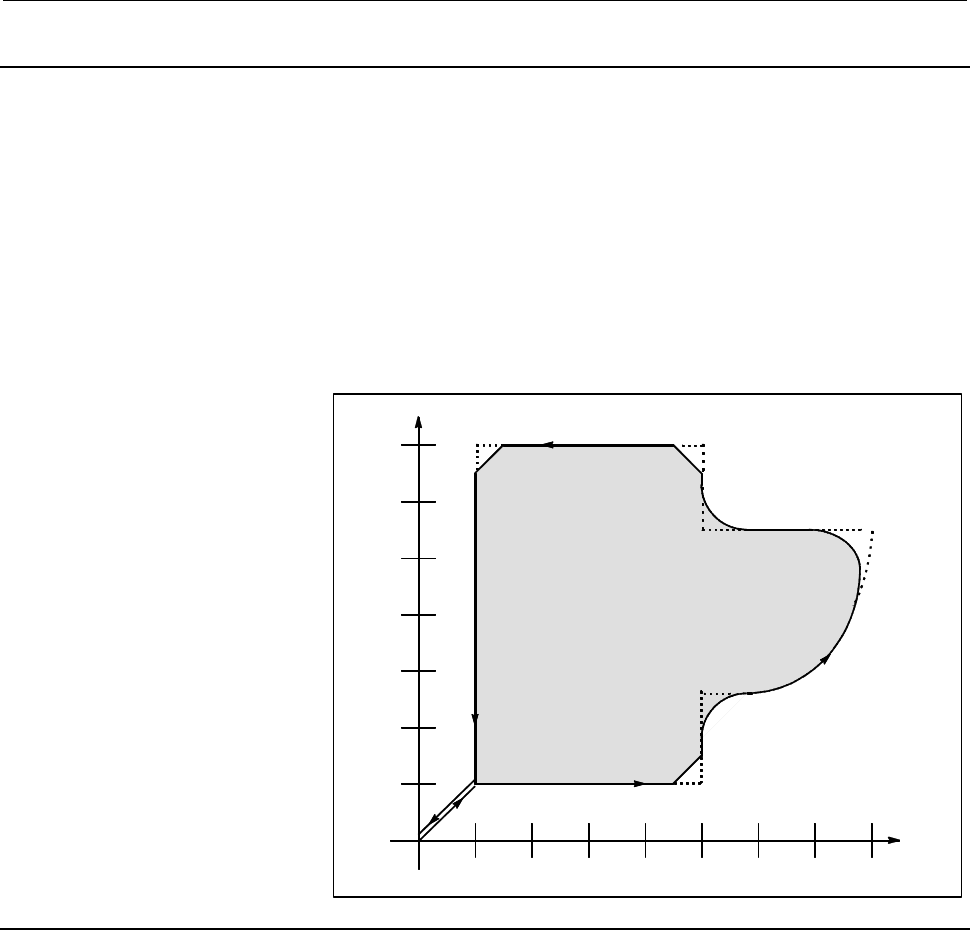

Example

N001 G92 G90 X0 Y0 ;

N002 G00 X10.0 Y10.0 ;

N003 G01 X50.0 F10.0 ,C5.0 ;

N004 Y25.0 ,R8.0 ;

N005 G03 X80.0 Y50.0 R30.0 ,R8.0 ;

N006 G01 X50.0 ,R8.0 ;

N007 Y70.0 ,C5.0 ;

N008 X10.0 ,C5.0 ;

N009 Y10.0 ;

N010 G00 X0 Y0 ;

N011 M0;

10.0 20.0 30.0 40.0 50.0 80.070.060.0

10.0

20.0

30.0

40.0

50.0

60.0

70.0

N001

N002

N003

N005

N004

N006

N007

N008

N009

N010

N011

Limitation

- Invalid specification

Chamfering (,C) or corner R (,R) specified in a block other than a

linear interpolation (G01) or circular interpolation (G02 or G03) block

is ignored.

- Next block

A block specifying chamfering or corner R must be followed by a

block that specifies a move command using linear interpolation (G01)

or circular interpolation (G02 or G03). If the next block does not

contain these specifications, alarm PS0051 is issued.

Between these blocks, however, only one block specifying G04

(dwell) can be inserted. The dwell is executed after execution of the

inserted chamfering or corner R block.
