6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 178 -

In such a case, it is possible to prevent overcutting by specifying a

command with the exactly the same direction as the advance direction

immediately before movement along the Z axis beforehand, after the

tool is moved along the Z axis using the above rule.

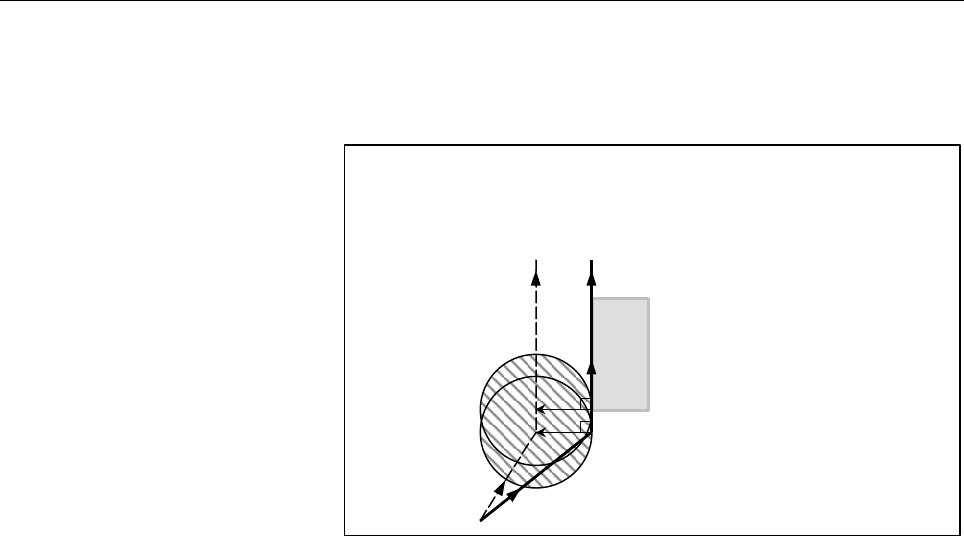

N1 G91 G00 G41 X500.0 Y400.0 D1 ;

N2 Y100.0 ;

N3 Z-250.0 ;

N5 G01 Z-50.0 F100 ;

N6 Y1000.0 F200 ;

Workpiece

fter compensation

N3, N5 : Move command for the Z axis (2 blocks)

As the block with sequence No. N2 has the move command in the

same direction as that of the block with sequence No. N6, the correct

compensation is performed.

Alternatively, it is possible to prevent overcutting in the same way by

specifying an IJ type vector with the same direction as the advance

direction in the start-up block, as in N1 G91 G00 G41 X500. Y500. I0

J1 D1;, after the tool has moved along the Z axis.
