3.INTERPOLATION FUNCTION PROGRAMMING B-63944EN-2/02

- 24 -

3.1.1 Automatic Speed Control for Involute Interpolation

This function automatically overrides the programmed feedrate in two

different ways during involute interpolation. With this function, a

favorable cutting surface can be formed with high precision.

• Override in cutter compensation mode

• Override in the vicinity of basic circle

- Override in cutter compensation mode

When cutter compensation is applied to involute interpolation, control

is exercised in ordinary involute interpolation so that the tangential

feedrate on the tool-center path always keeps the specified feedrate.

Under the control, the actual cutting feedrate (feedrate around the

perimeter of the tool (cutting point) on the path specified in the

program) changes because the curvature of the involute curve changes

every moment.

If the tool is offset in the inward direction of the involute curve in

particular, the actual cutting feedrate becomes higher than the

specified feedrate as the tool gets nearer to the base circle.

For smooth machining, it is desirable to control the actual cutting

feedrate so that the feedrate keeps the specified feedrate. This

function calculates an appropriate override value for the

ever-changing curvature of the involute curve in the involute

interpolation mode after cutter compensation. The function also

controls the actual cutting feedrate (tangential feedrate at the cutting

point) so that it always keeps the specified feedrate.

Path specified in

the program

Base

circle

Cutting point

Rcp

Rofs

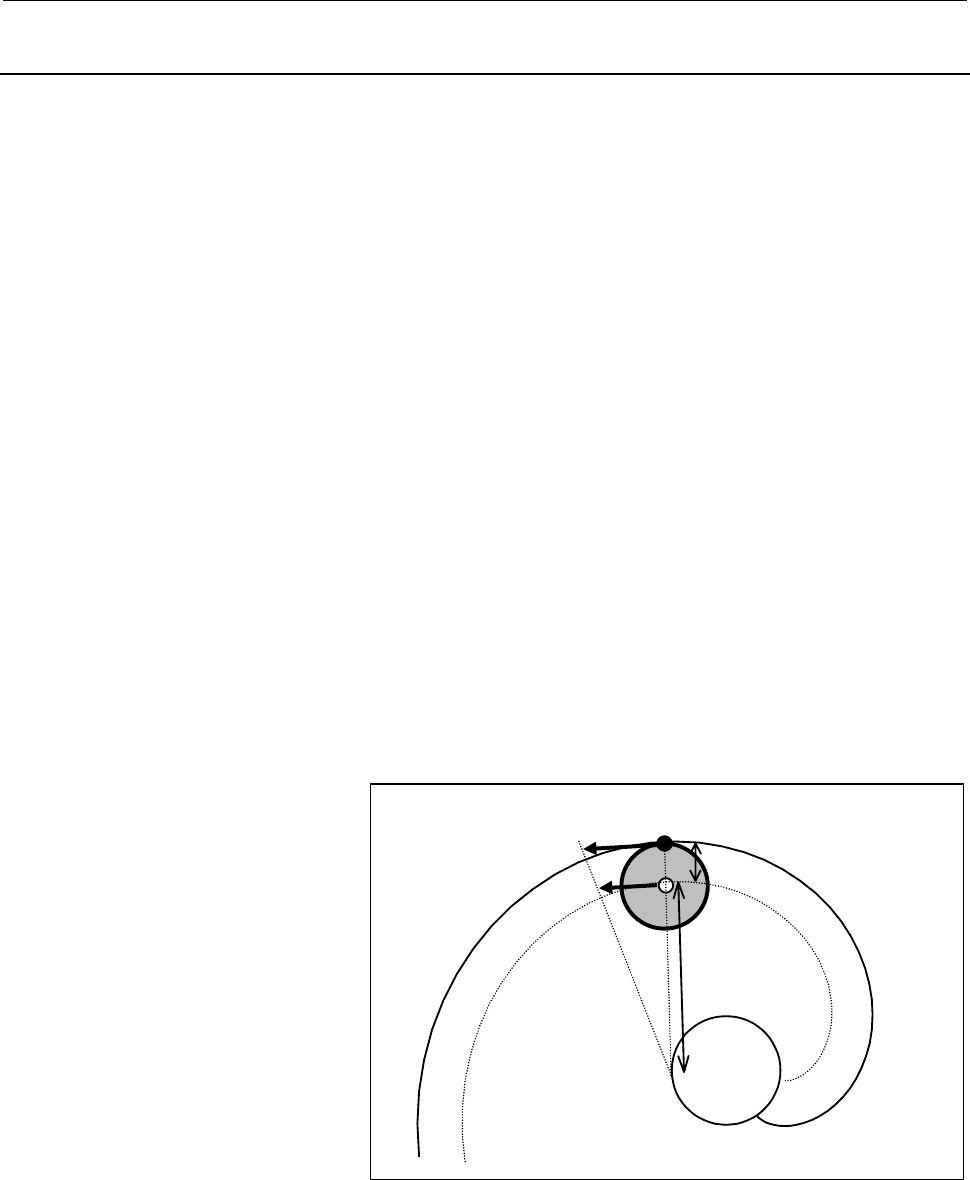

Fig. 3.1 (d) Override for inward offset by cutter compensation
