1.SETTING AND DISPLAYING DATA OPERATION B-63944EN-2/02

- 268 -

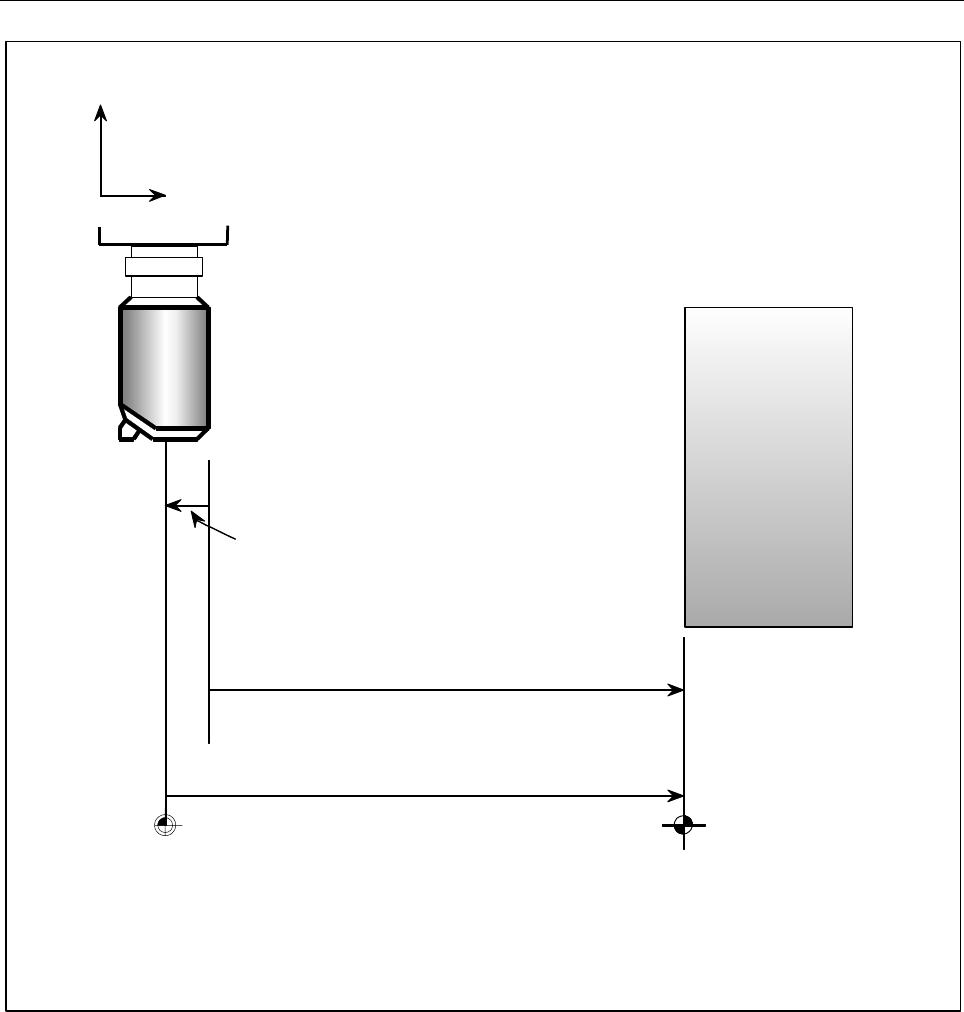

Workpiece

OFSW

OFSR : Cutter compensation value for the tool used to measure the workpiece origin offset

Xm : Amount of movement from the machine zero point to the workpiece origin when measured with a tool

having a length of OFSR

OFSW : Workpiece origin offset

OFSR

Workpiece origin

Machine zero point

Tool

As can be seen from the above figure, the workpiece origin offset

can be calculated from the following formula:

OFSW = Xm - OFSR

Pay particularly careful attention, however, to the sign of the

cutter compensation value OFSR:

The sign of OFSR is - when the measurement surface is located

in the positive (+) direction relative to the tool center.

The sign of OFSR is + when the measurement surface is located

in the negative (-) direction relative to the tool center.
