B-63944EN-2/02 OPERATION 1.SETTING AND DISPLAYING DATA

- 265 -

Explanation

- Z-axis workpiece origin offset

Definitions 1 and 2, described in "Definition of tool length

compensation" in Explanations for measuring the tool length

compensation, also apply to the general concept of the Z-axis

workpiece origin offset, as follows:

(1) Definition 1

In definition 1, the Z-axis workpiece origin offset is defined as

the distance from the machine zero point to the origin of the

workpiece coordinate system.

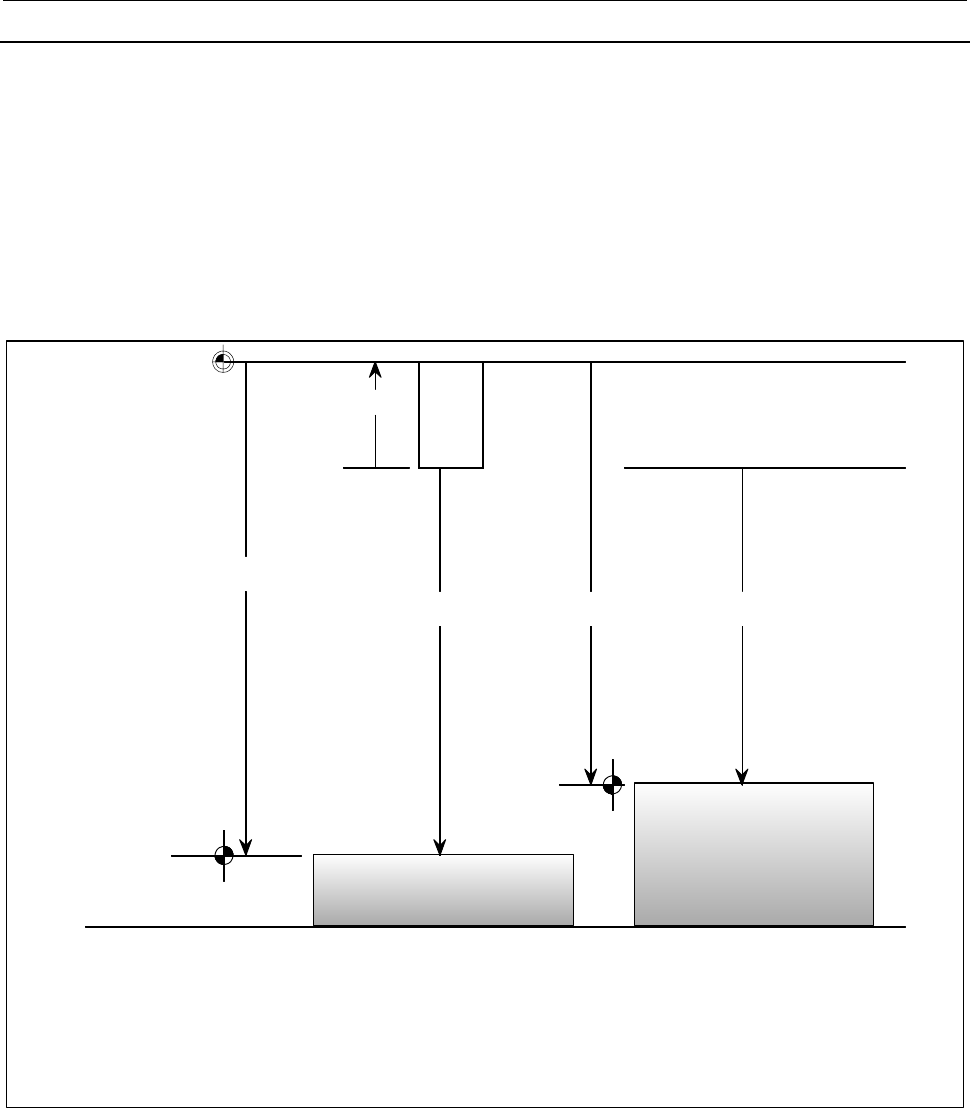

Workpiece (G55)

Tool

Machine zero point

OFSL

OFSWG54

ZmG54

Work

iece ori

(G55)

Workpiece origin

(G54)

Workpiece (G54)

OFSL : Tool length compensation for the tool used to measure the workpiece origin offset

ZmG54 : Amount of movement from the machine zero point to the origin of the G54 workpiece

when measured with a tool having a length of OFSL

ZmG55 : Amount of movement from the machine zero point to the origin of the G55 workpiece

when measured with a tool having a length of OFSL

OFSWG54 : Workpiece origin offset for the G54 workpiece

OFSWG55 : Workpiece origin offset for the G55 workpiece

OFSWG55 ZmG55

As can be seen from the above figure, the Z-axis workpiece

origin offset can be calculated from the following formula:

OFSW=Zm-OFSL

where

OFSW : Workpiece origin offset

OFSL : Tool length compensation for the tool used to measure

the workpiece origin offset

Zm : Amount of movement from the machine zero point to

the workpiece origin when measured with a tool

having a length of OFSL
