B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 153 -

- When it is exceptional

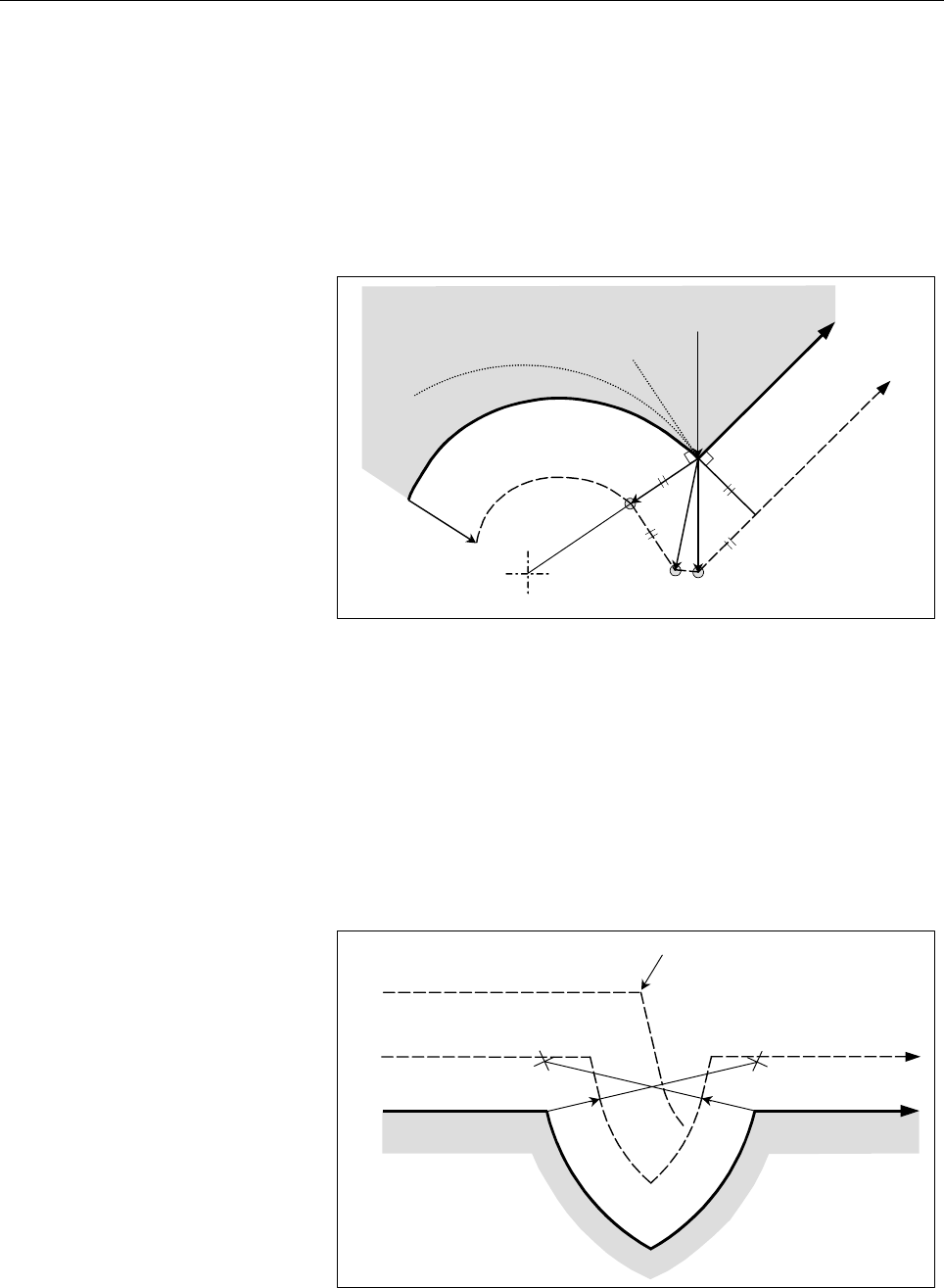

End point for the arc is not on the arc

If the end of a line leading to an arc is not on the arc as illustrated

below, the system assumes that the cutter compensation has been

executed with respect to an imaginary circle that has the same center

as the arc and passes the specified end point. Based on this

assumption, the system creates a vector and carries out compensation.

The same description applies to tool movement between two circular

paths.

Tool center path

Programmed path

Center of the arc

Imaginary circle

End the arc

Work-

piece

There is no inner intersection

If the cutter or tool nose radius compensation value is sufficiently

small, the two circular tool center paths made after compensation

intersect at a position (P). Intersection P may not occur if an

excessively large value is specified for cutter or tool nose radius

compensation. When this is predicted, PS0033 occurs at the end of

the previous block and the tool is stopped.

In the Example shown below, tool center paths along arcs A and B

intersect at P when a sufficiently small value is specified for cutter or

tool nose radius compensation. If an excessively large value is

specified, this intersection does not occur.

When the cutter or tool nose radius

compensation value is small

When the cutter or tool nose radius

compensation value is large

Programmed path

larm occurs and the tool stops

Center of the arc ACenter of the arc B

rc A

rc B
