B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 77 -

5.2.1 Rigid Tapping (G84)

When the spindle motor is controlled in rigid mode as if it were a

servo motor, a tapping cycle can be sped up.

Format

G84 X_ Y_ Z_ R_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole and the

position of the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of the hole and at point R when a return

is made

F_ : Cutting feedrate

K_ : Number of repeats (Only for necessity of repeat)

G84.2 X_ Y_ Z_ R_ P_ F_ L_ ;

(Series 15 format)

L_ : Number of repeats (only for necessity of repeat)

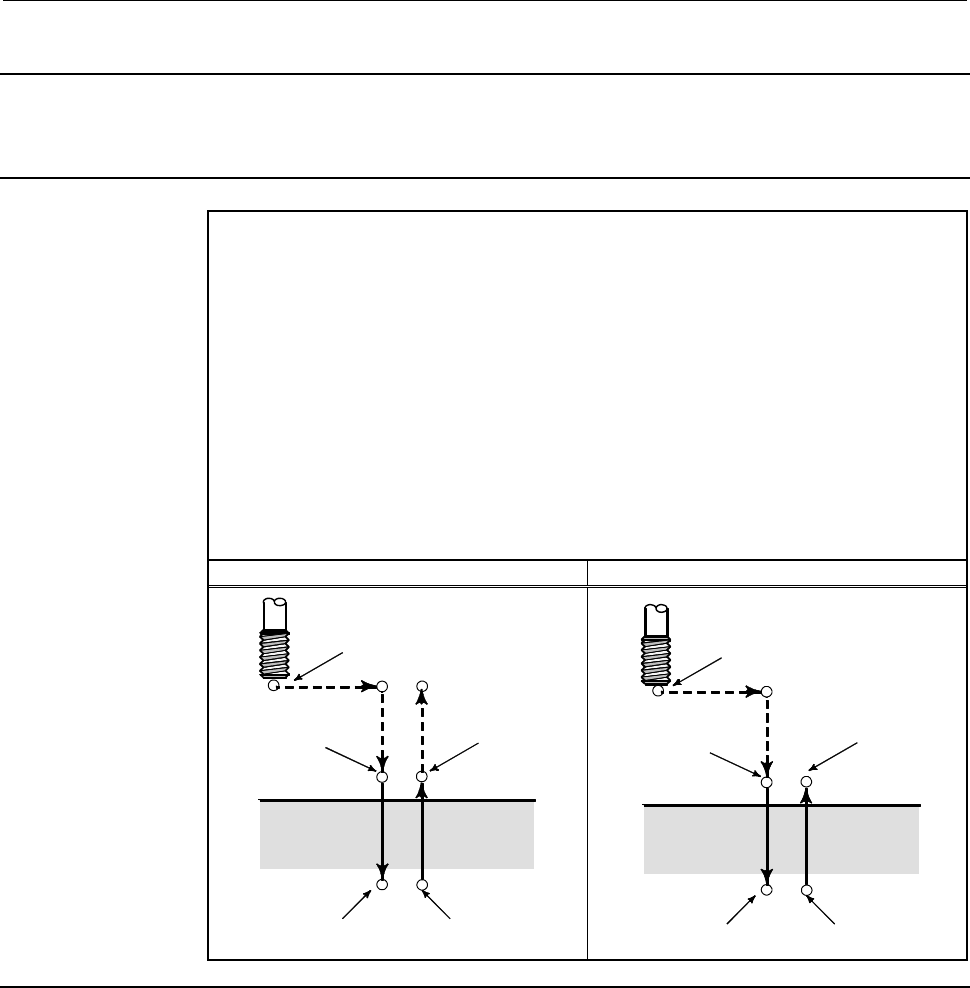

G84 (G98) G84 (G99)

Initial level

Point R

Spindle

stop

Spindle CW

Point Z

Point R level

Operation 2

Operation 1

Operation 6

Operation 3

Operation 4

Operation 5

Spindle stop Spindle CCW

Spindle stop

Point R

Spindle CW

Point Z

Point R level

Spindle stop Spindle CCW

Spindle stop

Explanation

After positioning along the X- and Y-axes, rapid traverse is performed

to point R.

Tapping is performed from point R to point Z. When tapping is

completed, the spindle is stopped and a dwell is performed. The

spindle is then rotated in the reverse direction, the tool is retracted to

point R, then the spindle is stopped. Rapid traverse to initial level is

then performed.

While tapping is being performed, the feedrate override and spindle

override are assumed to be 100%. Feedrate override can be enabled

by setting, however.
