B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 159 -

- Command canceling the offset vector temporarily

During offset mode, if G92 (workpiece coordinate system setting) or

G52 (local coordinate system setting) is commanded, the offset vector

is temporarily cancelled and thereafter offset mode is automatically

restored.

In this case, without movement of offset cancel, the tool moves

directly from the intersecting point to the commanded point where

offset vector is canceled.

Also when restored to offset mode, the tool moves directly to the

intersecting point.

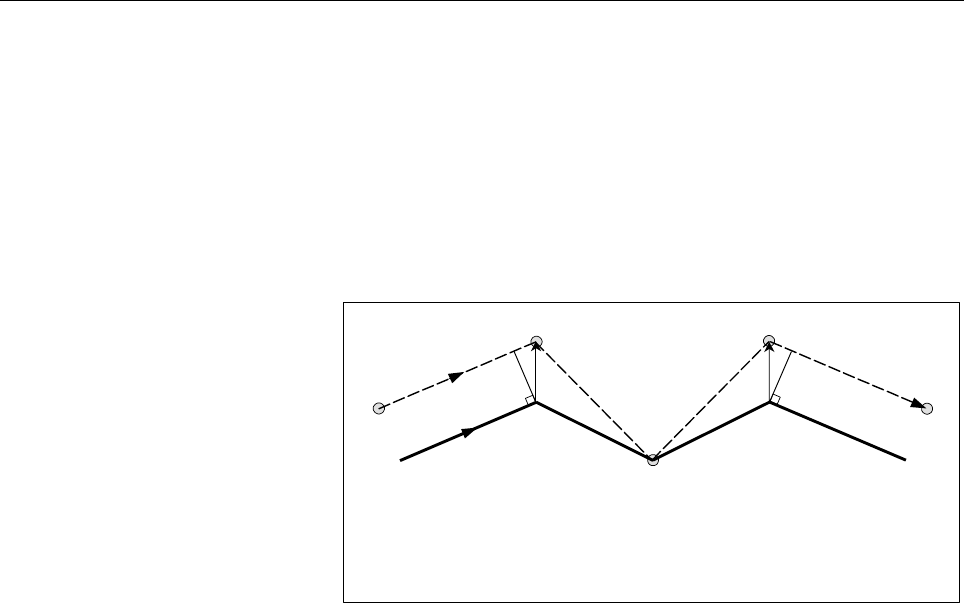

Tool center path

Programmed path

G92 block

(G41)

N5 G01 X700.0 Y300.0 ;

N6 X600.0 Y-300.0 ;

N7 G92 X200.0 Y100.0 ;

N8 G01 X800.0 Y400.0 ;

Before specifying G28 (reference position return), G29 (movement

from reference position), G30 (second, third, and fourth reference

position return), G30.1 (floating reference position return), and G53

(machine coordinate system selection) commands, cancel offset mode,

using G40. If an attempt is made to specify any of the commands in

offset mode, the offset vector temporarily disappears.
