B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 207 -

6.11 COORDINATE SYSTEM ROTATION (G68, G69)

A programmed shape can be rotated. By using this function it

becomes possible, for example, to modify a program using a rotation

command when a workpiece has been placed with some angle rotated

from the programmed position on the machine. Further, when there is

a pattern comprising some identical shapes in the positions rotated

from a shape, the time required for programming and the length of the

program can be reduced by preparing a subprogram of the shape and

calling it after rotation.

ngle of rotation

Center of rotation

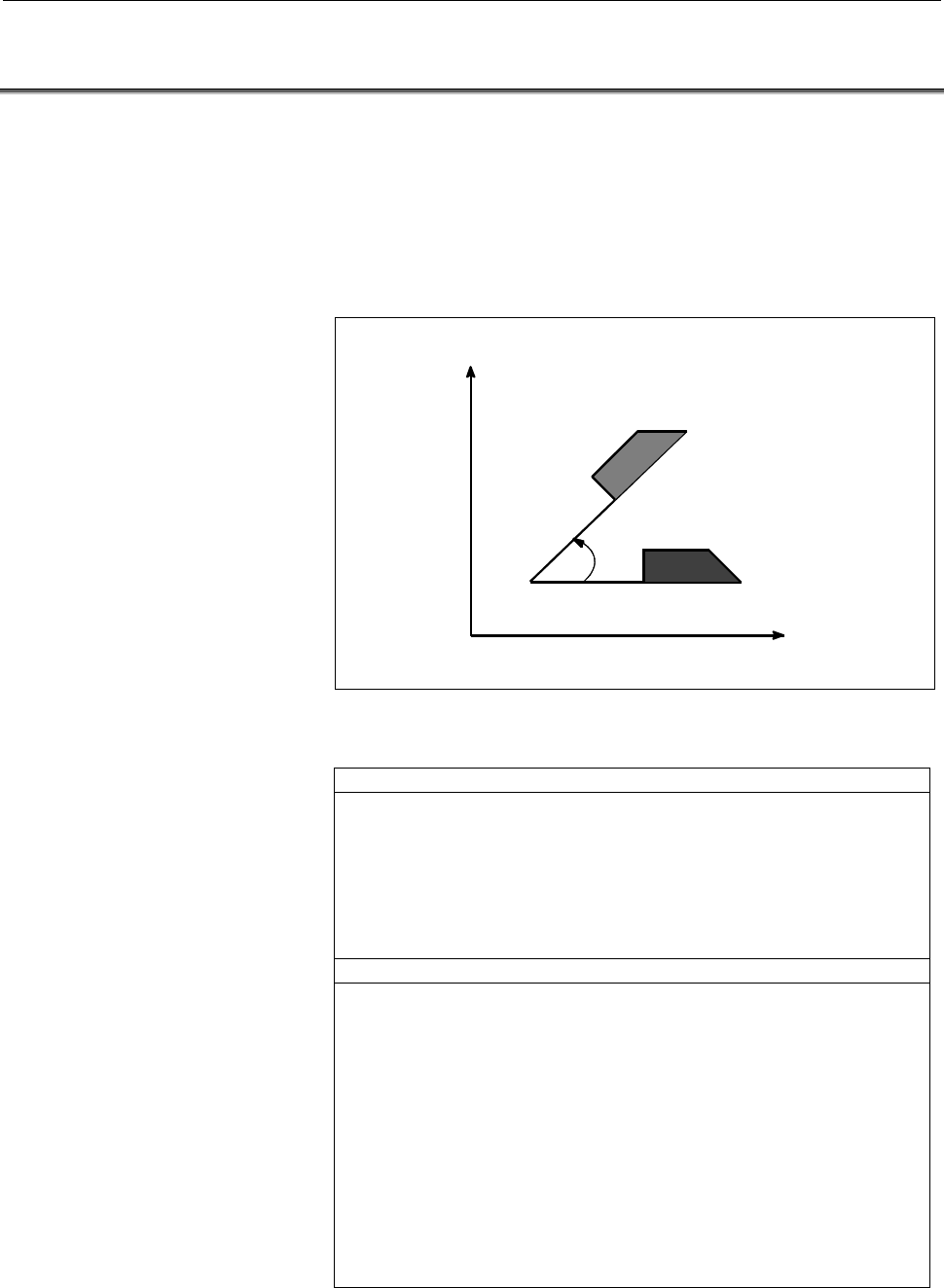

Fig. 6.11 (a) Coordinate system rotation

Format





















G68α68α_β_

G19

G18

G17

Start rotation of a coordinate system.

Coordinate system rotation mode

(The coordinate system is rotated.)

G69 ;

Coordinate system rotation cancel command

Meaning of command

G17 (G18 or G19) :

Select the plane in which contains the figure

to be rotated.

α_β_

Absolute programming for two of the X_, Y_, and Z_ axes that

correspond to the current plane selected by a command (G17,

G18, or G19). The command specifies the coordinates of the

center of rotation for the values specified subsequent to G68

Angular displacement with a positive value indicates counter

clockwise rotation. Bit 0 of parameter No. 5400 selects whether

the specified angular displacement is always considered an

absolute value or is considered an absolute or incremental

value depending on the specified G code (G90 or G91).

Least input increment :

0.001 deg

Valid data range :

-360,000 to 360,000
