3.INTERPOLATION FUNCTION PROGRAMMING B-63944EN-2/02

- 20 -

Explanation

Involute curve machining can be performed by using involute

interpolation. Involute interpolation ensures continuous pulse

distribution even in high-speed operation in small blocks, thus

enabling smooth and high-speed machining. Moreover, machining

programs can be created more easily, and the size of machining

programs can be reduced.

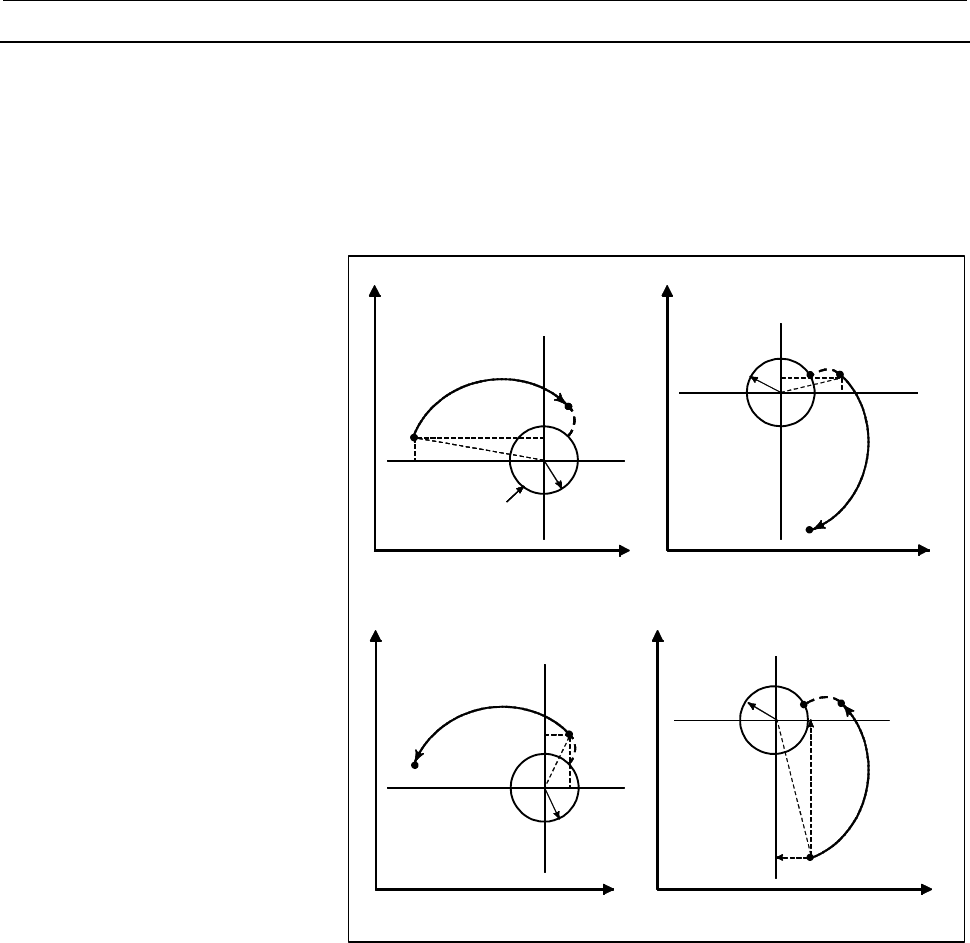

Base circle

Start

point

End point

Clockwise involute interpolation (G02.2)

Start point

End

point

End point

Start point

Counterclockwise involute interpolation (G03.2)

Fig. 3.1 (a) Actual movement

- Involute curve

An involute curve on the X-Y plane is defined as follows ;

X (θ) = R [cos θ + (θ - θ

) sin θ] + X

Y (θ) = R [sin θ - (θ - θ

) cos θ] + Y

where,

, Y

: Coordinates of the center of a base circle

R : Base circle radius

: Angle of the start point of an involute curve

θ : Angle of the point where a tangent from the current

position to the base circle contacts the base circle

X (θ), Y (θ) : Current position on the X-axis and Y-axis
