B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 69 -

5.1.12 Boring Cycle (G88)

This cycle is used to bore a hole.

Format

G88 X_ Y_ Z_ R_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feed rate

K_ : Number of repeats (if required)

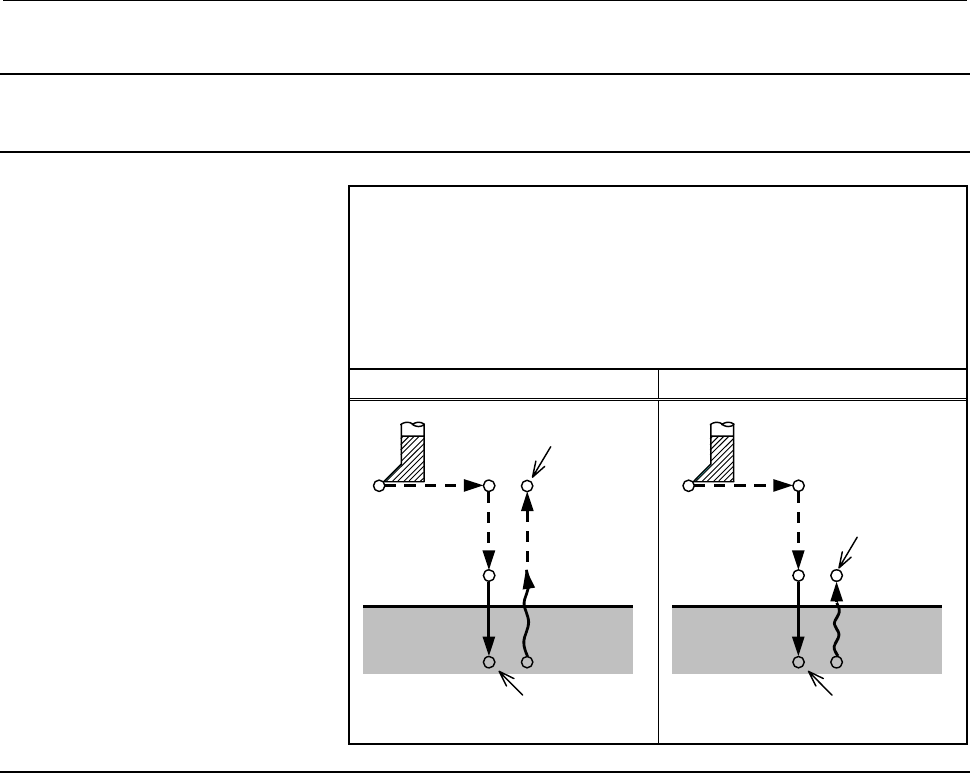

G88 (G98) G88 (G99)

Spindle CW

Initial level

Point R

Point Z

Spindle stop

after dwell

Spindle CW

Point R level

Point R

Point Z

Spindle stop

after dwell

Explanation

- Operations

After positioning along the X- and Y-axes, rapid traverse is performed

to point R. Boring is performed from point R to point Z.

When boring is completed, a dwell is performed at the bottom of the

hole, then the spindle is stopped and enters the hold state. At this

time, you can switch to the manual mode and move the tool manually.

Any manual operations are available; it is desirable to finally retract

the tool from the hole for safety, though.

At the restart of machining in the DNC operation or memory mode,

the tool returns to the initial level or point R level according to G98 or

G99 and the spindle rotates clockwise. Then, operation is restarted

according to the programmed commands in the next block.

- Spindle rotation

Before specifying G88, use an auxiliary function (M code) to rotate

the spindle.
