6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 154 -

- When the center of the arc is identical with the start point or the end point

If the center of the arc is identical with the start point or end point,

PS0041 is displayed, and the tool will stop at the start point of the

preceding block of the arc.

(G41)

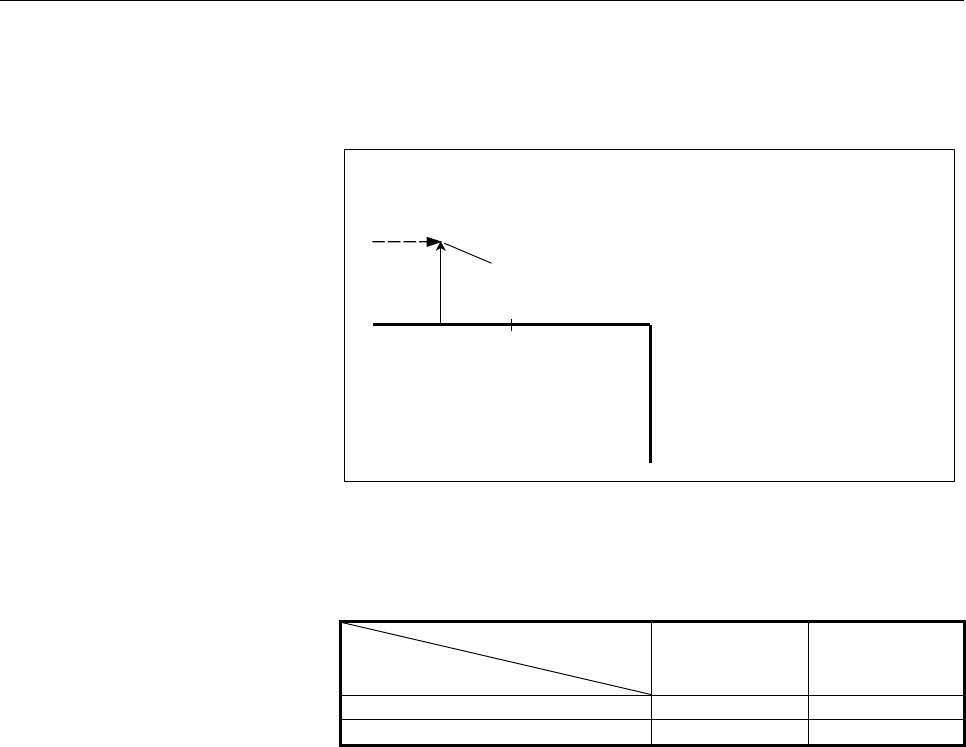

N5 G91 G01 X50.0 ;

N6 X50.0 ;

N7 G02 X100.0 I0 J0 ;

N8 G01 Y-100.0 ;

larm is displayed and the

tool stops

Programmed path

Tool center path

N6 N7

- Change in the offset direction in the offset mode

The offset direction is decided by G codes (G41 and G42) for cutter or

tool nose radius compensation and the sign of the compensation value

as follows.

Sign of compensation

G code

+ –

G41 Left side offset Right side offset

G42 Right side offset Left side offset

The offset direction can be changed in the offset mode. If the offset

direction is changed in a block, a vector is generated at the

intersection of the tool center path of that block and the tool center

path of a preceding block.

However, the change is not available in the start-up block and the

block following it.
