5.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-2/02

- 66 -

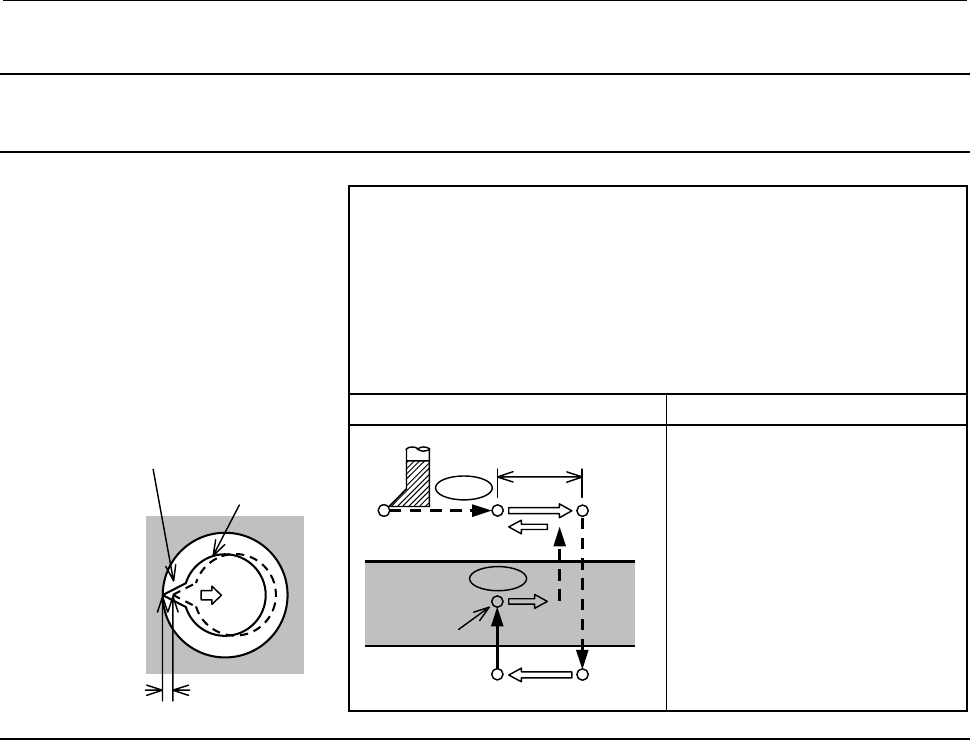

5.1.11 Back Boring Cycle (G87)

This cycle performs accurate boring.

Format

G87 X_ Y_ Z_ R_ Q_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R

Q_ : Shift amount at the bottom of a hole

P_ : Dwell time at the bottom of a hole

F_ : Cutting feed rate

K_ : Number of repeats (if required)

G87 (G98) G87 (G99)

Spindle CW

Initial

level

Point R

Point Z

OSS

Spindle CW

Not used

Explanation

After positioning along the X- and Y-axes, the spindle is stopped at

the fixed rotation position. The tool is moved in the direction

opposite to the tool nose, positioning (rapid traverse) is performed to

the bottom of the hole (point R).

The tool is then shifted in the direction of the tool nose and the spindle

is rotated clockwise. Boring is performed in the positive direction

along the Z-axis until point Z is reached.

At point Z, the spindle is stopped at the fixed rotation position again,

the tool is shifted in the direction opposite to the tool nose, then the

tool is returned to the initial level. The tool is then shifted in the

direction of the tool nose and the spindle is rotated clockwise to

proceed to the next block operation.

- Spindle rotation

Before specifying G87, use an auxiliary function (M code) to rotate

the spindle.

If drilling is continuously performed with a small value specified for

the distance between the hole position and point R level or between

the initial level and point R level, the normal spindle speed may not be

reached at the start of hole cutting operation. In this case, insert a

dwell before each drilling operation with G04 to delay the operation,

without specifying the number of repeats for K. For some machines,

the above note may not be considered. Refer to the manual provided

by the machine tool builder.

Shift amount q

Spindle orientation

Tool
