B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 181 -

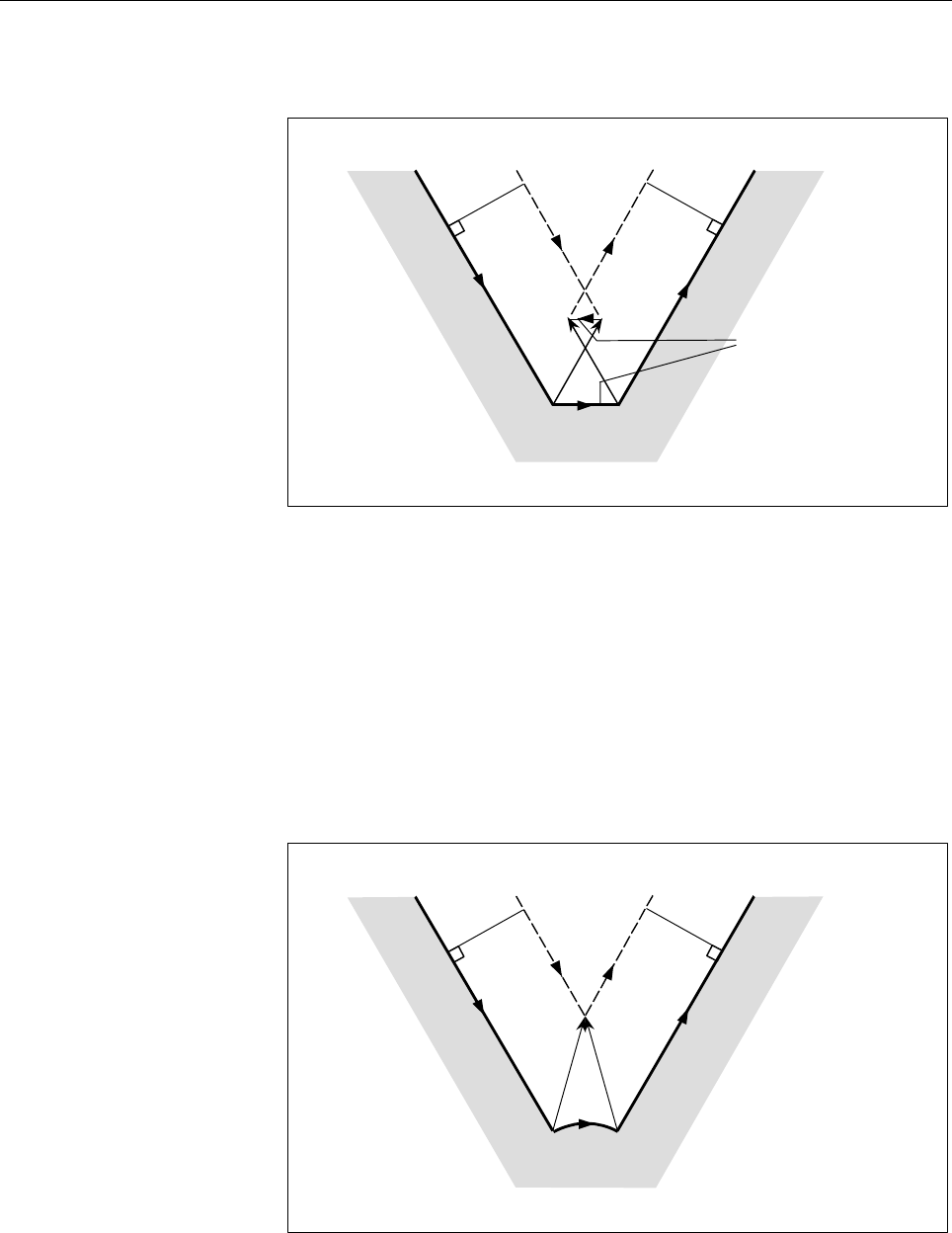

Example of interference standard <1>

(If the block 1 end-point vector intersects with the block 2 end-point

vector)

Programmed path

Tool center path

The directions of

these two paths are

different (180

Block

- Interference reference <2> (circular angle check)

In a check on three adjacent blocks, that is, a check on the

compensation vector group calculated on (block 1 - block 2) and the

compensation vector group calculated on (block 2 - block 3), if block

2 is circular, a check is performed on the circular angle between the

start and end points of the programmed path and the circular angle of

the start and end point of the post-compensation path, in addition to

direction check <1>. If the difference is 180

or greater, the blocks

are judged to interfere. This is called a circular angle check.

Example of <2> (if block 2 is circular and the start point of the

post-compensation arc coincide with the end point)

Programmed path

Tool center path

Block

Programmed path
