B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 187 -

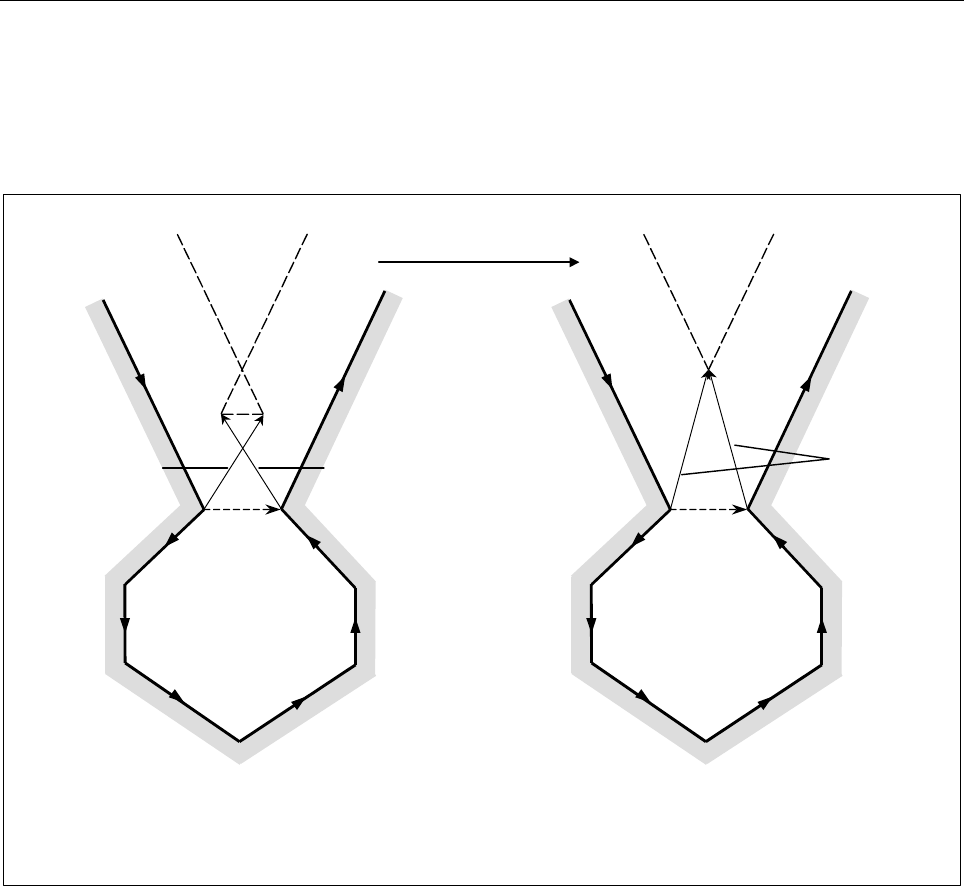

If the post-compensation intersection vector of (block 1 - gap vector)

and the post-compensation intersection vector of (gap vector - block

N) further intersect, vector erasure is first performed in the same way

as in "Interference between adjacent three blocks". If the last vectors

that remains still intersects, the post-compensation intersection vector

of (block 1 - block N) is re-calculated.

In this case, the post-compensation end points of blocks 2 to 7

coincide with the end point of block 1. Thus, after compensation,

blocks 2 to 7 will be blocks without tool movement.

Block 3

Post-compensation

intersection vector

between block 1 and

gap vector

Re-calculation

Block 8

Block 2

Block 3

Block 4

Block 5

Block 6

Block 7

Post-compensation path

Programmed path

Block 8

Block 7

Block 6

Post-compensation

intersection between

gap vector and block 8

Block 1

Post-

compensation

intersection

vector between

block 1 and

block 8

Gap vector

Block 2

Block 4

Block 5
