B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 55 -

5.1.7 Small-Hole Peck Drilling Cycle

An arbor with the overload torque detection function is used to retract

the tool when the overload torque detection signal (skip signal) is

detected during drilling. Drilling is resumed after the spindle speed

and cutting feedrate are changed. These steps are repeated in this peck

drilling cycle.

The mode for the small–hole peck drilling cycle is selected when the

M code in parameter 5163 is specified. The cycle can be started by

specifying G83 in this mode. This mode is canceled when G80 is

specified or when a reset occurs.

Format

G83 X_ Y_ Z_ R_ Q_ F_I_ K_P ;

X_ Y_ : Hole position data

Z_ : Distance from point R to the bottom of the hole

R_ : Distance from the initial level to point R

Q_ : Depth of each cut

F_ : Cutting feedrate

I_ : Forward or backward traveling speed (same format as F above)

(If this is omitted, the values in parameters No.5172 and No.5173 are

assumed as defaults.)

K_ : Number of times the operation is repeated (if required)

P_ : Dwell time at the bottom of the hole

(If this is omitted, P0 is assumed as the default.)

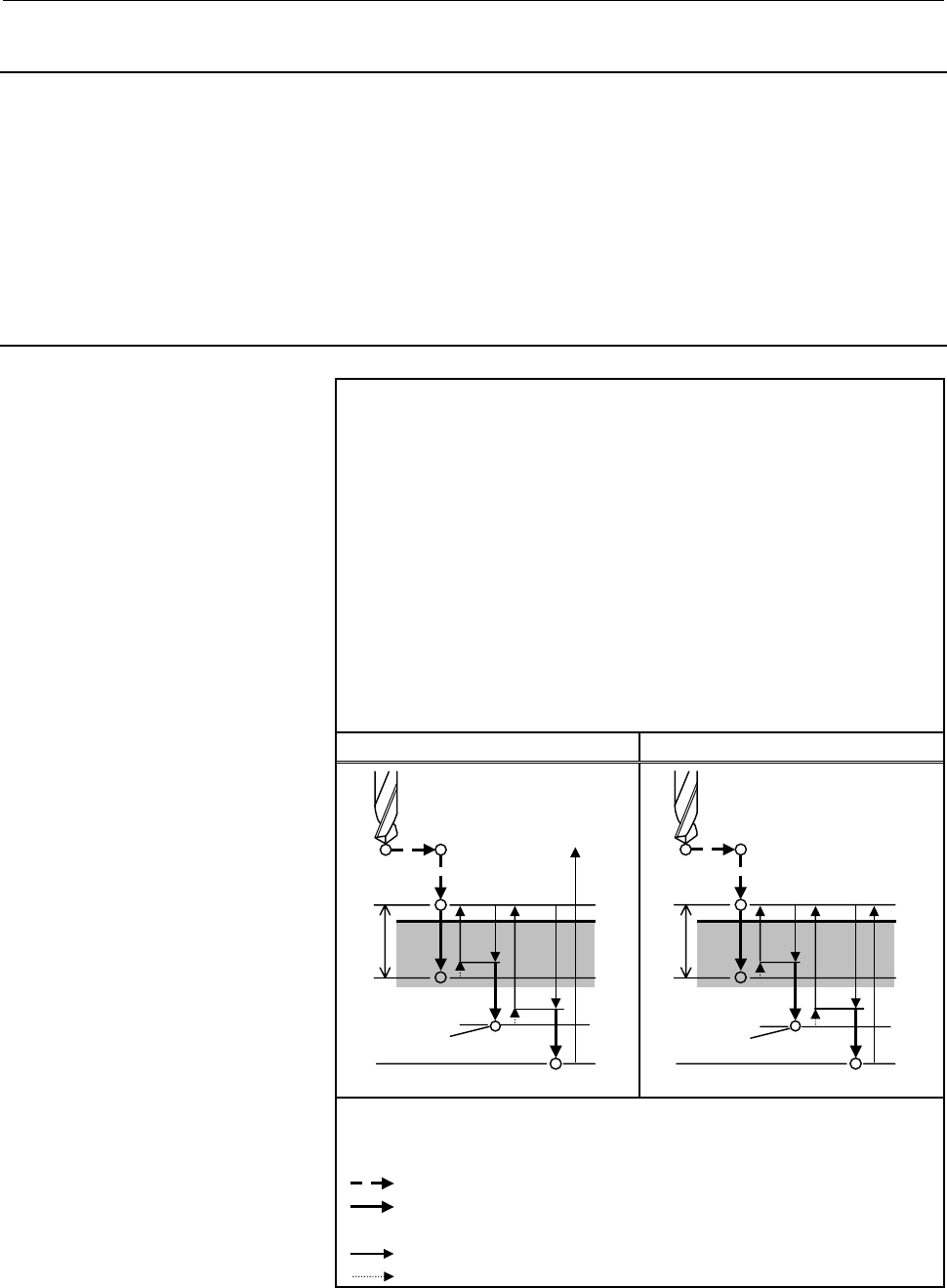

G83 (G98) G83 (G99)

∆: Initial clearance when the tool is retracted to point R and the clearance from the

bottom of the hole in the second or subsequent drilling (parameter 5174)

q: Depth of each cut

Path along which the tool travels at the rapid traverse rate

Path along which the tool travels at the programmed cutting

feedrate

Path along which the tool travels at the forward or backward rate during the

cycle specified with parameters

∆

()

Point R Point R

Point Z

Initial level

Dwell

Overload torque

Point Z

Dwell

Overload tor

Point R level

∆
