B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 51 -

5.1.5 Drilling Cycle Counter Boring Cycle (G82)

This cycle is used for normal drilling.

Cutting feed is performed to the bottom of the hole. At the bottom, a

dwell is performed, then the tool is retracted in rapid traverse.

This cycle is used to drill holes more accurately with respect to depth.

Format

G82 X_ Y_ Z_ R_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feed rate

K_ : Number of repeats (if required)

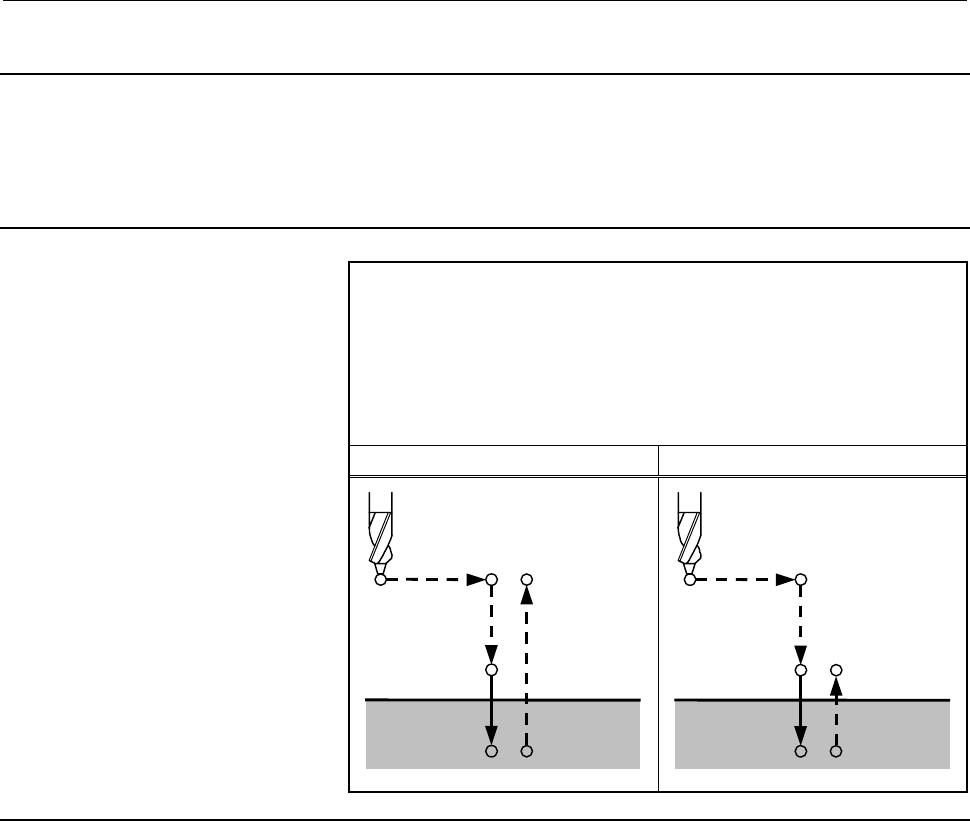

G82 (G98) G82 (G99)

Initial level

Point R

Point Z

Point R level

Point R

Point Z

Explanation

- Operations

After positioning along the X- and Y-axes, rapid traverse is performed

to point R.

Drilling is then performed from point R to point Z.

When the bottom of the hole has been reached, a dwell is performed.

The tool is then retracted in rapid traverse.

- Spindle rotation

Before specifying G82, use an auxiliary function (M code) to rotate

the spindle.

- Auxiliary function

When the G82 command and an M code are specified in the same

block, the M code is executed at the time of the first positioning

operation. When K is used to specify the number of repeats, the M

code is executed for the first hole only; for the second and subsequent

holes, the M code is not executed.
