B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 203 -

6.10 TOOL COMPENSATION VALUES, NUMBER OF

COMPENSATION VALUES, AND ENTERING VALUES

FROM THE PROGRAM (G10)

Tool compensation values include tool geometry compensation values

and tool wear compensation (Fig. 6.10 (a)).

OFS

: Geometry compensation value

OFS

: Wear compensation value

Reference

position

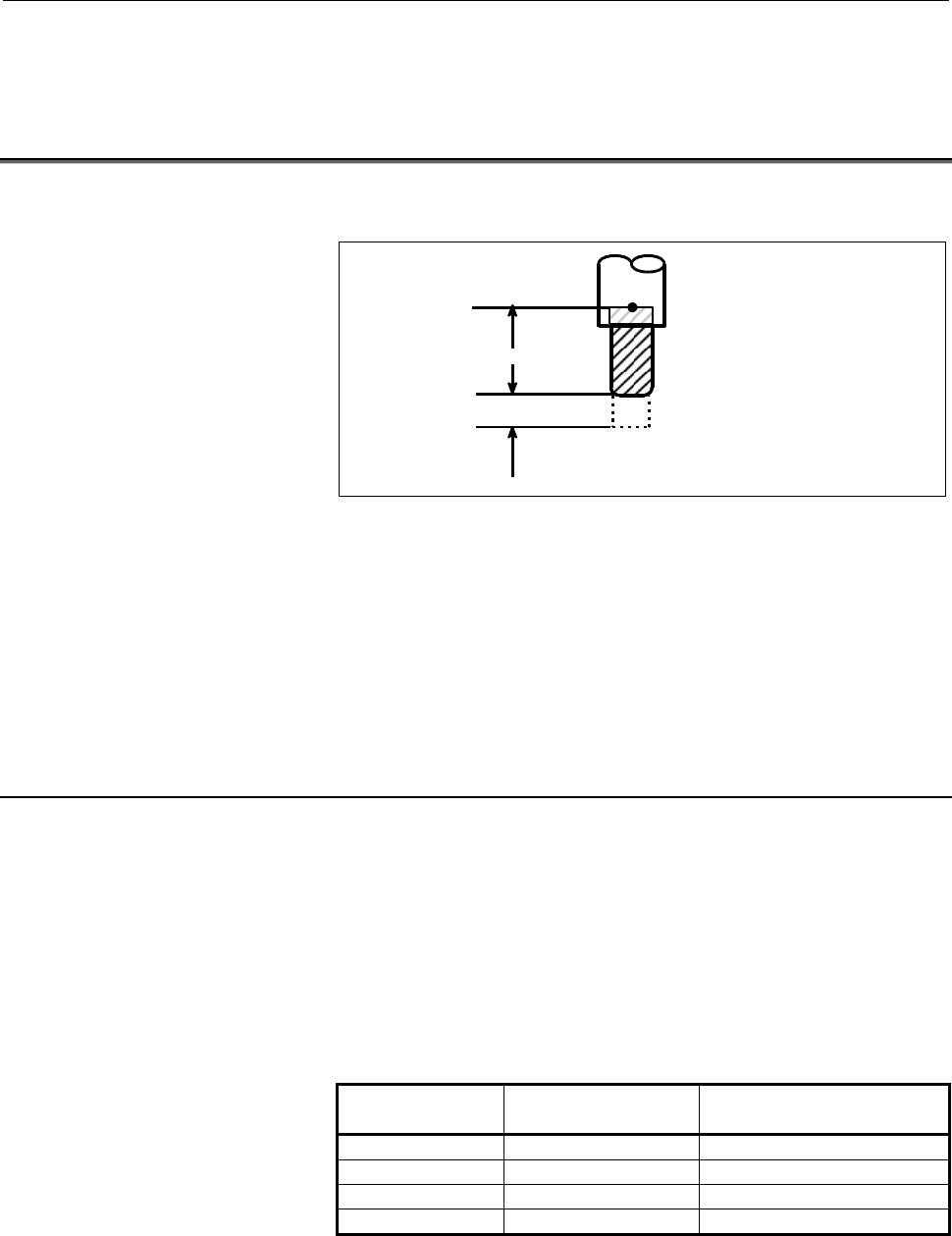

Fig. 6.10 (a) Geometric compensation and wear compensation

Tool compensation values can be entered into CNC memory from the

MDI panel (see section III-11.1.1) or from a program.

A tool compensation value is selected from the CNC memory when

the corresponding code is specified after address H or D in a program.

The value is used for tool length compensation, cutter compensation,

or the tool offset.

Three types of tool compensation memories are available according to

the compensation value configuration: tool compensation memory A,

B, and C. One of the types can be selected.

Explanation

- Tool compensation memory A

In tool compensation memory A, memory for geometry compensation

and memory for wear compensation are not distinguished from each

other. So, the sum of geometry compensation and wear

compensation values is to be set in the compensation memory.

Moreover, no distinction is made between memory for cutter

compensation (for D code) and memory for tool length compensation

(for H code).

Setting example

Compensation

number

Compensation value

(geometry+wear)

Common to D code/H code

001 10.000 For D code

002 20.000 For D code

003 100.000 For H code

: : :
