B-63944EN-2/02 PROGRAMMING 3.INTERPOLATION FUNCTION

- 23 -

- Specifiable G codes

The following G codes can be specified in involute interpolation

mode:

G04: Dwell

G10: Programmable data input

G17: X-Y plane selection

G18: Z-X plane selection

G19: Y-Z plane selection

G65: Macro call

G66: Macro modal call

G67: Macro modal call cancel

G90: Absolute programming

G91: Incremental programming

- Modes that allow involute interpolation specification

Involute interpolation can be specified in the following G code modes:

G41 : Cutter compensation left

G42 : Cutter compensation right

G51 : Scaling

G51.1 : Programmable mirror image

G68 : Coordinate rotation

- End point error

As shown below the end point may not be located on an involute

curve that passes through the start point.

When an involute curve that passes through the start point deviates

from the involute curve that passes through the end point by more than

the value set in parameter No. 5610, alarm PS0243 is issued.

If there is an end point error, the programmed feedrate changes by the

amount of error.

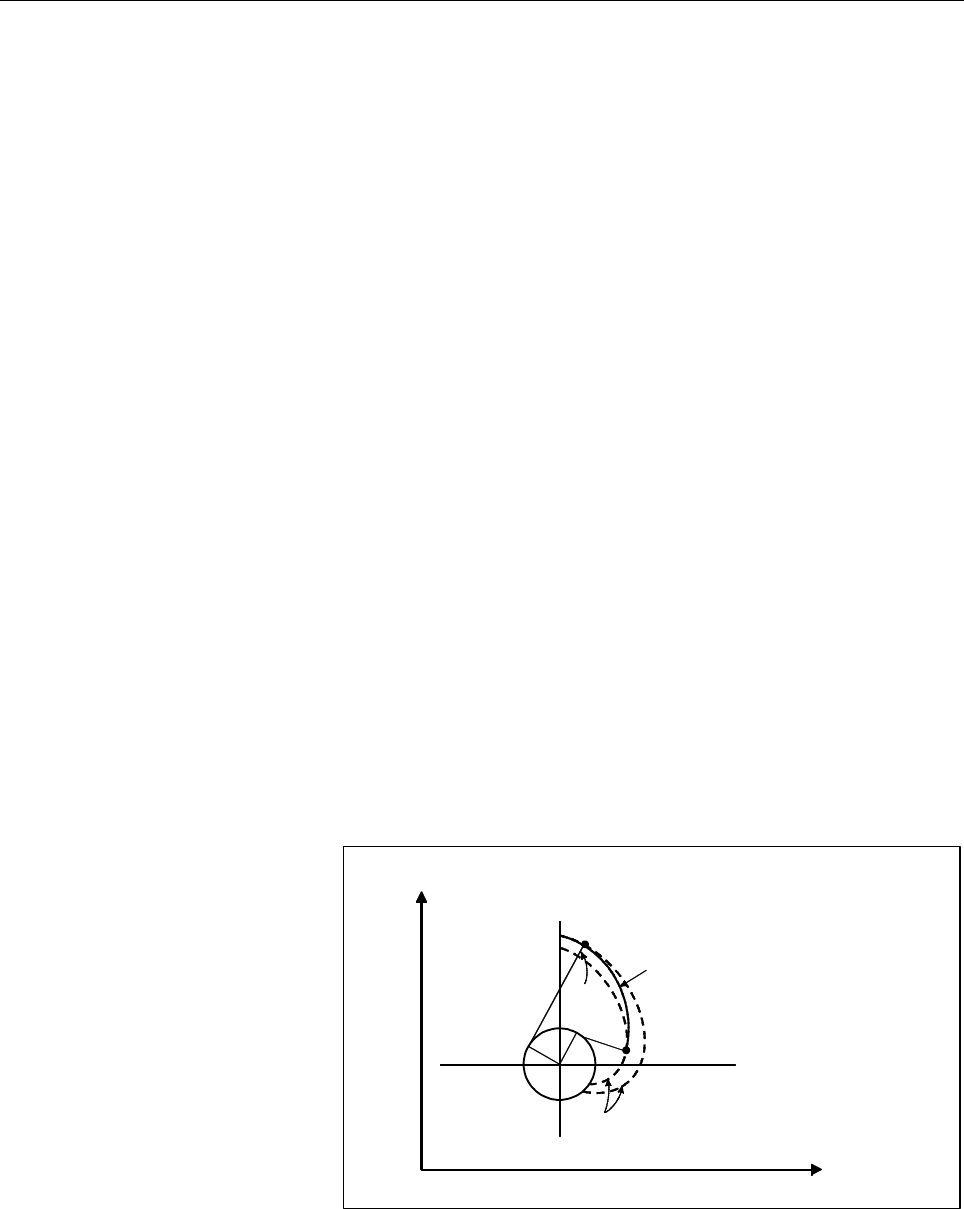

Path after correction

Correct involute curve

Deviation

End point

Start point

Fig. 3.1 (c) End point error in counterclockwise involute interpolation

(G03.2)
