B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 39 -

Operation 1

Feed

Initial level

Operation 2

Operation 6

Point R level

Operation 5

Operation 3

Rapid traverse

Operation 4

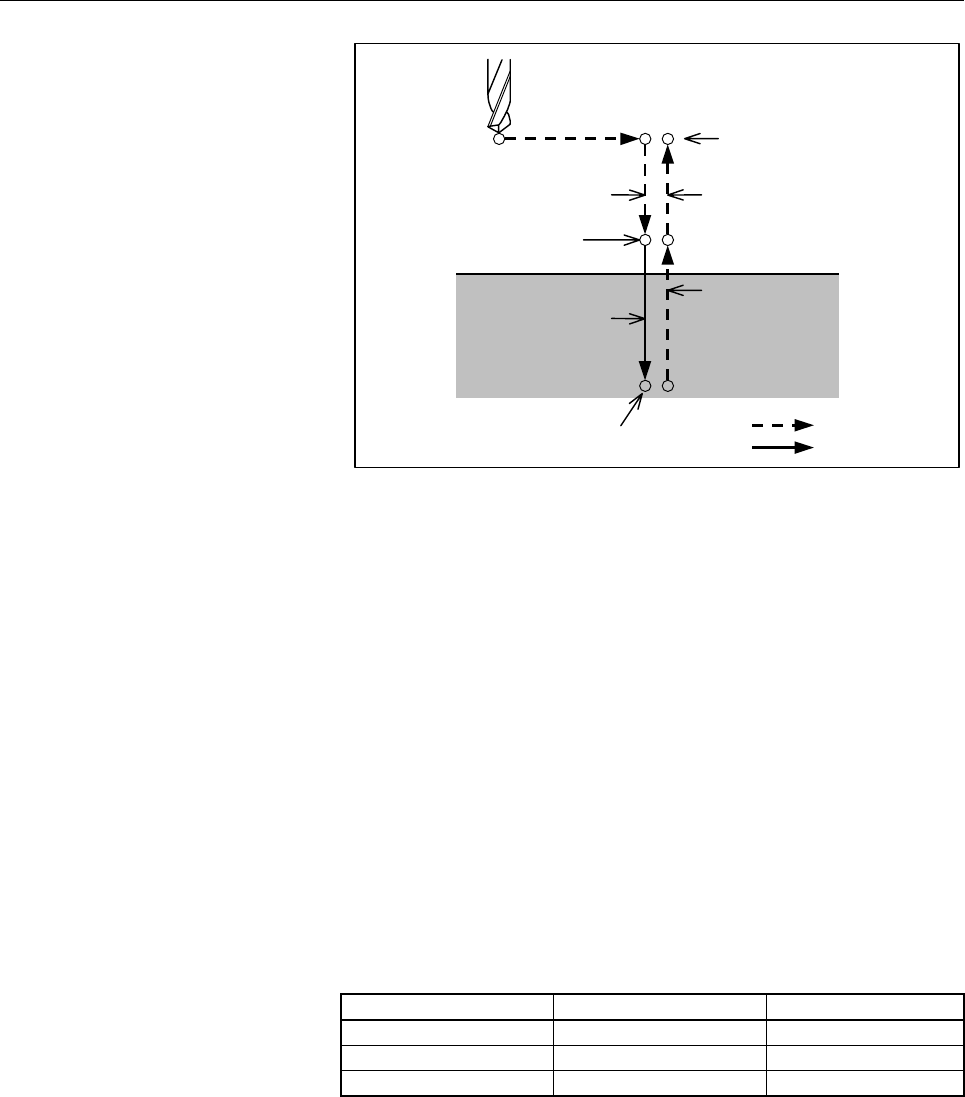

Fig. 5.1 (a) Operation sequence of canned cycle for drilling

- Positioning plane

The positioning plane is determined by plane selection code G17, G18,

or G19.

The positioning axis is an axis other than the drilling axis.

- Drilling axis

Although canned cycles for drilling include tapping and boring cycles

as well as drilling cycles, in this chapter, only the term drilling will be

used to refer to operations implemented with canned cycles.

The drilling axis is a basic axis (X, Y, or Z) not used to define the

positioning plane, or any axis parallel to that basic axis.

The axis (basic axis or parallel axis) used as the drilling axis is

determined according to the axis address for the drilling axis specified

in the same block as G codes G73 to G89.

If no axis address is specified for the drilling axis, the basic axis is

assumed to be the drilling axis.

Table 5.1 (b) Positioning plane and drilling axis

G code Positioning plane Drilling axis

G17 Xp-Yp plane Zp

G18 Zp-Xp plane Yp

G19 Yp-Zp plane Xp

Xp: X axis or an axis parallel to the X axis

Yp: Y axis or an axis parallel to the Y axis

Zp: Z axis or an axis parallel to the Z axis
