6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 160 -

- If I, J, and K are specified in a G00/G01 mode block

At the start of cutter compensation or in that mode, by specifying I, J,

and K in a positioning mode (G00) or linear interpolation mode (G01)

block, it is possible to set the compensation vector at the end point of

that block in the direction vertical to that specified by I, J, and K.

This makes it possible to change the compensation direction

intentionally.

IJ type vector (XY plane)

The following explains the compensation vector (IJ type vector) to be

created on the XY compensation plane (G17 mode). (The same

explanation applies to the KI type vector on the G18 plane and the JK

type vector on the G19 plane.) As shown in the figure below, it is

assumed that the compensation vector (IJ type vector) is the vector

with a size equal to the compensation value and vertical to the

direction specified by I and J, without performing intersection

calculation on the programmed path. I and J can be specified both at

the start of cutter compensation and in that mode. If they are

specified at the start of compensation, any start-up type set in the

appropriate parameter will be invalid, and an IJ type vector is

assumed.

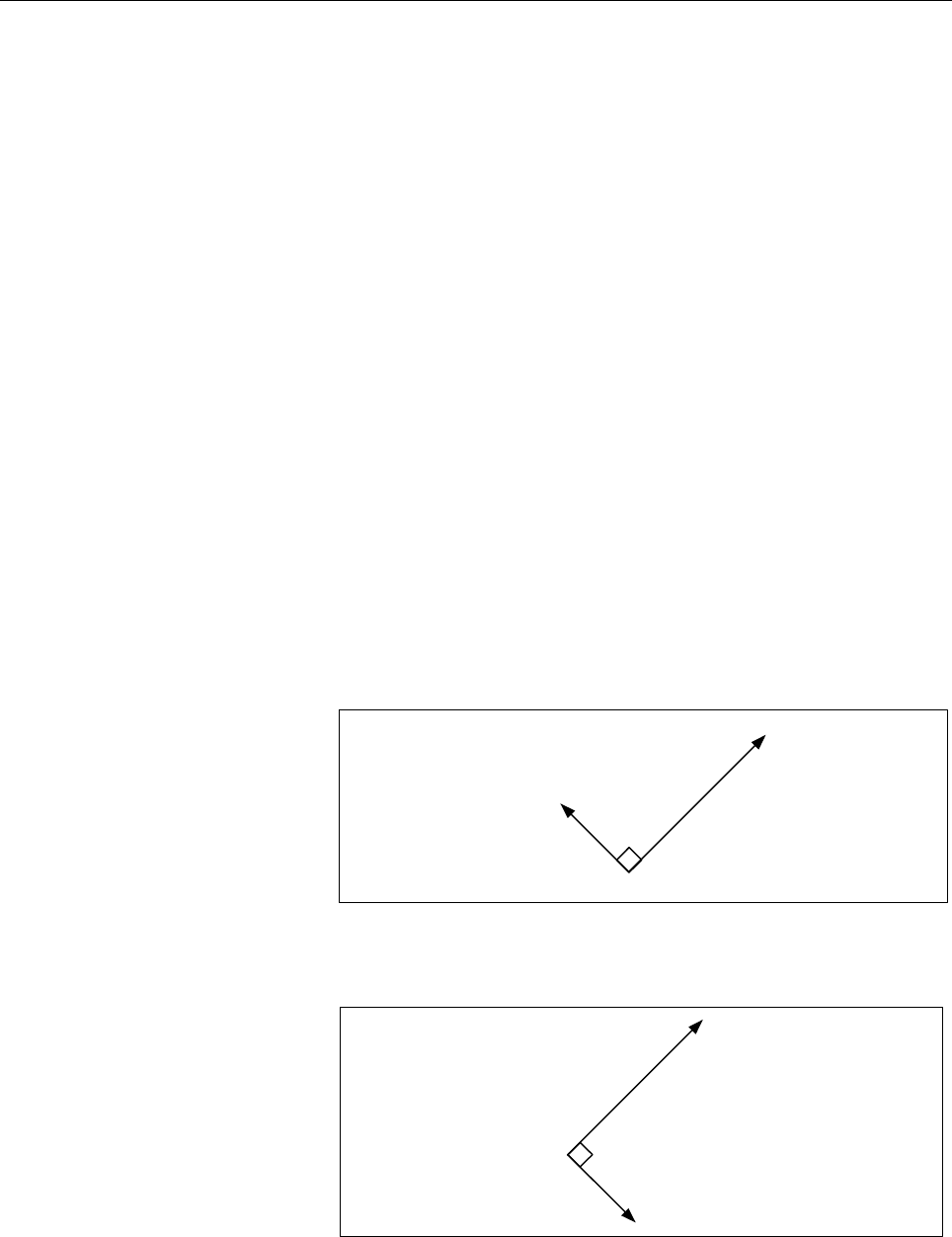

Offset vector direction

In G41 mode, the direction specified by I, J, and K is assumed an

imaginary tool movement direction, and an offset vector is created

vertical to that direction and on the left side.

Compensation vector

I, J, K

In G42 mode, the direction specified by I, J, and K is assumed an

imaginary tool movement direction, and an offset vector is created

vertical to that direction and on the right side.

Compensation vector

I, J, K
