B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 173 -

- Block containing G40 and I_J_K_

The previous block contains G41 or G42

If a G41 or G42 block precedes a block in which G40 and I_, J_, K_

are specified, the system assumes that the path is programmed as a

path from the end point determined by the former block to a vector

determined by (I,J), (I,K), or (J,K). The direction of compensation in

the former block is inherited.

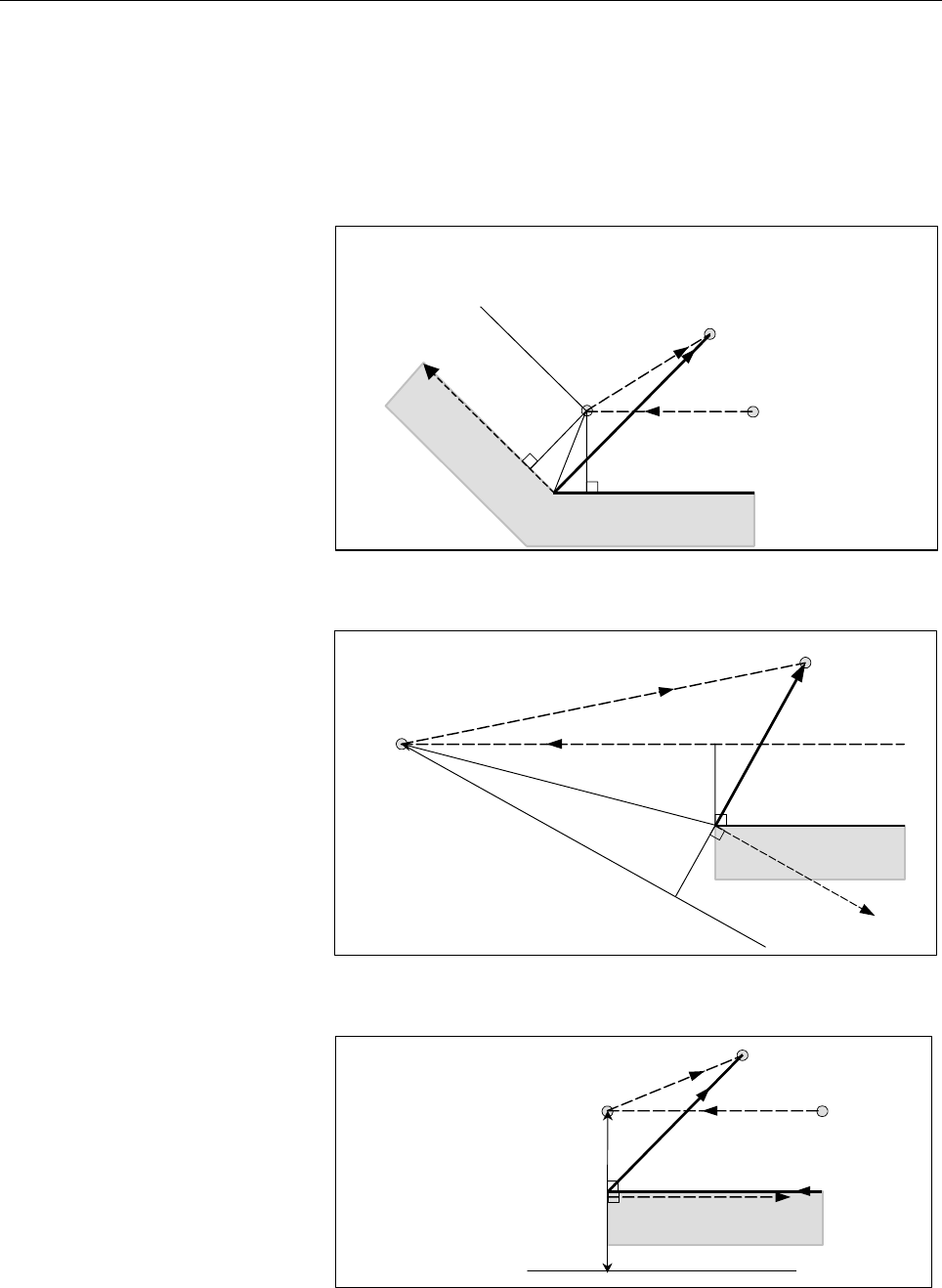

Programamed path

N1 (G42 mode) ;

N2 G40 Xa Yb I_ J_ ;

In the N1 block, the tool nose radius center moves

towards P.

In the N2 block, the tool nose radius moves towards E.

E(a, b)

Tool center path

(I, J)

(G42)

Workpiece

G40

In this case, note that the CNC obtains an intersection of the tool path

irrespective of whether inner or outer side machining is specified.

Programmed path

Tool center path

(I, J)

(G42)

G40

When an intersection is not obtainable, the tool comes to the normal

position to the previous block at the end of the previous block.

Programmed path

Tool center path

(I, J)

G40

(G42)
