B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 157 -

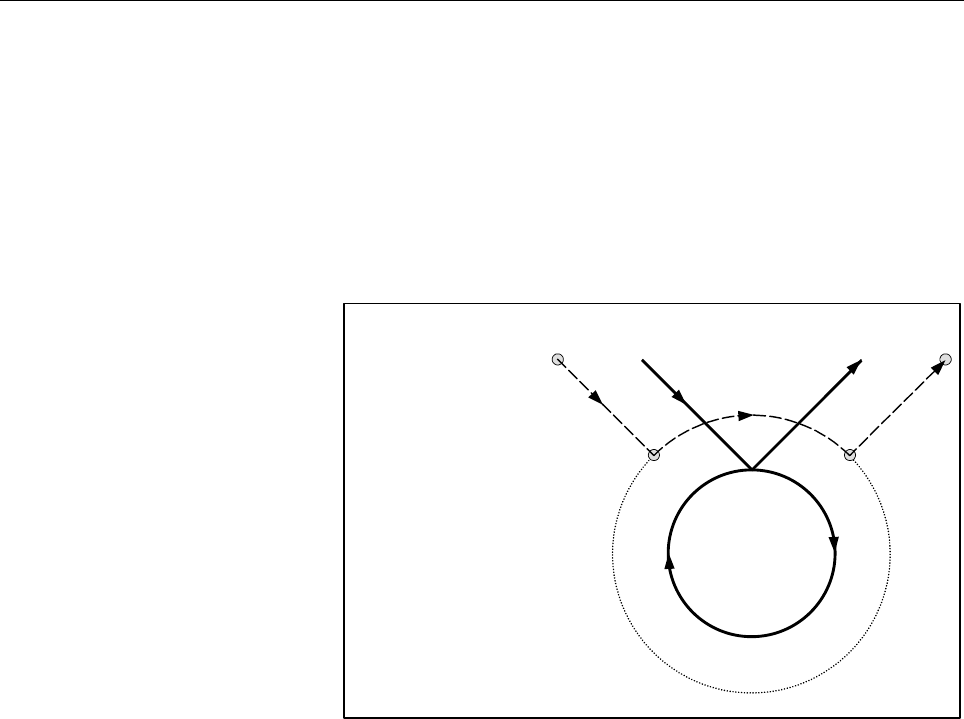

- The length of tool center path larger than the circumference of a circle

Normally there is almost no possibility of generating this situation.

However, when G41 and G42 are changed, or when a G40 was

commanded with address I, J, and K this situation can occur.

In this case of the figure, the cutter compensation is not performed

with more than one circle circumference: an arc is formed from P

as shown. Depending on the circumstances, an alarm may be

displayed due to the "Interference Check" described later. To

execute a circle with more than one circumference, the circle must be

specified in segments.

(G42)

N5 G01 G91 X500.0 Y-700.0 ;

N6 G41 G02 J-500.0 ;

N7 G42 G01 X500.0 Y700.0 ;

P1 P2

Tool center path

Programmed path
