6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 162 -

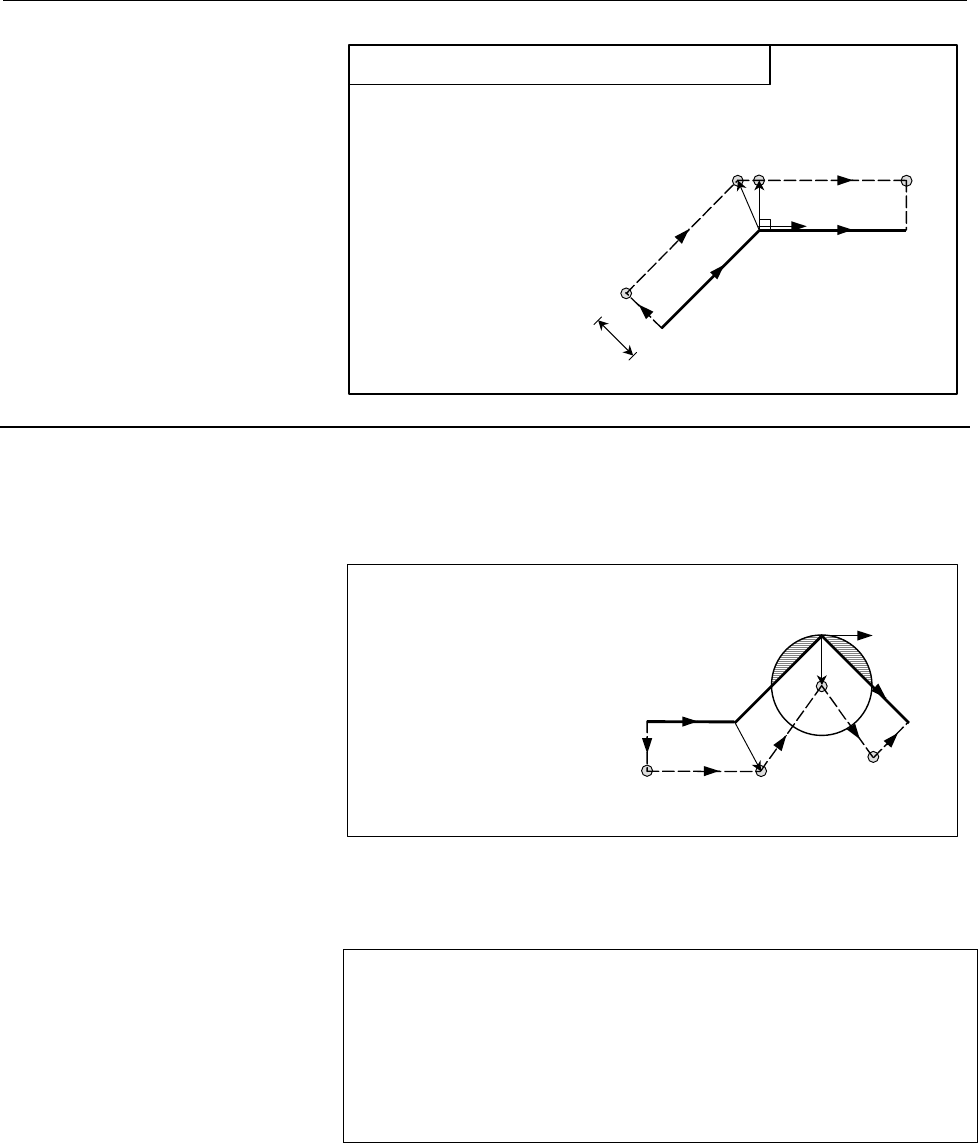

Start-up/cancel type C

N10 G41 D1 G01 F1000 ;

N20 G91 X100. Y100. ;

N30 I10. ;

N40 X150. ;

N50 G40 ;

If I and J are specified in a block without tool movement in

compensation mode

N10

N30

N20

N40

N50

Tool center

path

Programmed path

(

I, J

)

Limitation

If an IJ type vector is specified, tool interference may occur due to that

vector alone, depending on the direction. If this occurs, no

interference alarm will occur, or no interference avoidance will be

performed. Overcutting may, therefore, result.

Start-up/cancel

Type C

N10 G42 D1 F1000 ;

N20 G91 X100. ;

N30 X100. Y-100. I10. ;

N40 X100. Y-100. ;

N50 G40 ;

N50

N10

N30

N20

Tool center path

N40

Overcutting

Programmed

ath

(I, J)

- A block without tool movement

The following blocks have no tool movement. In these blocks, the

tool will not move even if cutter compensation is effected.

M05 ; : M code output

S21 ; : S code output

G04 X10.0 ; : Dwell

G22 X100000 ; : Machining area setting

G10 L11 P01 R10.0 ; : Cutter compensation value setting/changing

(G17) Z200.0 ; : Move command not included in the offset plane.

G90 ;, O10 ;, N20 ; : G, O, and N codes only

G91 X0 ; : Move distance is zero.
