Laser C 1000iA Maintenance manual Page 144

Maintenance manual
B-70255EN/01 9.SETTING AND ADJUSTMENT
- 137 -

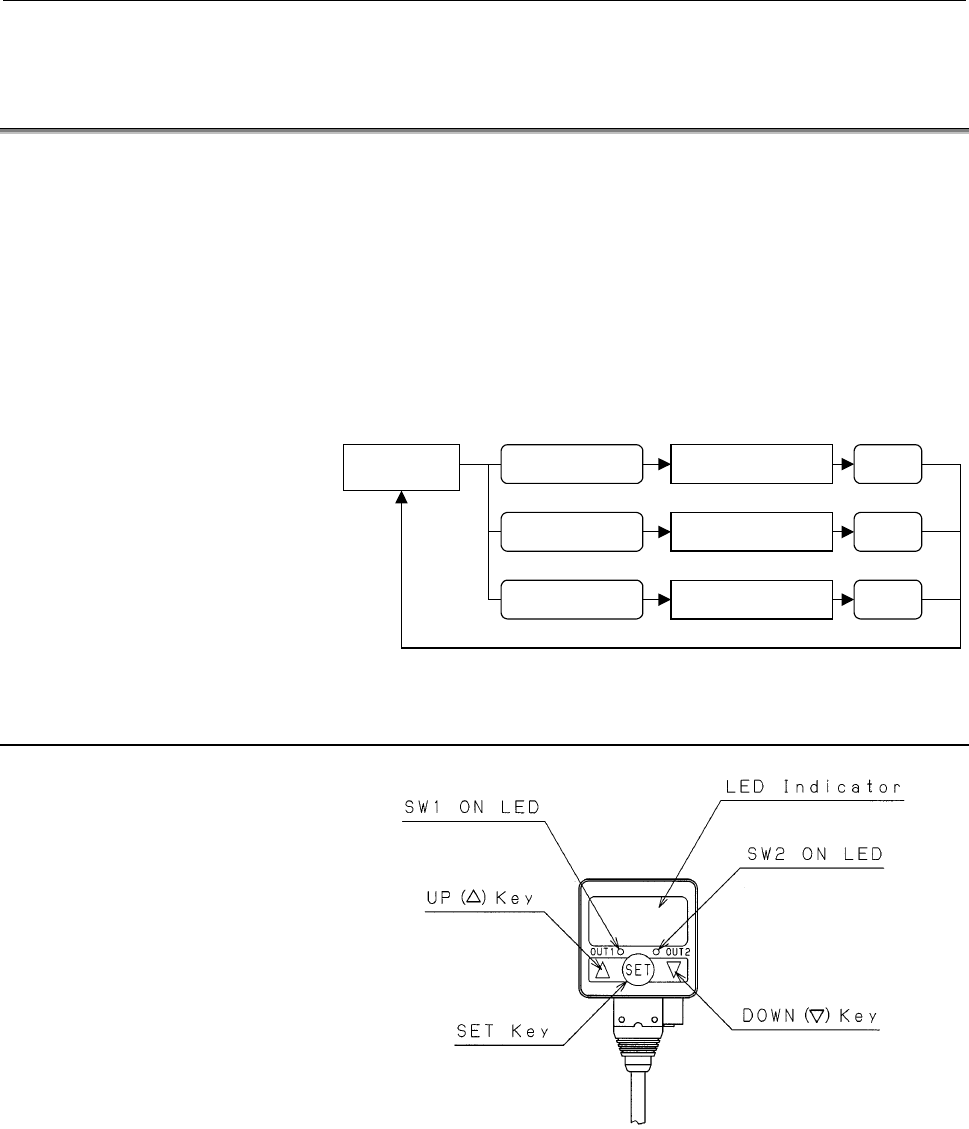

9.5 SETTING THE GAS SUPPLY PRESSURE SENSOR AND
ATMOSPHERIC PRESSURE SENSOR
The sensors operate in one of four modes. In the measurement mode,
a pressure value being measured is indicated. In the initial setting
mode, basic operation is set. In the pressure setting mode, an
operating pressure is set. In the lock mode, key operation is locked.
Moreover, the sensors have a zero-clear function for canceling an
initial offset value.
Set the initial setting mode, pressure setting mode, zero-clear function,
and key lock mode in this order. For mode switching, press or hold
down the SET key as indicated below. (When the power is turned on,
the measurement mode is set.)
Measurement
mode
SET (³ 2 seconds)
SET (³ 4 seconds)
SET (< 2 seconds) SET
SET
SET
Note) Zero-clear operation is performed in the measurement mode.
Pressure setting mode
Initial setting mode
Key lock mode
9.5.1 Names of Components
Fig. 9.5 Details of the gas supply pressure sensor and atmospheric
pressure sensor
- LED indicator section:
Indicates a measured pressure value, settings, and error code.
- Switch output 1 operation indicator lamp (green LED):
Turned on when OUT1 is on.
- Switch output 2 operation indicator lamp (red LED):
Turned on when OUT1 is on.
