B-70255EN/01 5.MAINTENANCE

- 55 -

5.3.3 Replacing the Exhaust Pump Filter

Replacement method

When the operation time reaches 3000 hours or the exhaust capacity

gets lowered, replace the filter. A clogged filter may cause a whitish

smoke of oil mist to come out of the pump or lower the exhaust

capacity.

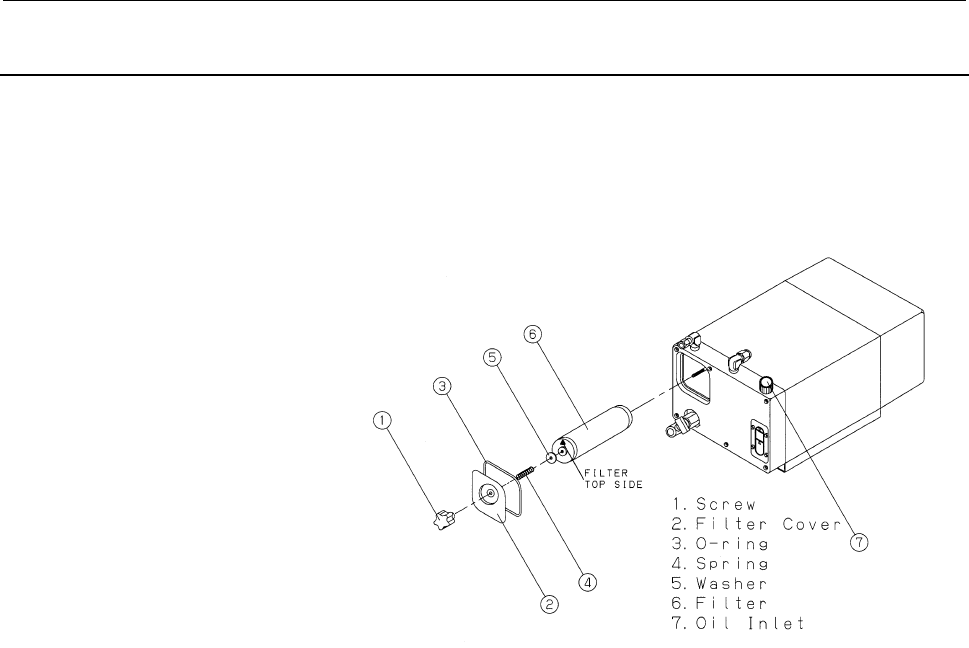

(1) Stop the oscillator, and turn off the power.

(2) Remove the black screw from the exhaust pump unit, then

remove the filter cover and O-ring.

(3) Remove the spring and washer.

(4) Pull out the filter element.

(5) Check the mounting orientation of a new filter element, then

insert the filter. A filter mounted improperly may cause oil mist

(whitish smoke) to come out of the exhaust pump gas outlet.

Therefore, check again that the filter is mounted properly.

Replacement work is now complete.
