Laser C 1000iA Maintenance manual Page 148

Maintenance manual
B-70255EN/01 9.SETTING AND ADJUSTMENT
- 141 -

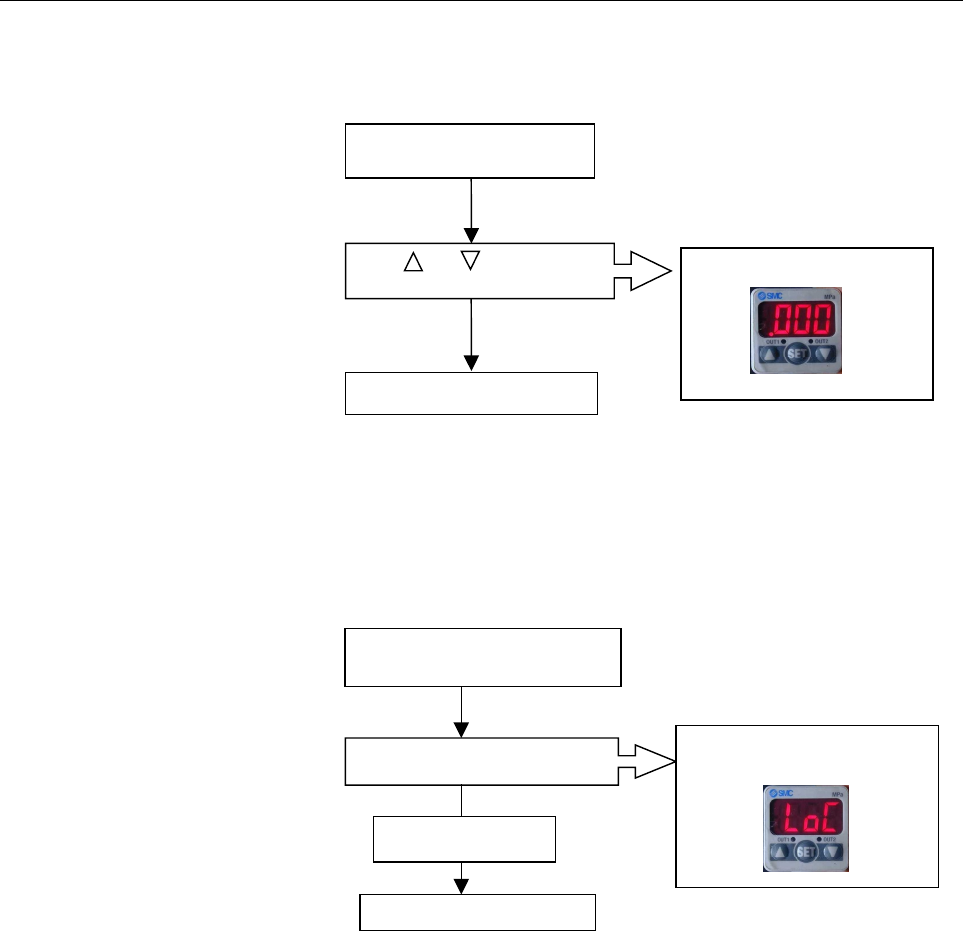

Zero clear
Clear the initial offset value of the sensor. This setting can be made in
the measurement mode. Set the atmospheric pressure sensor only.
Check that the measurement
mode is set.
Press and simultaneously.
Set the indication to 0.
To the measurement mode
Setting in the key lock mode
Key locking protects against an inadvertent modification to the setting
of the sensor. This setting is common to the gas supply pressure
sensor and atmospheric pressure sensor.
The key lock mode is set by holding down the SET key for 4 seconds
or more in the measurement mode.
UnL or LoC is displayed.
After various settings, set
LoC.
Press the SET key.
To the measurement mode
Hold down the SET key for 4
seconds or more.
