0i/0i Mate - Model C Maintenance manual Page 176

Maintenance manual
2. HARDWARE
B–64115EN/01
152
βi spindle motors

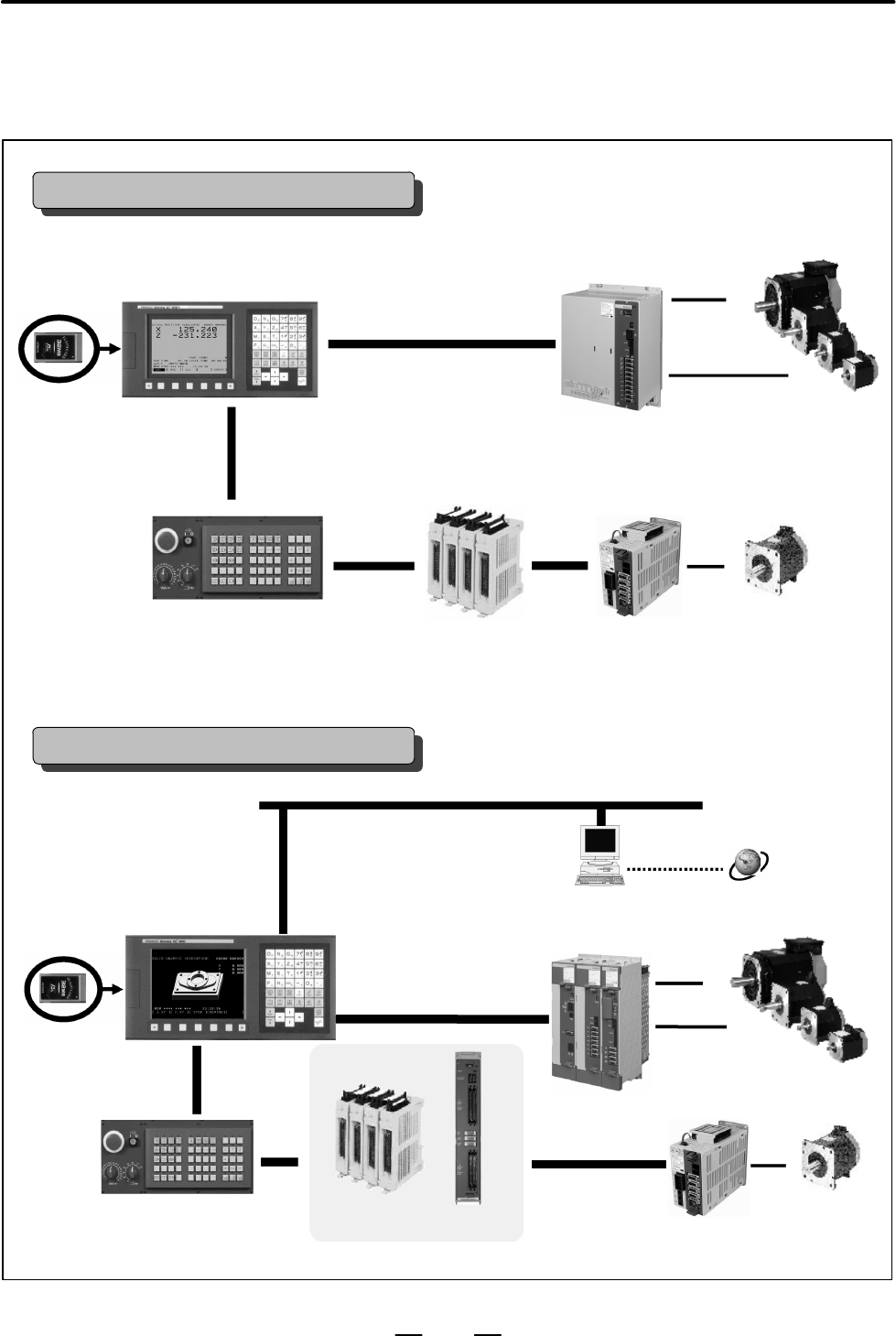

Series 0i–C system configuration
Series 0i Mate–C system configuration
7.2″ LCD/MDI (monochrome)
FSSB
βi SVPM
βis servo motors
FANUC I/O Link
Maximum usable number of I/O points: 240 input points/160 output points
Machine operator’s panel
Distributed I/O
Ethernet 10 base T/100 base TX (the Fast Ethernet board option is required.)
Machine operator’s panel
PC
αi servo/spindle motors
αi spindle motors
Internet
I/O Link βi servo amplifier
βis servo motor (one axis)
I/O on the machine side
All units that can be connected with the I/O Link are usable.
The number of usable I/O points is limited, though.
7.2″ LCD/MDIJ (monochrome)
8.4″ LCD/MDI (color)
FSSB
αis servo motors
FANUC I/O Link
DI/DO 1024/1024
I/O on the machine side
βis servo motor
I/O Link βi servo amplifier
The βi series is also usable.
Distributed I/O
I/O unit for the 0i
All units that can be connected with the I/O Link are usable.
2.1
HARDWARE
CONFIGURATION
