0i/0i Mate - Model C Maintenance manual Page 225

Maintenance manual
B–64115EN/01
2. HARDWARE
201
WARNING
When opening the cabinet and replacing a fan motor, be
careful not to touch the high–voltage circuits (marked and
fitted with an insulating cover).
Touching the uncovered high–voltage circuits presents an
extremely dangerous electric shock hazard.
Ordering information Required quantity
Unit with no option slot A02B-0236-K120 2
Unit with 2 option slots A02B-0281-K121 2
1. Before replacing a fan motor, turn off the power to the CNC.
2. Unplug the connector of a fan motor to be replaced ( (1) of Fig. a).
The connector is latched. So, when unplugging the connector, hold
down the latch placed at the lower part of the connector with a
flat–blade screwdriver.
3. Detach the latch securing the fan motor, then demount the fan motor
( (2) of Fig. a).
4. Insert a new fan motor into the fan case ( (3) of Fig. a), then reconnect
the connector.

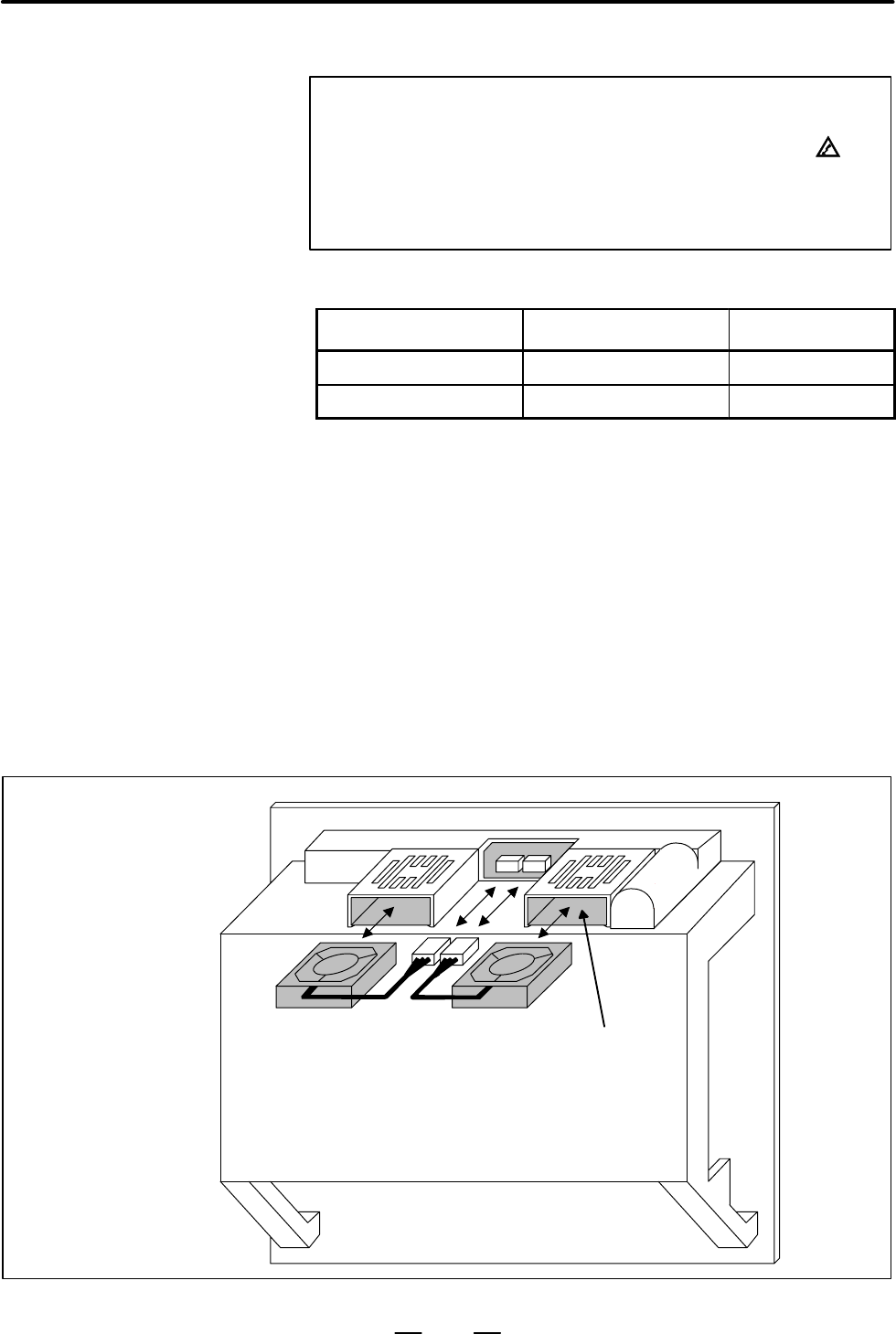

Fig. a
(1) Connector
(2) Fan
(3) Fan case
Note) Install a fan so that it flows air in the upward
direction. (Face the label upward.)
2.11
REPLACING FAN
MOTORS
D Fan ordering information
Replacement procedure
D For units with no
expansion slots and
units with 2 expansion
slots
