0i/0i Mate - Model C Maintenance manual Page 299

Maintenance manual
B–64115EN/01
4. INTERFACE BETWEEN CNC AND PMC
275

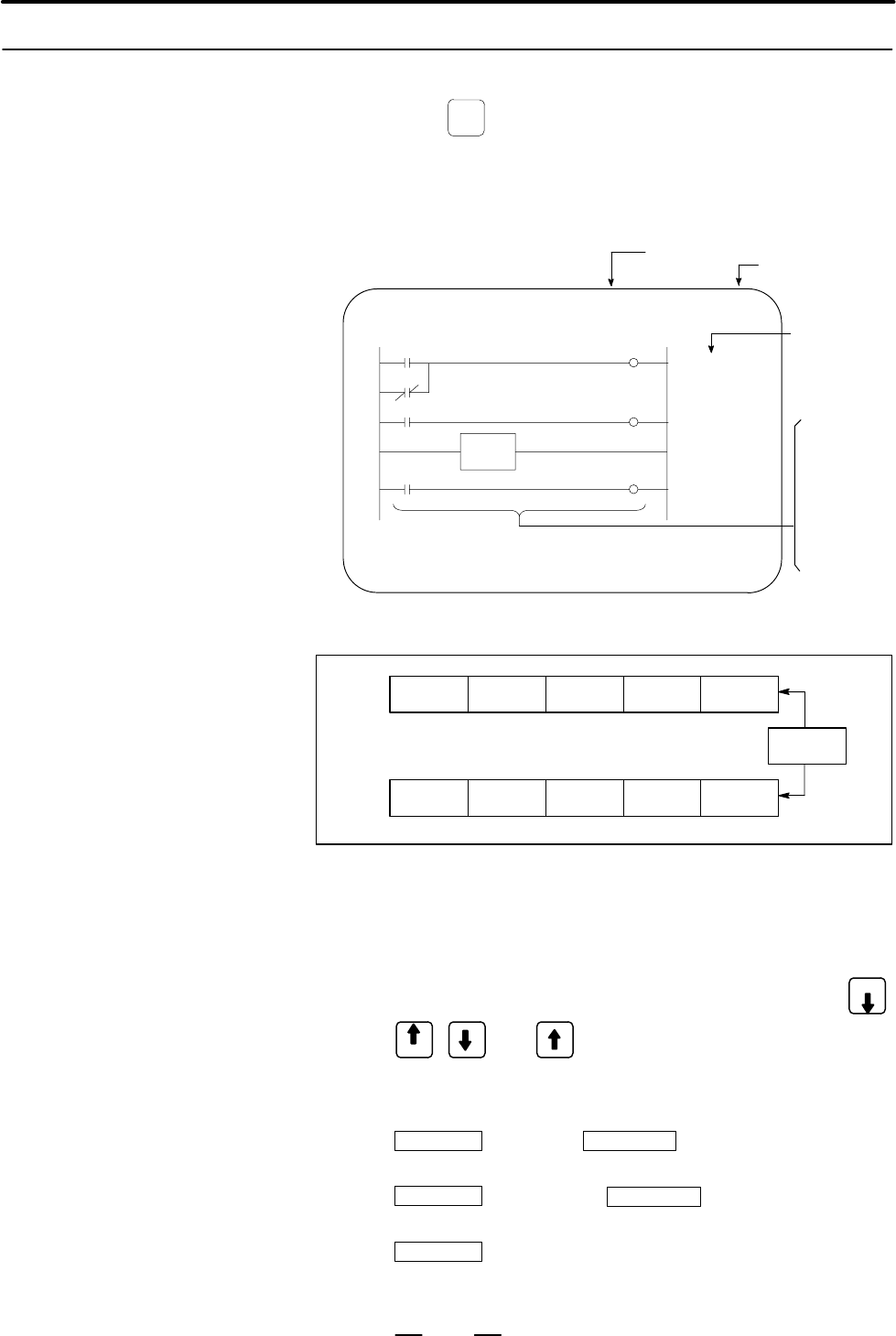

(1)Display method
1 Press the
SYSTEM
key, then press the soft key [PMC].
2 Dynamic display of sequence program by pressing [PMCLAD]
soft key.
(2)Display information
[]
WINDOWSEARCH
[][][][]
ADRESS TRIGER
LADDER
NET 0001–0004 MONIT RUN
END1
LOG1
X008.4
LOG1
ALWAYS1
EMERGENCY
STOP
POWER ON
RESET
LOG1
*ESP
POR
PORD
Green
color
(dark) :
Signal is
turned
ON
White color
(bright) :
Signal is
turned ON
Display of current net number
RUN/STOP
status
Comment
D Soft key
NEXT
SEARCH ADRESS TRIGER WINDOW
DUMP DPARA
(3)Searching for the signal (SEARCH)
1 Press the [SEARCH] soft key.
2 Using the following keys as described below, search for desired
signal.
D The signals being displayed can be changed by using the
PAGE
,
PAGE
, , and keys.
D [TOP]: Locates the top of the ladder program.
D [BOTTOM] : Locates the end of the ladder program.
D Address.bit [SRCH] or Single name [SRCH] :
Search a specified address unconditionally.
D
Address.bit [W-SRCH] or Single name or [W-SRCH] :
Searches for a specified address, for the write coils.
D
Net number [N-SRCH]:
Displays the ladder program from the specified net address.
4.3.2
Dynamic Display of
Sequence Program
