2. HARDWARE

B–64115EN/01

210

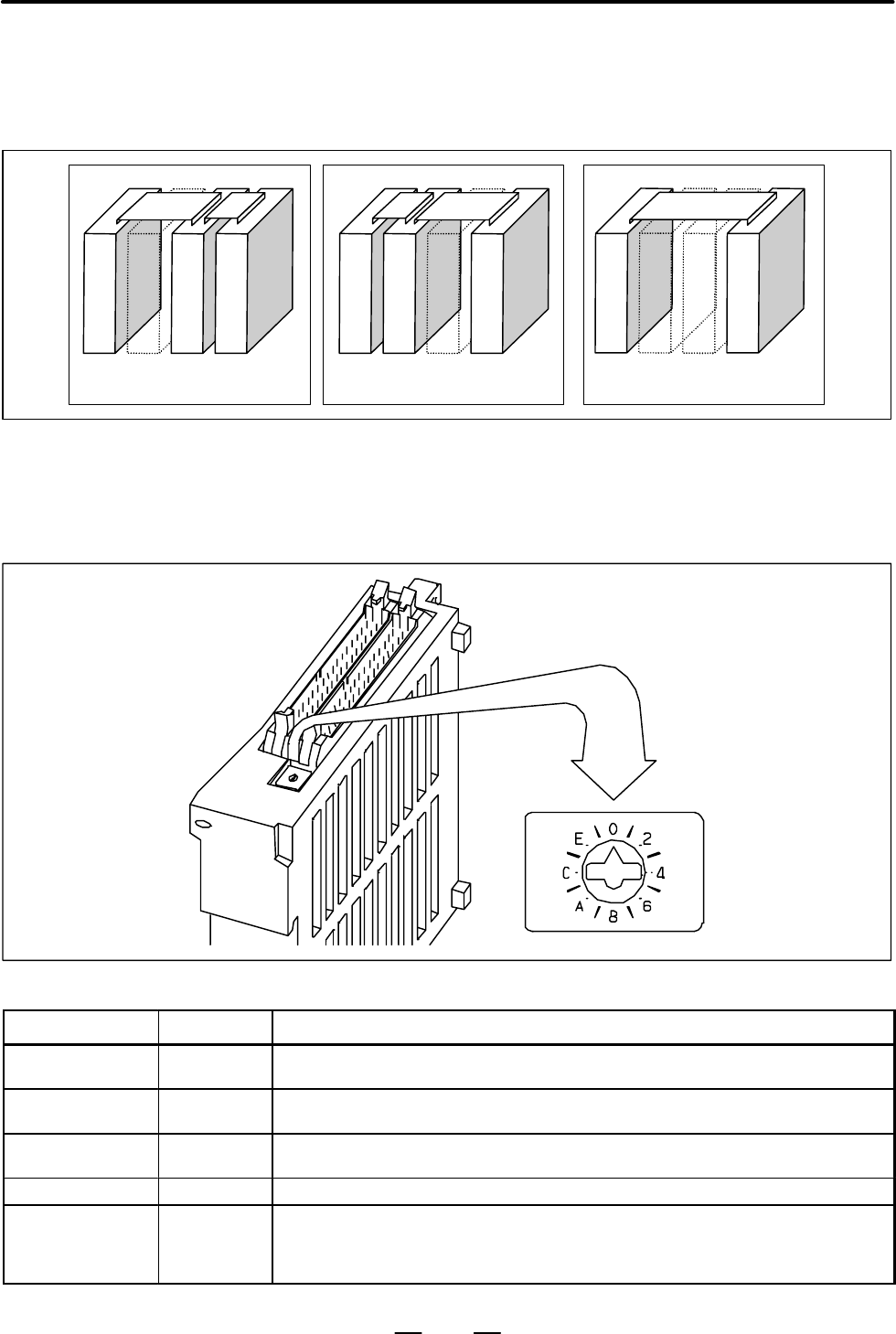

By changing the setting (rotary switch) on an expansion module, a

connection can be made to skip an expansion module or expansion

modules as shown below.

Basic module

Basic module 1

Basic module 2

Basic module 3

Basic module 1

Basic module 2

Basic module 3

When expansion module 1 is

skipped

When expansion module 2 is

skipped

When expansion modules 1 and

2 are skipped

Method of setting (control and setting method)

A control (rotary switch) is provided on the location shown below of each

expansion module. When changing the setting, turn the rotary switch

with a flat–blade screwdriver with a tip diameter of about 2.5 mm.

Each setting position of the rotary switch has the meaning as indicated below.

Setting position Indication Meaning of setting

0 0 Standard setting. The rotary switch is set to this position at the time of shipment from FANUC.

This setting is not skipped an expansion module.

1 – Set the rotary switch of an expansion module to this position when the one preceding expansion

module is skipped.

2 2 Set the rotary switch of an expansion module to this position when the two preceding expansion

modules are skipped.

3 – Setting prohibited

4 to F 4, –, 6, –,

8, –, A, –,

C, –, E, –,

4, 8, or C has the effect of 0.

5, 9, or D has the effect of 1.

6, A, or E has the effect of 2.

7, B, or F has the effect of 3. (← setting prohibited)

2.14

DISTRIBUTED I/O

SETTING
