4. INTERFACE BETWEEN CNC AND PMC

B–64115EN/01

278

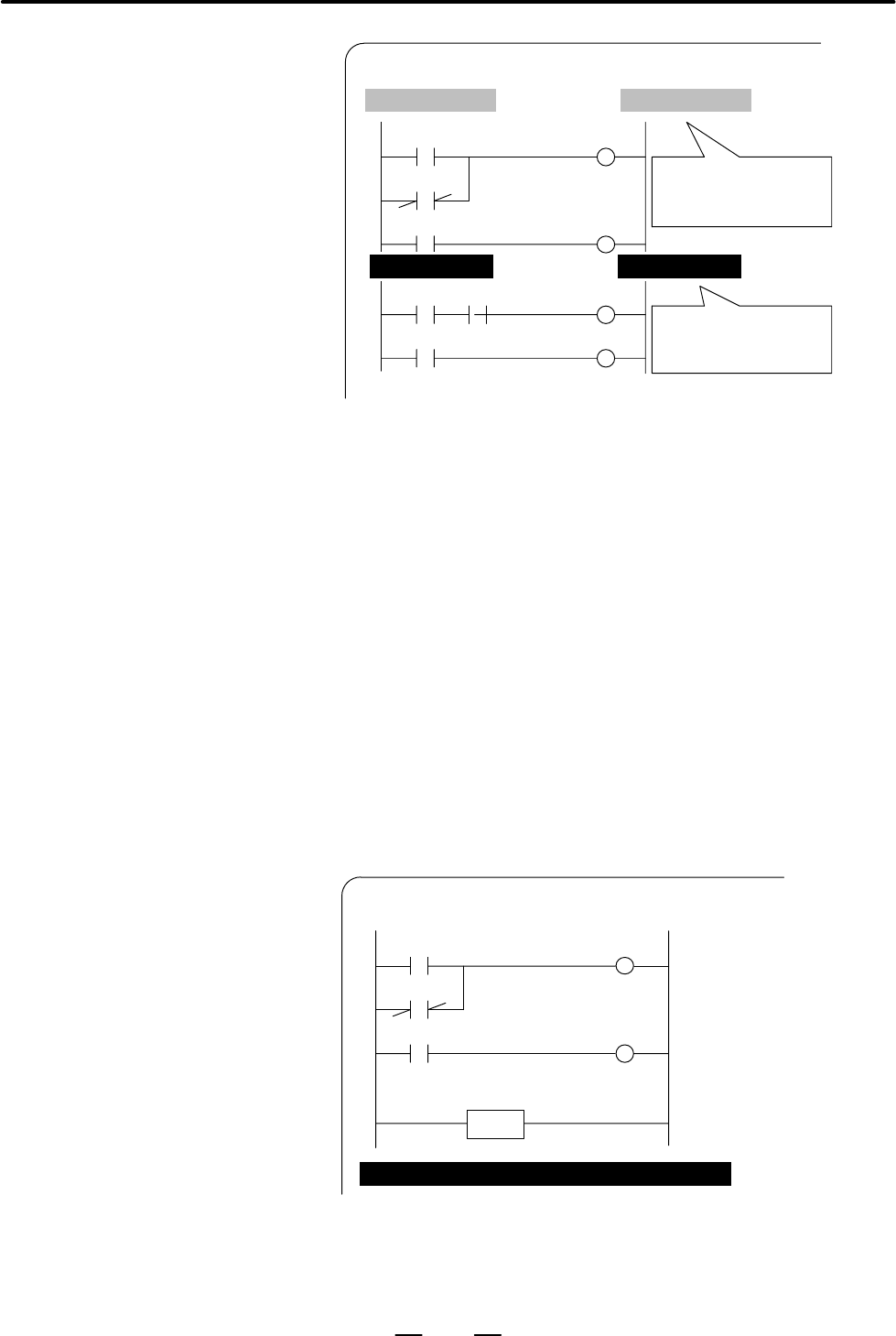

An unselected divided screen

is indicated by a blue low-in-

tensity bar.

LOG1

*SP

A selected divided screen is

indicated by the purple high-in-

tensity bar.

LADDER

LOG1

DOOR. ST.

* XXX. . . . . . . . . . . . . XXX * MONIT RUN

LOG1

*SP.

NET 0001-0002

SKIP1.

SKIP1

NET 0020-0021

3 To select the desired divided screen, press the [SELECT] soft key

as many times as necessary to move the purple bar to the desired

screen.

: The normal search function can be used within each divided

screen.

4 To change the width of a selected divided screen, press the

[WIDTH] soft key.

D Pressing the [EXPAND] soft key increases the number of lines

displayed on a divided screen.

D Pressing the [SHRINK] soft key decreases the number of lines

displayed on a divided screen.

5 To terminate the display of a selected divided screen, press the

[DELETE] soft key.

: To terminate screen division, press the [CANCEL] soft key.

(6)Dumping (DUMP)

The states of the signals corresponding to a ladder program can be

displayed in hexadecimal, together with the ladder program itself.

1 Press the [DUMP] soft key.

LOG1

*ESP.

*ESP

LOG1 C1

EMERGENCY STOP

END1

G0000 00 1A5C32 220D65 1001 02 0010 00 0010 40. . . . . . .

G0016 01 00 1023 400F03 201AFF00 00 3A9B16 84 . . . . . . .

* XXX. . . . . . . . . . . . XXX * NET 0001-0004 MONIT RUN

LADDER

ADDRESS DUMP

: When the screen is divided, the states of the signals are displayed

in the lower divided screen.
