8. TROUBLESHOOTING

B–64115EN/01

440

If manual handle operation cannot be performed, the probable causes

include the following:

D The servo is not activated.

D Manual pulse generators are not connected properly to the I/O module

with the manual pulse interface.

D The I/O module with the manual pulse interface is not allocated, or is

not allocated properly.

D A related input signal is not input due to a parameter setting error.

Check that the LED on the servo amplifier indicates “0”. If a number

other than “0” is indicated, the servo is not activated. In this state, even

JOG operation and automatic operation cannot be operated.

Check the servo–related parameters and the wiring.

(1)Cable failures (such as breaks)

Examine the cables for faults such as breaks and short–circuits,

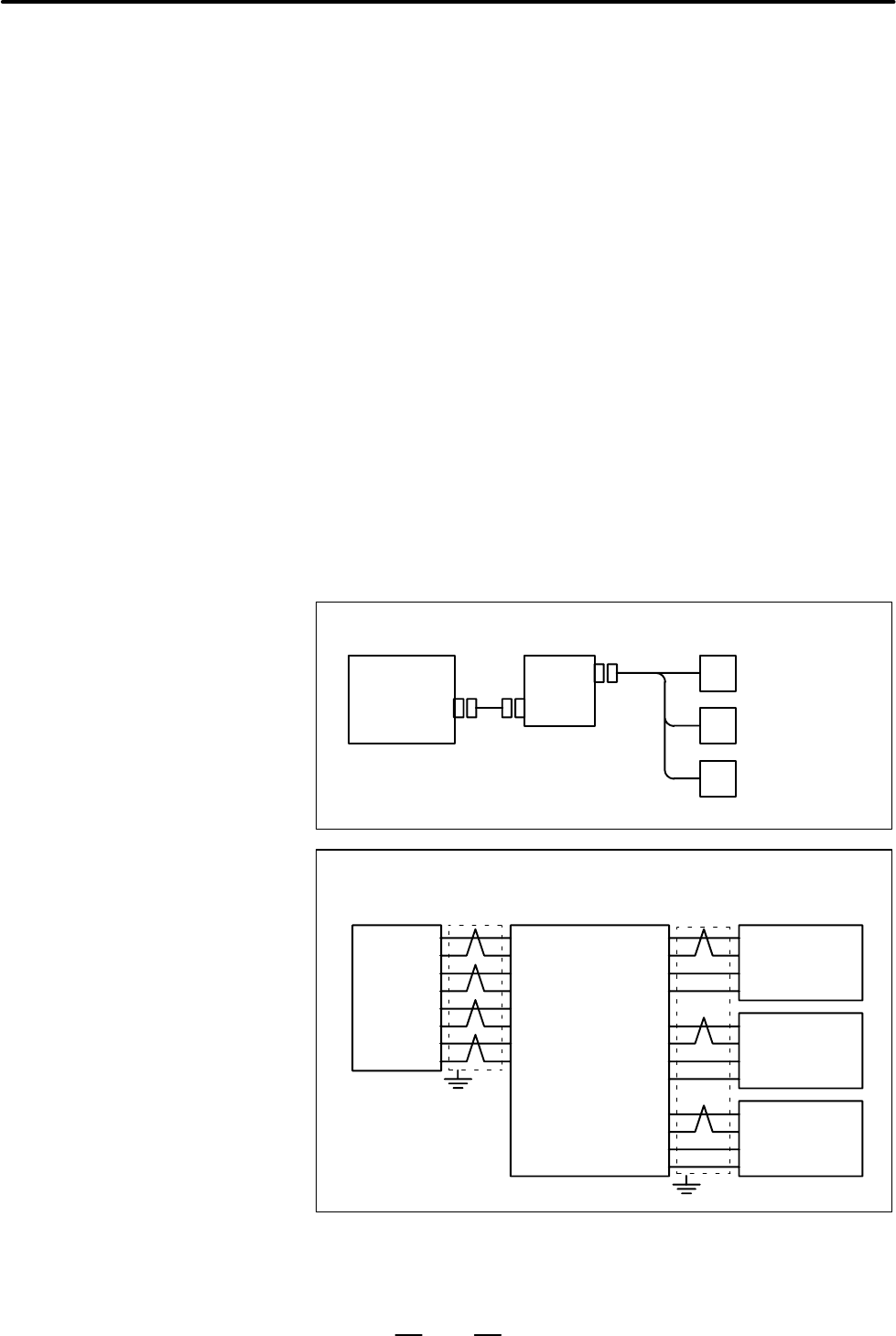

referring to the figure below.

JA3

IOLINK

JD1B

(JD1A)

CNC Operator’s panel I/O module etc.

First manual

pulse generator

Second manual

pulse generator

Third manual

pulse generator

JA3JD1B

JD1A

SIN(01) (03)SOUT HA1

HB1(02)

HA1(01)

SOUT(03)

*SIN(02) (04)*SOUT

(01)SIN

HB1

+5V(09)

0V(11)

*SOUT(04) (02)*SIN 0V

+5V

0V(12)

HA2HA2(03)

0V(14)

0V(13)

(11)0V

HB2

HB2(04)

+5V

0V(14)

+5V(18)

(12)0V

HA3

HA3(05)

HB3

+5V(20)

HB3(06)

(14)0V

(13)0V

+5V

0V(16)

Manual pulse

generators

CNC

(motherboard)

Shield Shield

Distributed I/O module

Operator’s panel I/O module

First

Second

Third

8.4

HANDLE OPERATION

CANNOT BE DONE

Causes and actions

1 The servo is not

activated

2 Checking the manual

pulse generators
