4. INTERFACE BETWEEN CNC AND PMC

B–64115EN/01

314

<4> Press a soft key and select a required screen.

[TIMER] : Timer screen

[COUNTR] : Counter screen

[KEEPRL] : Keep relay screen

[DATA] : Data table screen

<5> Press cursor key and move the cursor to a desired number.

<6> Input a numeric key and press INPUT key and data is input.

<7> After input, return PWE or the KEY4 signal to the previous state.

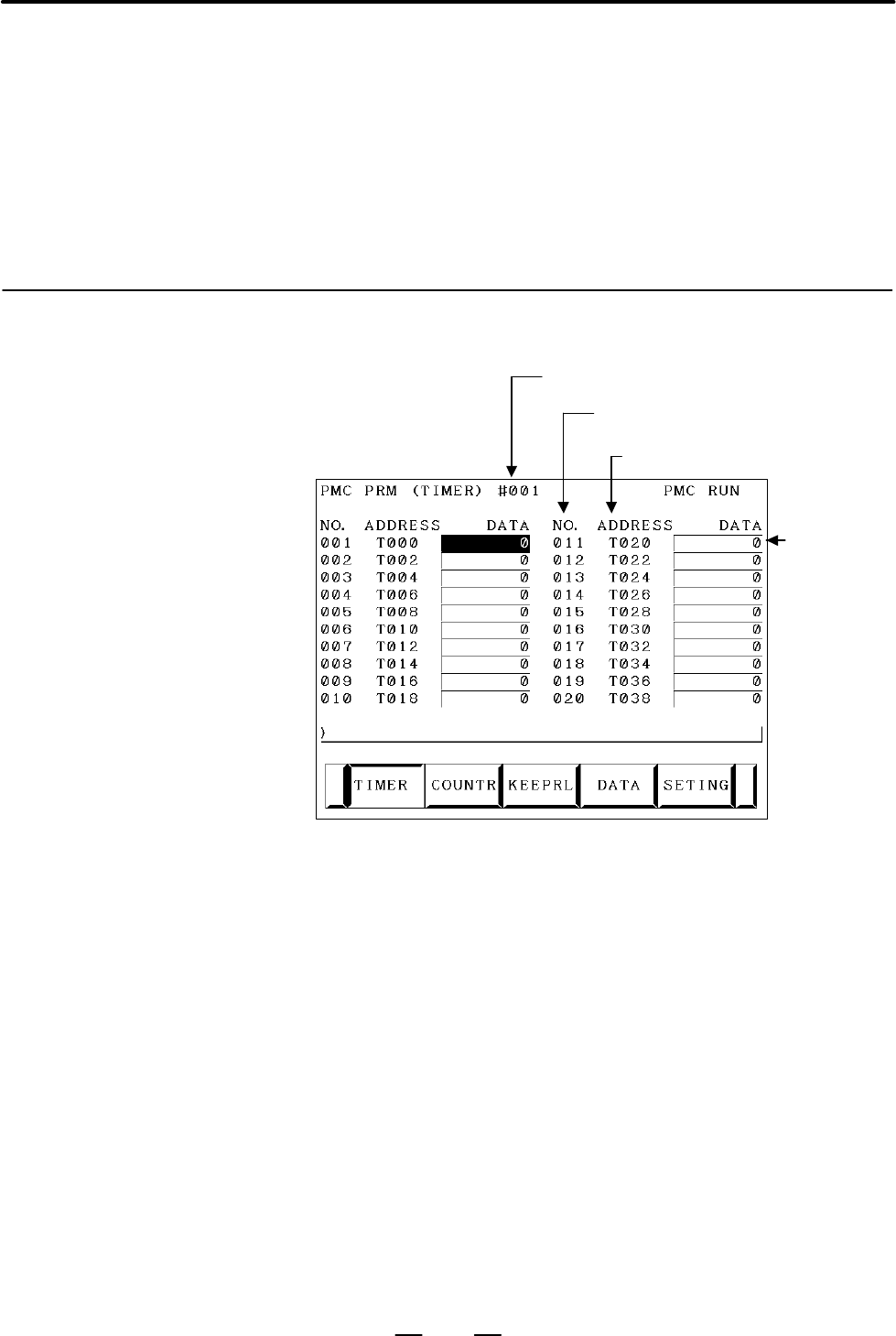

This screen is used for setting timer time of the Timer instruction (SUB

3).

Page number (screen is scrolled by page key)

Timer number specified with the Timer instruction

Address referenced by the sequence program

Set a timer

period in ms.

Timer set time : Timer No. 1–8 is max. 1572.8 sec and its accuracy is

48ms. Timer No. 9 to 250 is max. 262.1 sec and its

accuracy is 8ms.

4.4.4.2

TIMER screen
