4. INTERFACE BETWEEN CNC AND PMC

B–64115EN/01

300

(3)Searching for a signal [SEARCH]

<1> Press the [SEARCH] soft key.

<2> Search for a signal by using the keys indicated below.

D With

PAGE

, the display area can be changed.

D [TOPBTM] : The start/end of a ladder diagram is searched for.

D “Address” + [SEARCH] or “Signal name” + [SEARCH]:

A specified address or signal name is searched for.

D “net–number” + [SEARCH]:

A ladder is displayed from a specified net number.

D “Address” + [W–SRCH] or “Signal name” + [W–SRCH]:

The write coil is searched for a specified address or signal name.

D “function–instruction–number” + [F–SRCH] or

“function–instruction–name” + [F–SRCH]:

A specified function instruction is searched for.

D [PREV] : The previous search operation performed

successfully is repeated towards the start.

D [NEXT] : The previous search operation performed

successfully is repeated towards the end.

D [GLOBAL]/[LOCAL] : The search range is switched.

(4)Calling the function instruction data table display screen [TABLE]

The data table of a function instruction with a data table such as the

COD instruction (SUB7) and the CODB instruction (SUB27) can be

displayed.

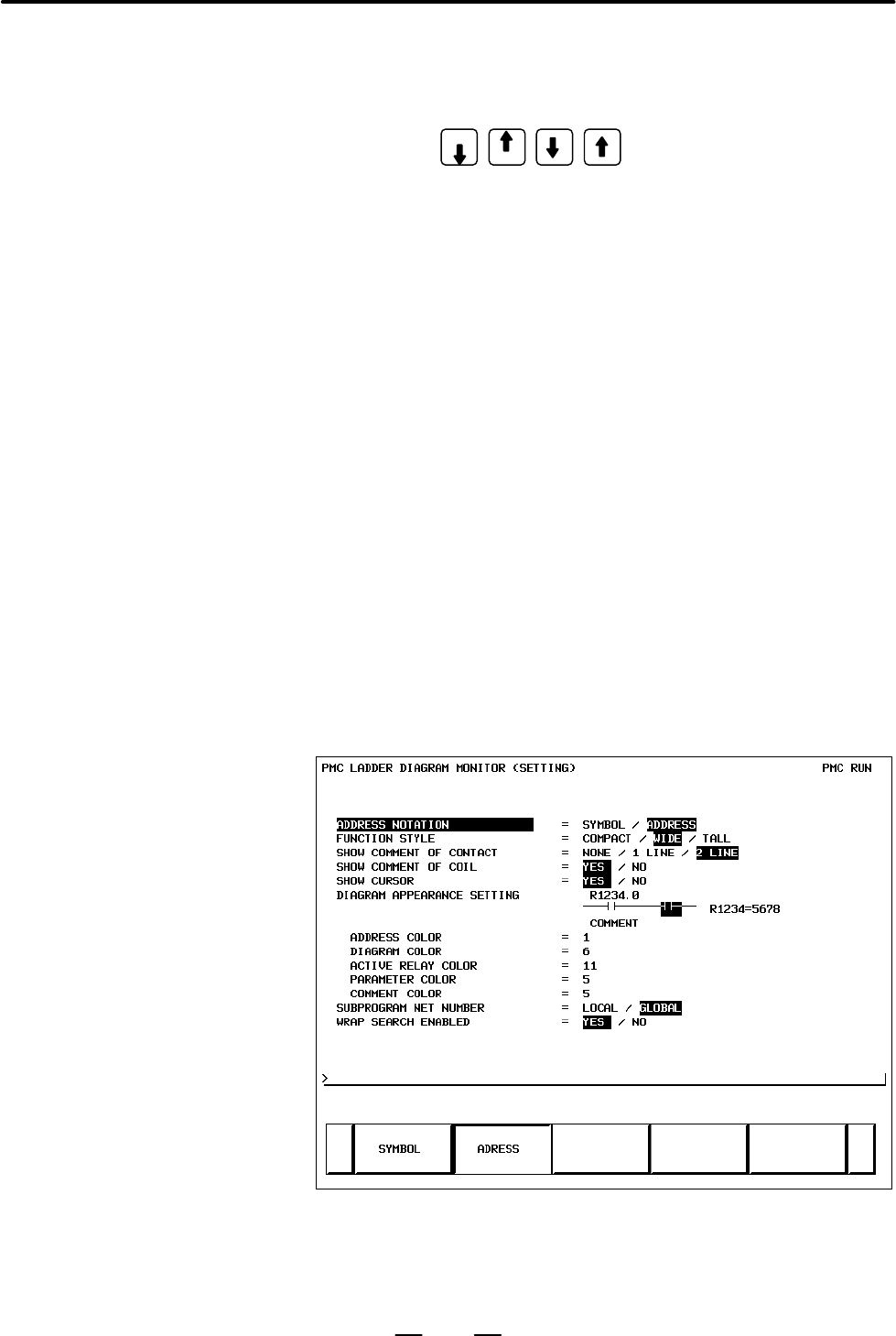

(5)Setting the screen [SETING]

The setting screen for the ladder diagram display screen can be called.

Various settings for ladder diagram display can be modified.
