0i/0i Mate - Model C Maintenance manual Page 275

Maintenance manual

Page of 683

/ 683

B–64115EN/01

3. INPUT AND OUTPUT OF DATA

251

If the I/O channel (parameter No. 20) is set to 4, files on the memory card

can be referenced and various types of data such as part programs,

parameters, and offset data can be input and output in text file format by

using the memory card interface of the control unit.

The major functions are listed below.

⋅ Displaying a directory of stored files

The files stored on a memory card can be displayed on the directory

screen.

⋅ Searching for a file

A search is made for a file on a memory card and, if found, it is

displayed on the directory screen.

⋅ Reading a file

Text–format files can be read from a memory card.

⋅ Writing a file

Data such as part programs can be stored to a memory card in text file

format.

⋅ Deleting a file

A file can be selected and deleted from a memory card.

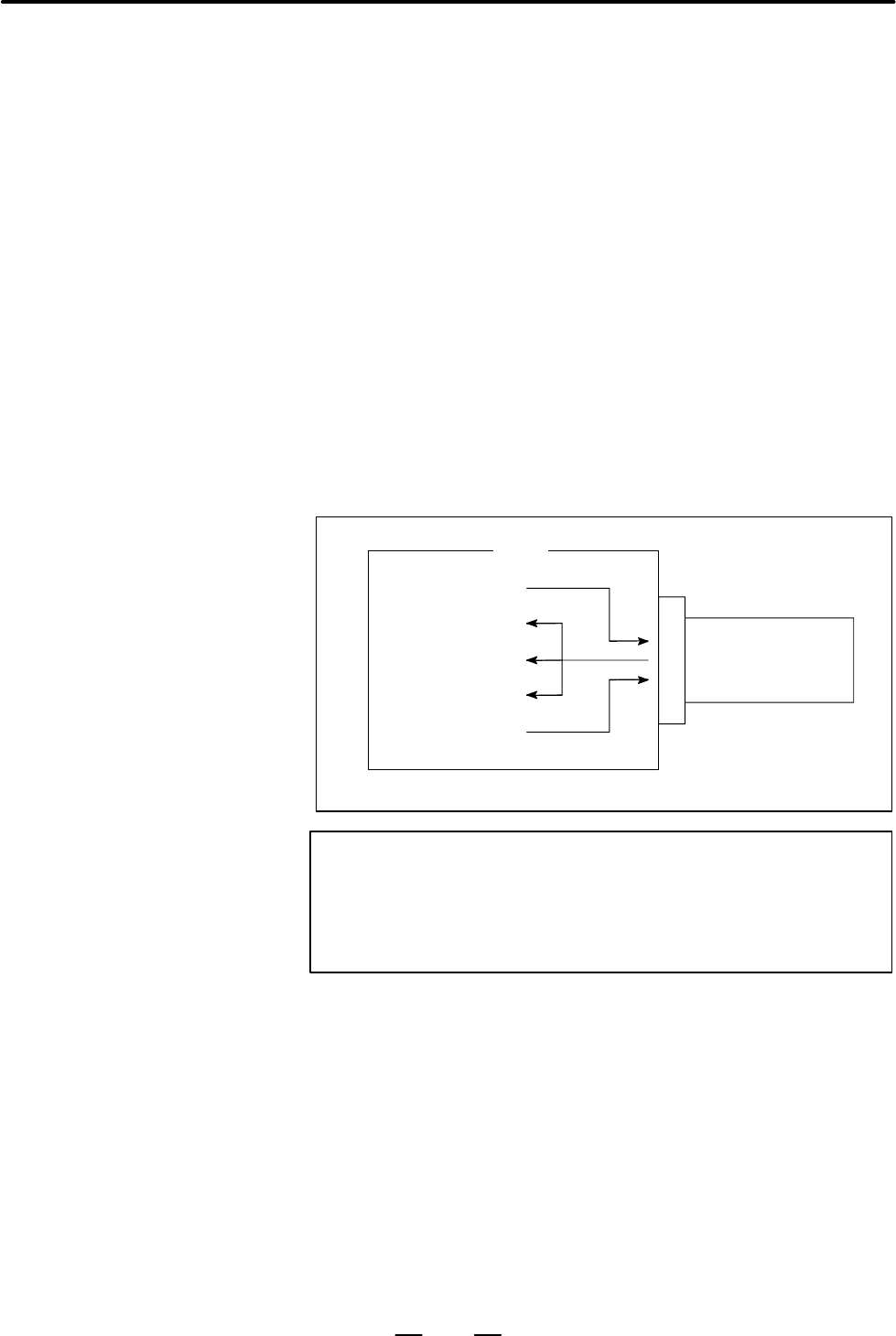

CNC

Writing a file

Reading a file

Displaying a directory

Searching for a file

Deleting a file

Memory card

NOTE

When using the program stored on a memory card to make

a subprogram call for RMT mode operation (DNC operation)

or the M198 command, use the special retainer for securing

a memory card to the CNC.

If an attempt is made to write parameters or NC programs to an existing

file on the memory card, the OWM parameter (bit 6 of parameter No.

0138) can be used to specify whether to display an overwriting

confirmation message. If OWM = 1, overwriting is done with no

confirmation message displayed.

When you press the [EXEC] soft key after the [PUNCH] soft key, the

confirmation message shown below appears on the lower left corner of the

screen, if the memory card already contains a file by the same name as

specified.

3.4

DATA INPUT/OUTPUT

USING A MEMORY

CARD
