5.CONNECTION TO CNC PERIPHERALS B-63943EN/02

- 96 -

5.5 Linking The EMBEDDED Ethernet Interface

CAUTION

Before attaching or removing cables, power off the

CNC main unit, and confirm that the power is off.

Ask the respective manufacturers for explanations

about how to build a network and about conditions

for using units (such as a media converter, hub,

transceiver, and cable) other than the CNC unit.

When installing network cables, exercise sufficient

caution so that the network will not be affected by

any noise source. Electrically separate the

network wiring sufficiently from noise sources like

motors and their power lines. Also, ground each

unit as required. If the grounding impedance is

high, it may cause trouble in communication.

Once the equipment is installed, conduct

communication tests to verify normal operation

before starting actual use of the equipment.

FANUC is not liable to any damage related to

trouble arising from any unit other than the CNC

unit.

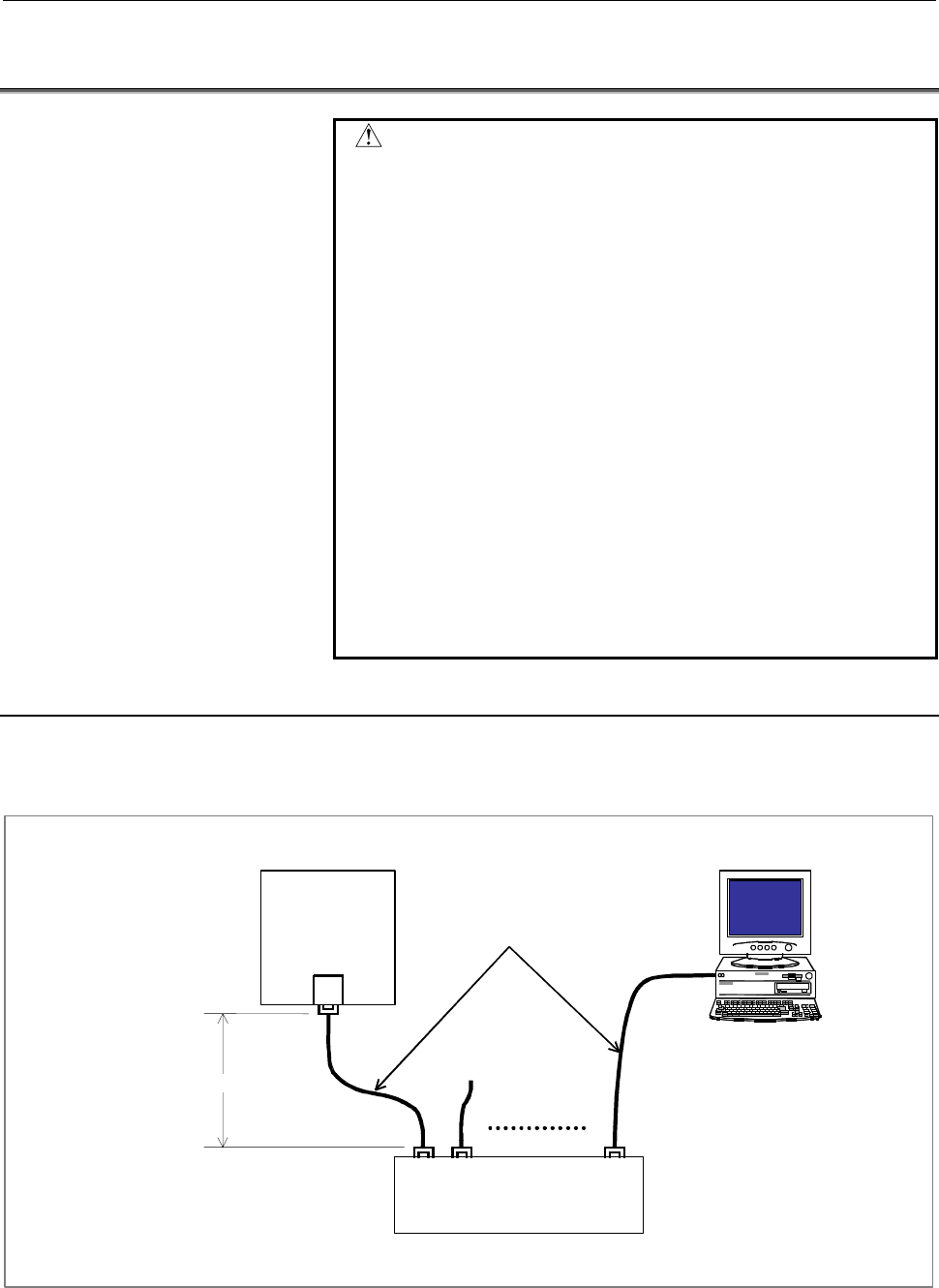

5.5.1 Connection to the Ethernet Interface

The 10BASE-T and 100BASE-TX interfaces are available. A hub

(line concentrator) is used to connect the CNC unit to a system. A

typical connection example is shown below.

CNC unit

Twisted-pair cable

HUB

(line concentrator)

Max. 100m

Shield
