B-63943EN/02 7.SERVO INTERFACE

- 131 -

Time requirements

Requirements for the signals at the input pins of input connectors

JF101 to JF108. The signals for these connectors are differential

input signals with A and B phases. An important factor is time TD

from point A, when the potential difference between PCA and *PCA

exceeds 0.5V, to point B, when the potential difference between PCB

and *PCB becomes lower than 0.5V. The minimum value of TD is

0.15 µs. The period and pulse width of the signals must be long

enough to satisfy the above requirements.

Input voltage requirements

The voltage of the A and B phase signals must meet the following

requirements:

High level: 2.4 V or more

Low level: 0.8 V or less

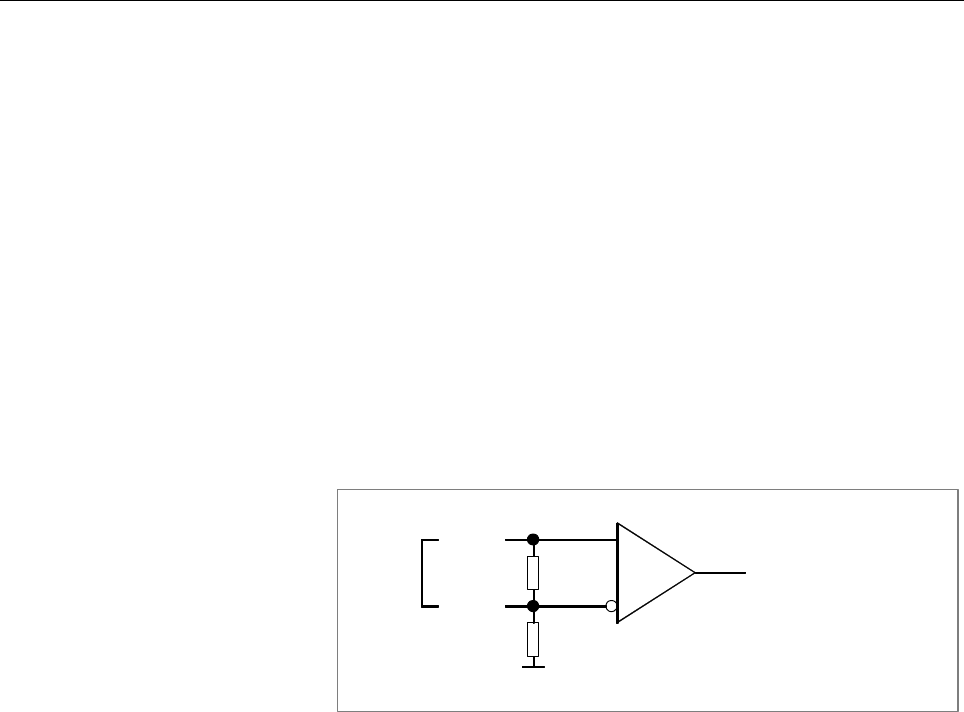

Receiver circuit

-phase

signal

PCA

*PCA

110

Ω

560

Ω

The same circuit is used for B-phase

signals (PCB and *PCB)

Rotation directions of a servo motor and separate rotary encoder

If a separate rotary encoder rotates in a direction opposite to the

direction of servo motor rotation when the servo motor is rotating, the

connection of the feedback cable from the separate rotary encoder

must be changed as follows:

(1) Exchange signal PCA with signal PCB.

(2) Exchange signal *PCA with signal *PCB.
