B-63943EN/02 8.CONNECTION TO FANUC I/O Link

- 221 -

NOTE

When the DO signal is in the ON state in the

sequence, the ON or OFF state of the DOCOM pin

determines the state of the signal, as indicated by

the dotted lines in the above figure. Do not turn

off the +24 V supply, provided by the CPD1 to the

I/O module, during the operation. Turning off the

+24 V supply would cause a CNC communication

alarm. When turning on the power, the +24 V

supply to the I/O module must be turned on before

or at the same time as the power supply to the

CNC. When turning off the power, the +24 V

supply to the I/O module must be turned off after or

at the same time as the power supply to the CNC.

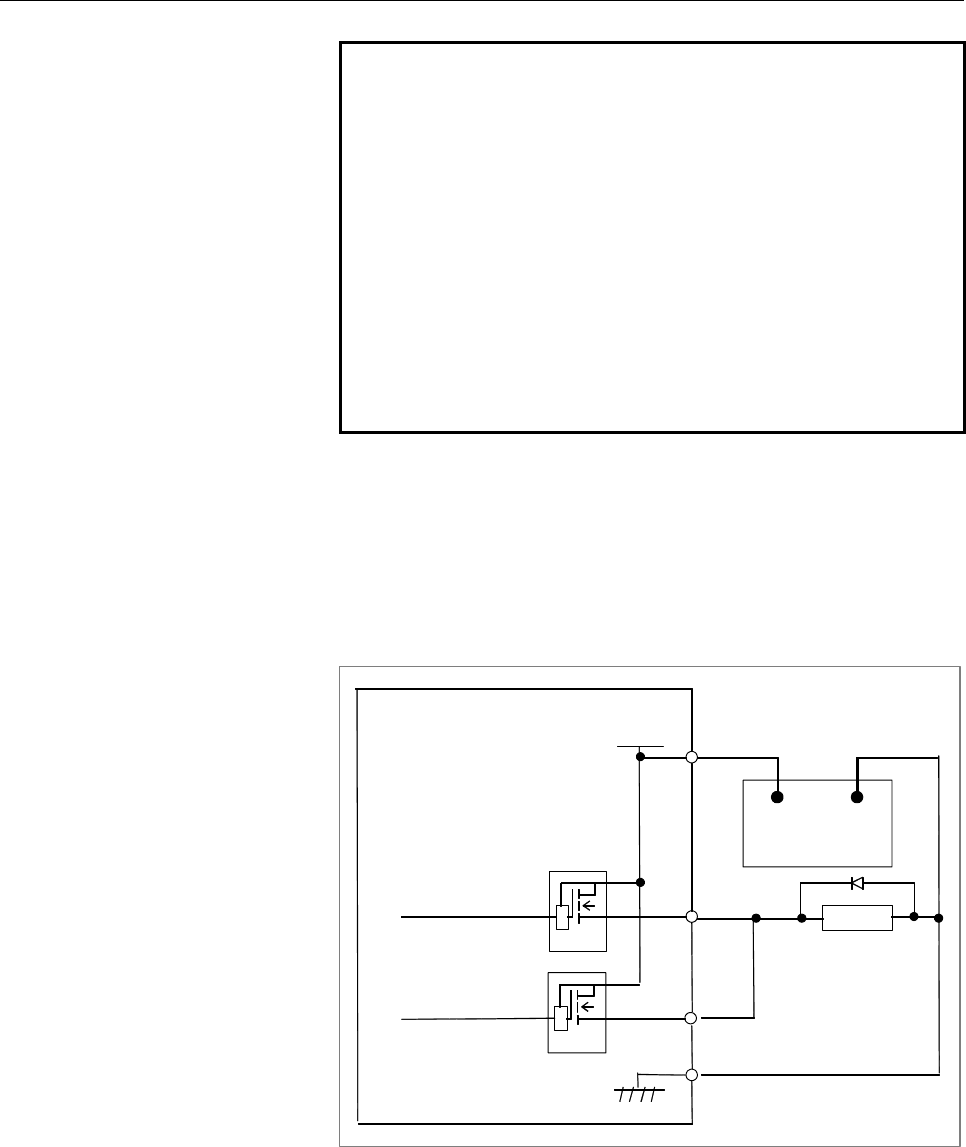

Parallel DO (output signal) connection

The DO load current can be doubled by connecting two DO points in

parallel and turning them on and off simultaneously in sequence, as

shown in the figure below. The maximum load current per DI point

is 200 mA. Connecting two DO points in parallel and turning them

on at the same time produces a current of 400 mA. Note that,

however, when two DO points are connected in parallel, the leakage

current also doubles while they are off (max. 40 µA).

DOCOM

CE53(A25), (B25)

CE54(B24), (A25), (B25)

+24 stabilized

power supply

+24V 0V

Relay

DO (output signal) alarm detection

The DO driver of the I/O module is capable of detecting an

overcurrent and measuring its own temperature. If an accident, such

as connecting the cable to ground, causes an abnormal increase in the

load current or in the driver temperature, a protection circuit, which is

provided for each DO driver (1 byte), is activated which keeps the DO

signal for the relevant 1 byte in the OFF state until the cause of the

problem is eliminated. Even if this occurs, the CNC and the I/O
