B-63943EN/02 8.CONNECTION TO FANUC I/O Link

- 271 -

8.9.8 Key Symbol Indication on Machine Operators Panel

8.9.8.1 Meaning of key symbols

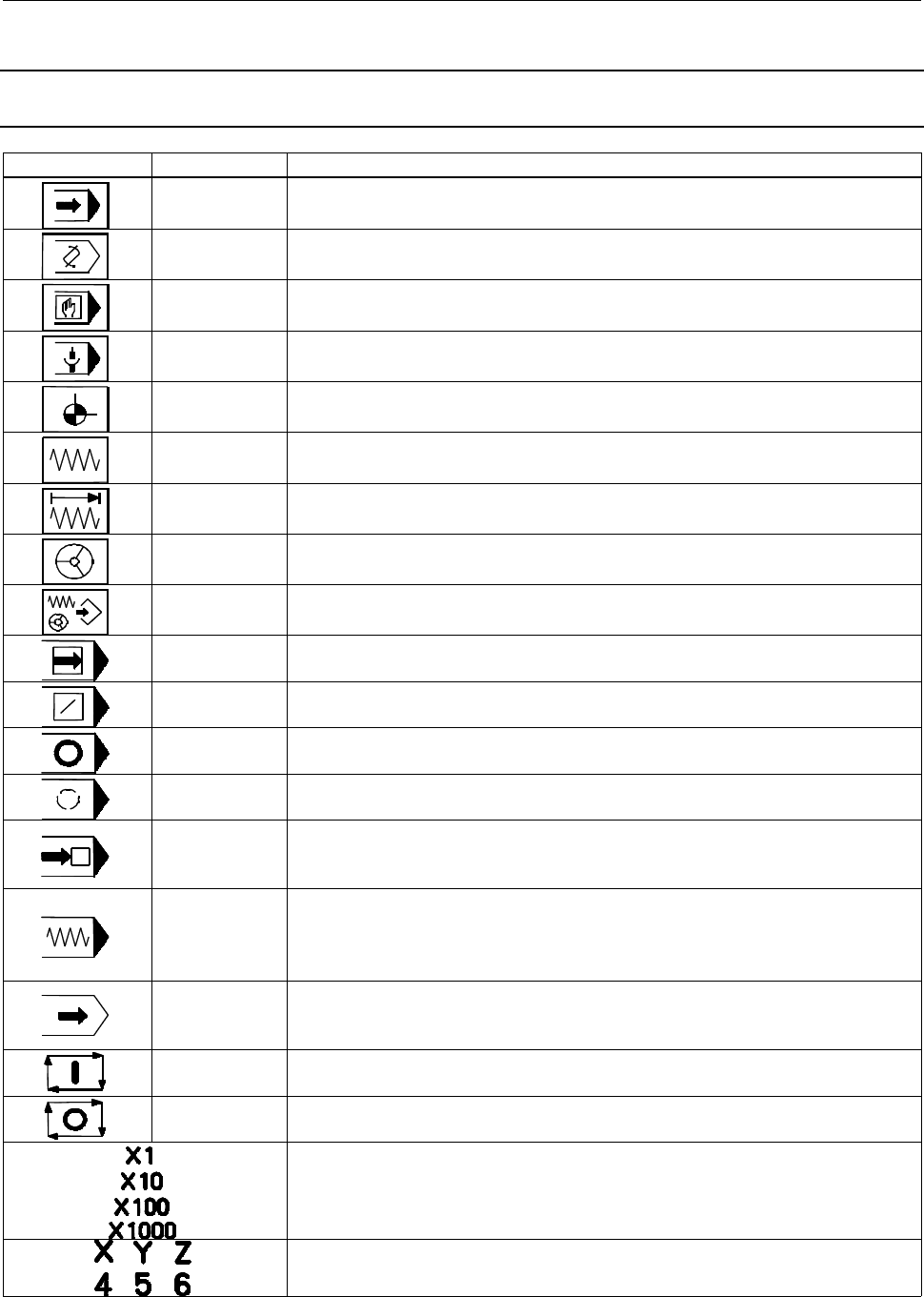

Symbol English Meaning of key

AUTO AUTO mode selection signal; Sets automatic operation mode.

EDIT EDIT mode selection signal; Sets program edit operation mode.

MDI MDI mode selection; Sets MDI mode.

REMOTE DNC operation mode; Sets DNC operation mode.

REF

RETURN

Reference position return mode selection; Sets reference position return mode.

JOG JOG feed mode selection; Sets jog feed mode.

INC

JOG

Step feed mode selection; Sets step feed mode.

HANDLE Manual handle feed mode selection; Sets manual handle feed mode.

TEACH

Teach-in jog (reach-in handle) mode selection signal; Sets teach-in jog (teach-in

handle) mode.

SINGLE

BLOCK

Single block signal; Executes program one by one. This key is used to check

a program.

BLOCK

DELETE

Block delete; Skips the execution of the blocks d ending with the end of block (;)

when this button is pressed during automatic operation.

PRG

STOP

Program stop(output only); Turns on the LED on the button when automatic

operation is stopped by M00 specified in the program.

OPT

STOP

Optional stop; Stops automatic operation after execution of the block of a

program where M01 is specified in the program.

RESTART

Program restart; A program may be restart at a block by specifying the sequence

number of the block, after automatic operation is stopped because of a broken

tool or for holidays.

DRY

RUN

Dryrun; Sets the axis feedrate to the jog feedrate instead of a programmed

feedrate when automatic operation is performed by setting this button to on. This

function is used to check only the movement of the tool when no workpiece is

mounted.

LOCK

Machine lock; Updates only position display on the screen without making any

axis movement, when automatic operation is performed by setting this button to

on. This function is used to check a program.

CYCLE

START

Cycle start; Start automatic operation.

CYCLE

STOP

Cycle stop; Stops automatic operation.

Manual handle feed magnification:

Magnification for manual handle feed.

Magnified by 1, 10, 100, 1000.

Manual feed axis selection; Axes are selected, when these buttons are set to on in

the jog feed mode or step feed mode.
