30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 343

Connection manual (Hardware)
B-63943EN/02 13.PANEL i
- 325 -

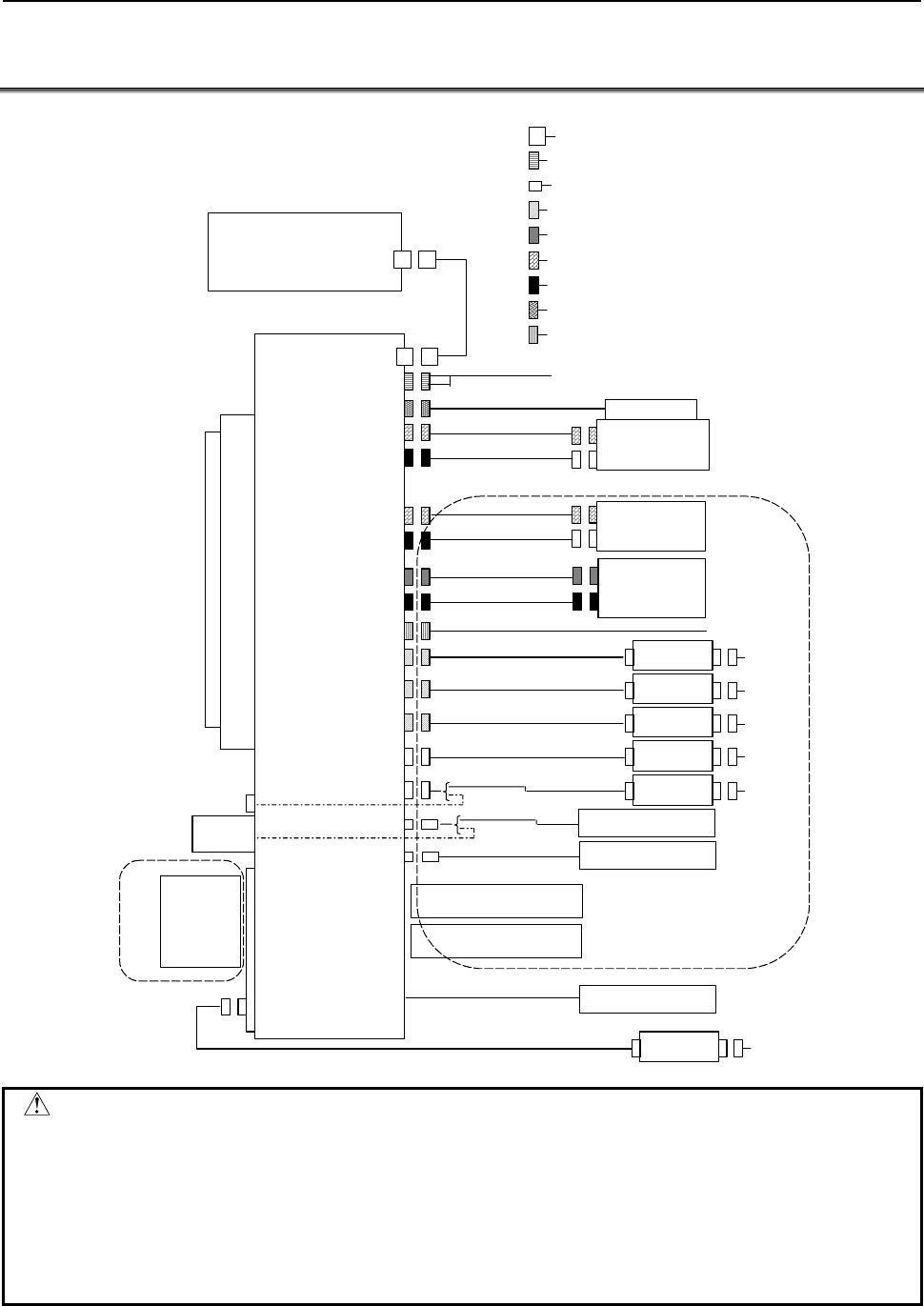

13.3 TOTAL CONNECTION DIAGRAMS
Front
USB
HSSB(COP21)
+24V INPUT (CPD14)
HDD FAN (CPE11C)
HDD 1 (CA81A)
HDD PWR 1 (CPD11B)
HDD 2 (CA81B)
HDD PWR 2 (CPD11C)
FDD (CD34)
FDD POWER (CPD11A)
ETHERNET (CD38U)
RS232-1 (JD33)
RS232-2 (JD46)
CENTRO (JD9)
USB1 (CD41L)
USB2 (CD41M)
KEY BOARD (CD32L)
MOUSE (CD32U)
PCI extension slot 1
(CA78A)
PCI extension slot 2
(CA78B)
MDI (JA61)
USB3(CD46L)
PCMCIA
card
Full keyboard
USB device
USB device
CD-ROM drive
Touch panel (option)
Color LCD panel
PCMCIA cardslot
CNC control unit
PANEL
i
Power supply (+24VDC)
: Optical link Module & Cable
: AMP(Dynamic)
: AMP(mini-DIN6pins)
: HONDA TSUSHIN (PCR 20pins)
: HIROSE DENKI (Flat Cable34pins)
: HIROSE DENKI (Flat Cable40pins)
: AMP(EI Series 4pins)
: molex (5046-NA 3pin)
: Ethernet (RJ-45)
Power
suppl
y
Power
su
pp
l
y
Printer
Power
su
pp
l
y
Floppy disk drive
PCI extension board
PCI extension board
3.5" HDD unit
FAN unit
I/O device
Power
su
pp
l
y
Ethernet
Peripheral
device
(Caution 1)
Mouse
I/O device
Power
su
pp
l
y
(Caution 2)
Peripheral
device
(Caution 1)
Master printed circuit board (300
i
)
or HSSB option board
HSSB(COP21)
USB device
Power
supply
MDI unit
Front key
board
(Caution 3)
CAUTION
1 Some peripheral devices are not suitable for being connected to the PANEL i for
environmental durability reasons, and others are not suitable for use during
machine operation. So, carefully read the operator's manuals of the peripheral
devices to be used.
2 When a touch panel is provided, the first serial port channel cannot be used.
3 The front USB connector and front keyboard are provided only on the PANEL i for
the automobile manufacturer specification.
