B-63943EN/02 7.SERVO INTERFACE

- 137 -

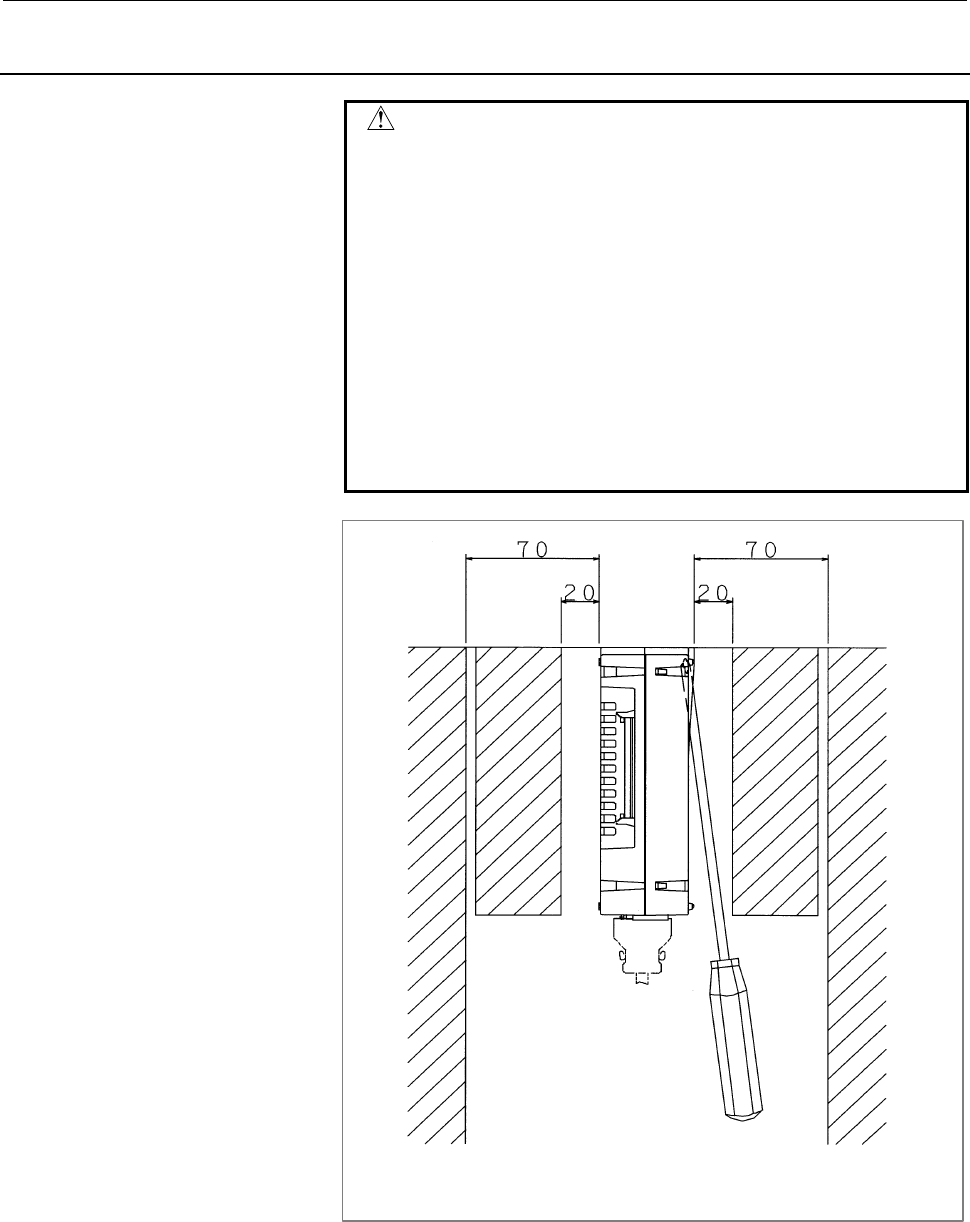

7.2.10 Notes on Installing a Separate Detector Interface Unit

CAUTION

To install/remove the unit, a screwdriver must be

inserted obliquely. So, sufficient access

clearances are required on both sides of the unit.

As a guideline, if the front of an adjacent unit

appears flush with the unit or slightly set back,

allow a clearance of about 20 mm between the unit

and the adjacent unit. If the front of an adjacent

unit protrudes beyond the front of the unit, allow a

clearance of about 70 mm between the unit and

the adjacent unit. Also, when installing the unit

near a side of the cabinet, allow a clearance of

about 70 mm between the unit and the side of the

cabinet.

ccess clearance near a separate detector interface unit
