30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 214

Connection manual (Hardware)
8.CONNECTION TO FANUC I/O Link B-63943EN/02
- 196 -

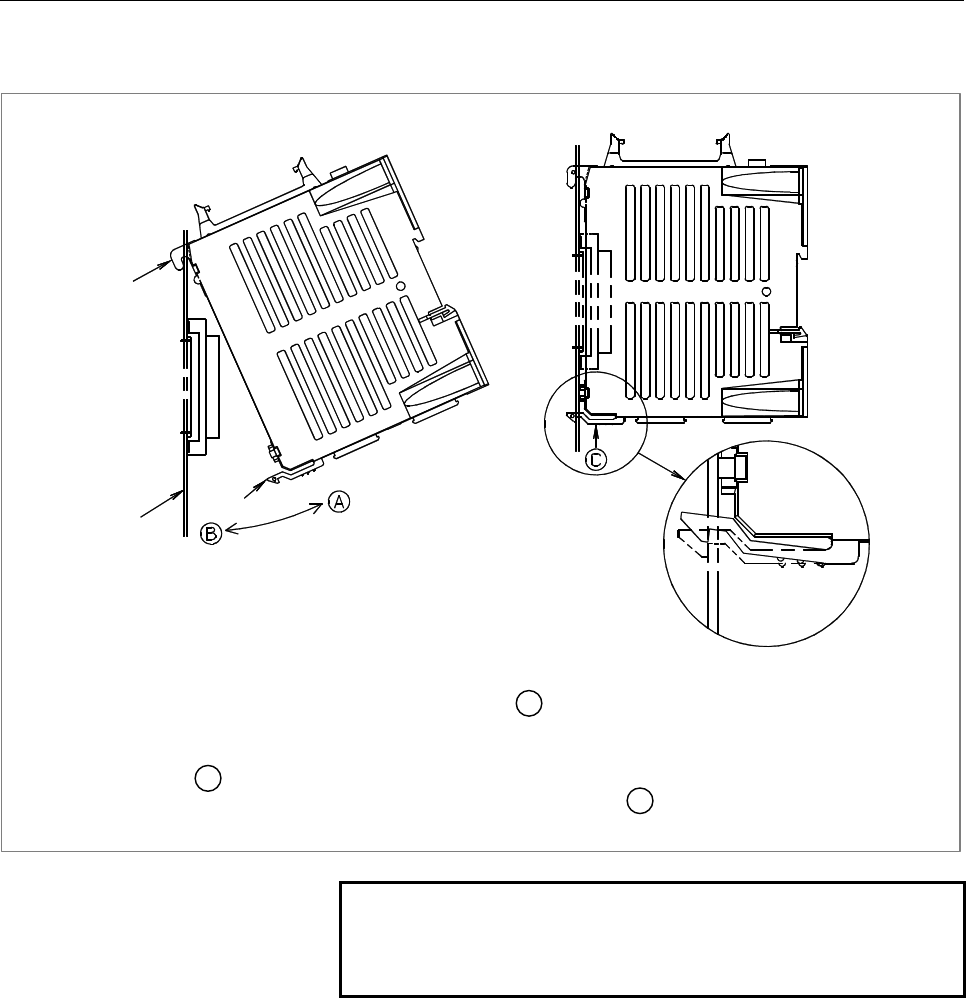

When connecting a connector panel printed circuit board directly
(mounting and dismounting a module)
Mounting the module
1. Insert the hook of the module into the square hole located at the upper part of the connector panel printed circuit board.
2. Using the hook as a fulcrum, push the module in the direction of B , and attach the module's connector to the connector on
the printed circuit board.
3. Push the stopper into the lower hole of the printed circuit board until it clicks into place.
Dismounting the module
1. Press the stopper C upward.
2. Using the hook as a fulcrum, pull the lower part of the module in the direction of A .
Hook
Stopper
connector panel
printed circuit board
NOTE
When mounting and dismounting a module, hold
the module by its top and bottom surfaces. Avoid
applying force to the sides where there are slits.
