B-63943EN/02 APPENDIX D.OPTICAL FIBER CABLE

- 463 -

Reinforcing cover of external cable or cord

binding portion of internal cord type cable

Optical connecto

Optical fiber cord

Bending radius of 25 mm or more

(Make the bending radius as large

as possible.)

Bending radius of 50 mm or more (for reinforcing cover)

Bending radius of 25 mm or more (for cord binding portion)

(Make the bending radius as large as possible.)

Cable clamp

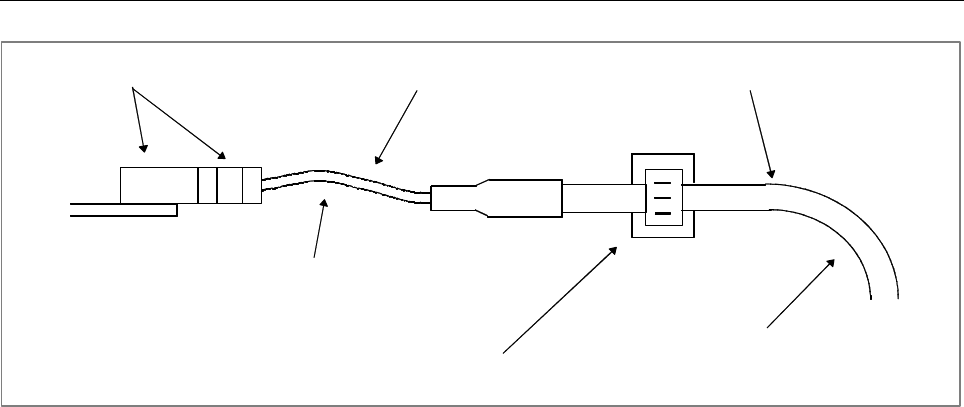

Fig. D(e) Fixing the cable with a clamp

• Any superfluous portion of the cable may be wound into a

loops. Should this prove necessary, make sure the

diameter of each loop is at least 150 mm (for an external

cable) or at least 100 mm (for an internal cord type cable).

Winding the cable into smaller loops may produce sharp

curves that exceed the specified bending radius limit

without the user being aware. Such bending can result in a

greater transmission loss, ultimately leading to a

communication failure.

• When using a nylon band (cable tie) as a cable clamp,

follow the instructions given below. Also, take care not to

apply a bending force to one particular part of the cable

when fixing it with a clamp. Failing to clamp the cable

correctly may cut or damage it.

(External cable)

Do not clamp the uncovered portion of the cable with a

nylon band. When clamping the cable by the

reinforcing cover, the clamping force is not an

important factor to consider. However, ensure that

the clamping force is as small as possible to ensure that

the reinforcing cover is not deformed by the clamping.

If possible, the clamping force should be 5 kg or less.

(Internal cord type cable)

Lightly clamp the optical cable with a nylon band so

that the cable shield is not deformed. If possible, the

clamping force should be 1 or 2 kg (make sure that no

force is applied to the cable). Due care is required

when clamping the internal cord type cable because its

cable shield is weaker than the reinforcing cover of the

external cable.
